Description

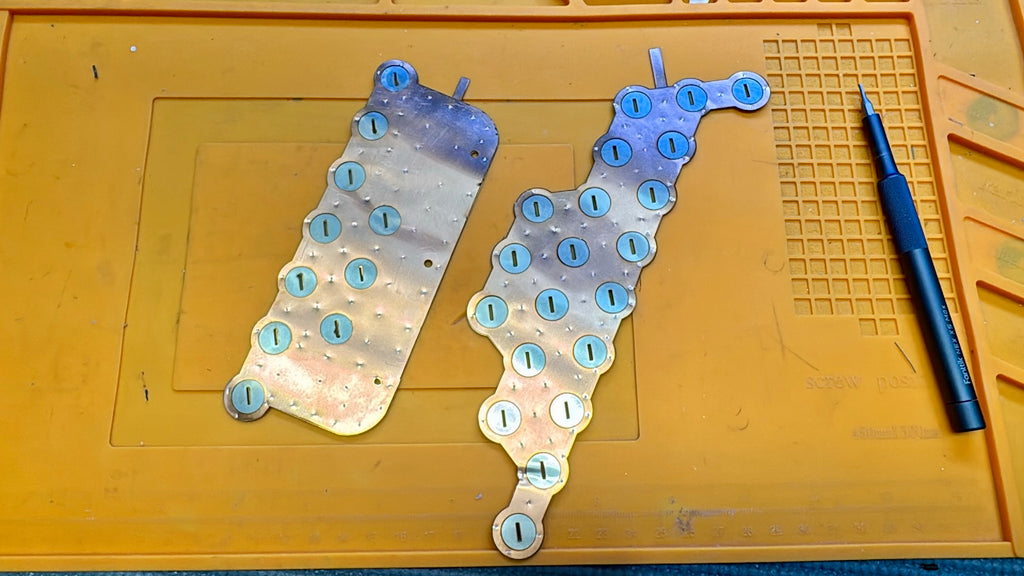

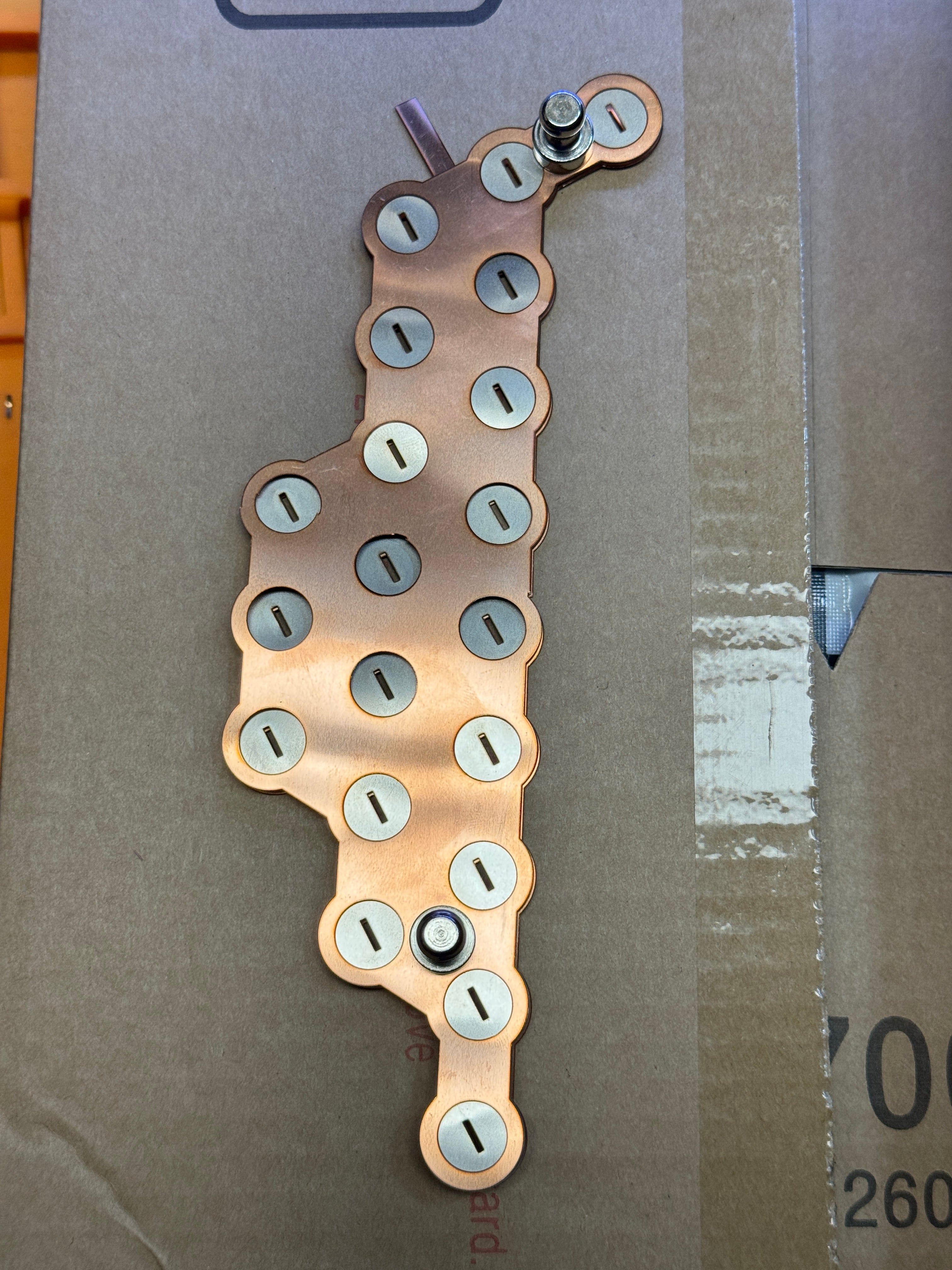

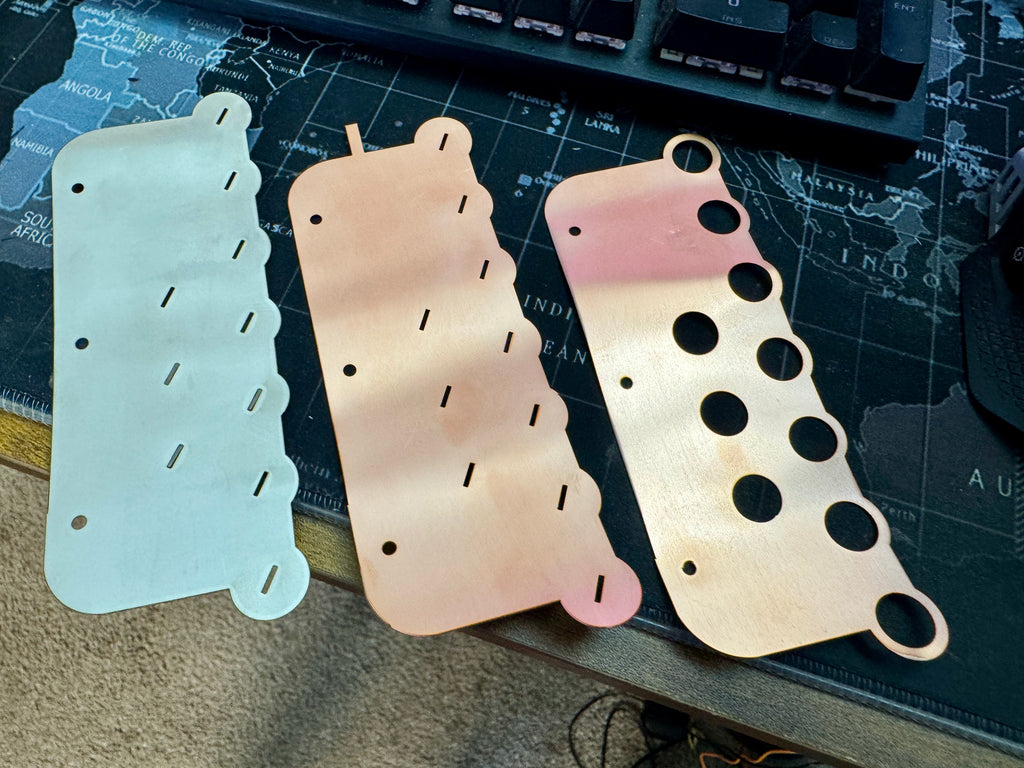

This busbar is a custom DIY500AMP.COM design built for a client project. It uses a high-performance triple-layer structure of:
-
0.2 mm pure copper
-
0.2 mm pure nickel
-
0.2 mm pure copper
Each unit is individually designed, laser cut, and precision welded by DIY500AMP, and ships ready to install.
Design and Fitment
To ensure perfect compatibility, we also created a custom battery tray design to match the client’s existing tray. The design was shared with the client for review and fit confirmation before production to guarantee proper sizing.
Specifications
-
Approx size: 192 mm × 133 mm
-
Estimated ampacity: up to 300 A
-
Structure: Copper–Nickel–Copper sandwich for low resistance and durability
Production Details
-
Material cost: $37 (Copper $17 + Nickel $20)
-
Labor: $75
-
Total production cost: $112
Included
-
Custom design work
-
Battery tray modeling and fit validation
-
Laser cutting of all layers
-
Welding and final assembly, ready to install
