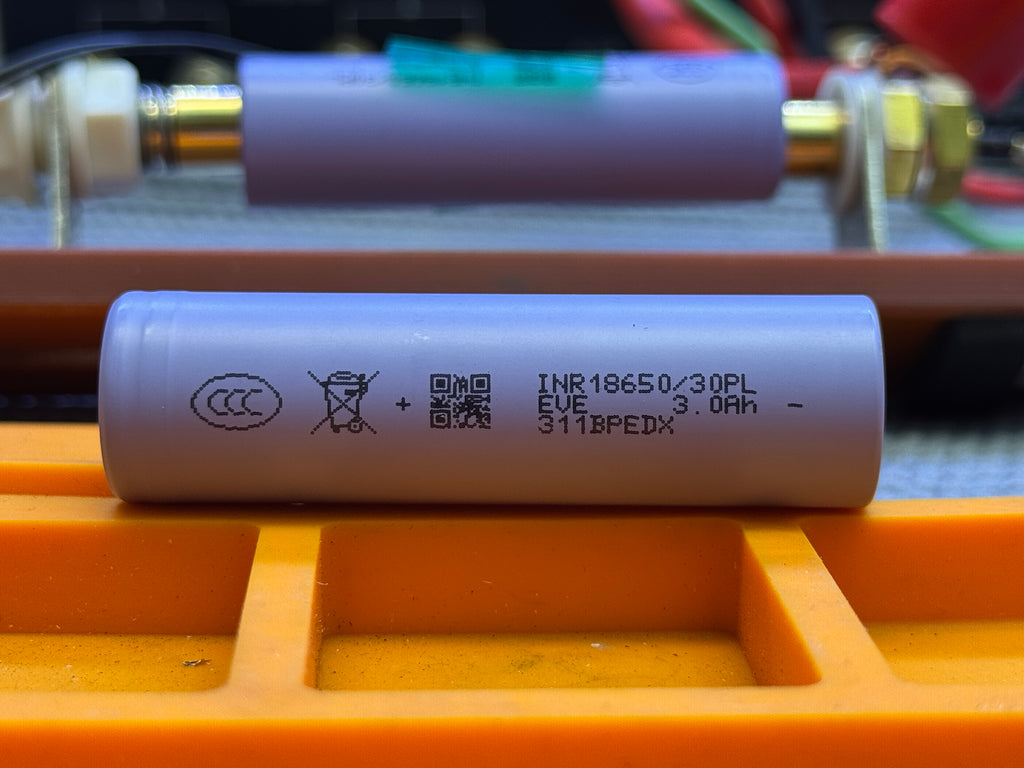

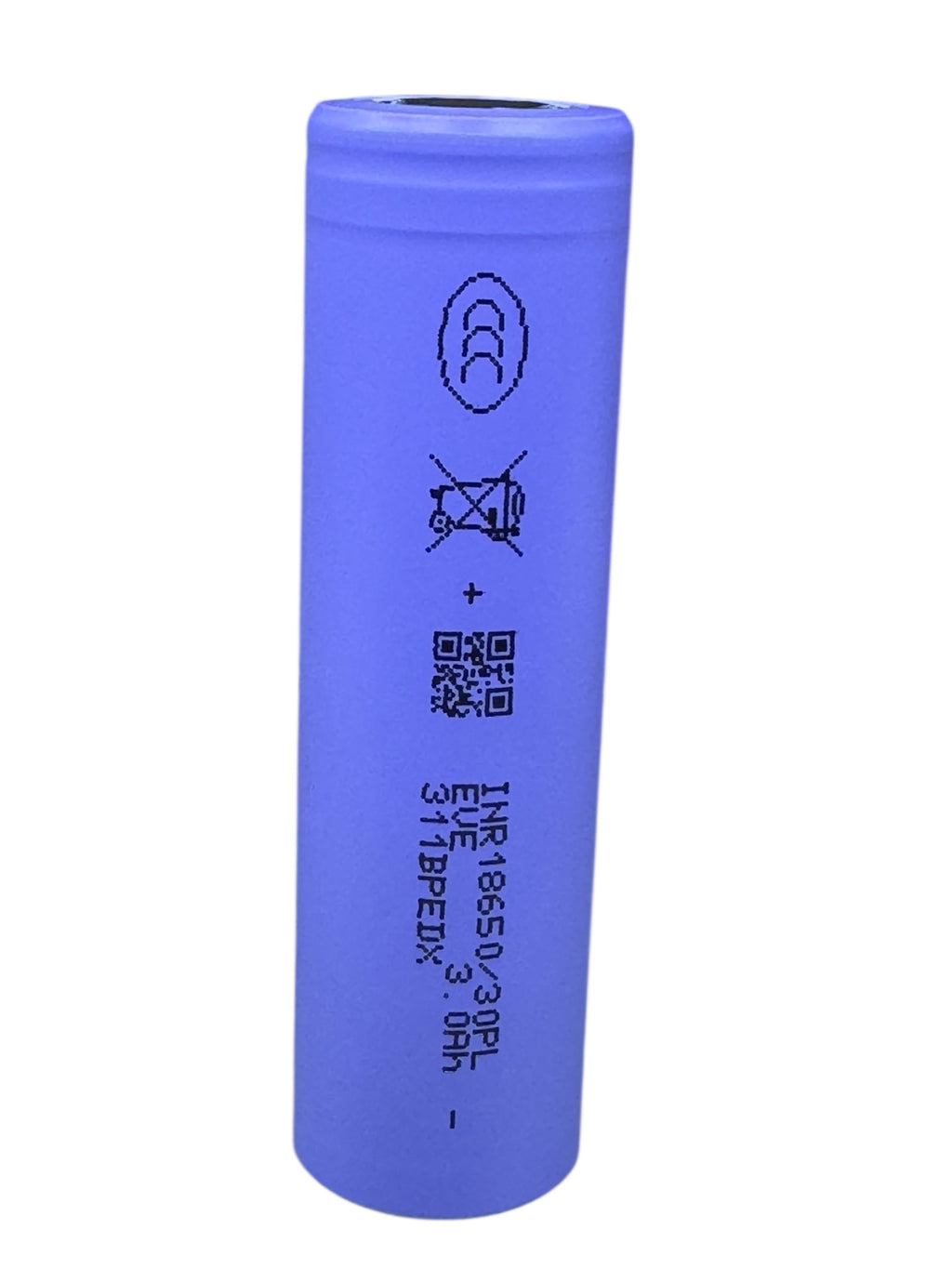

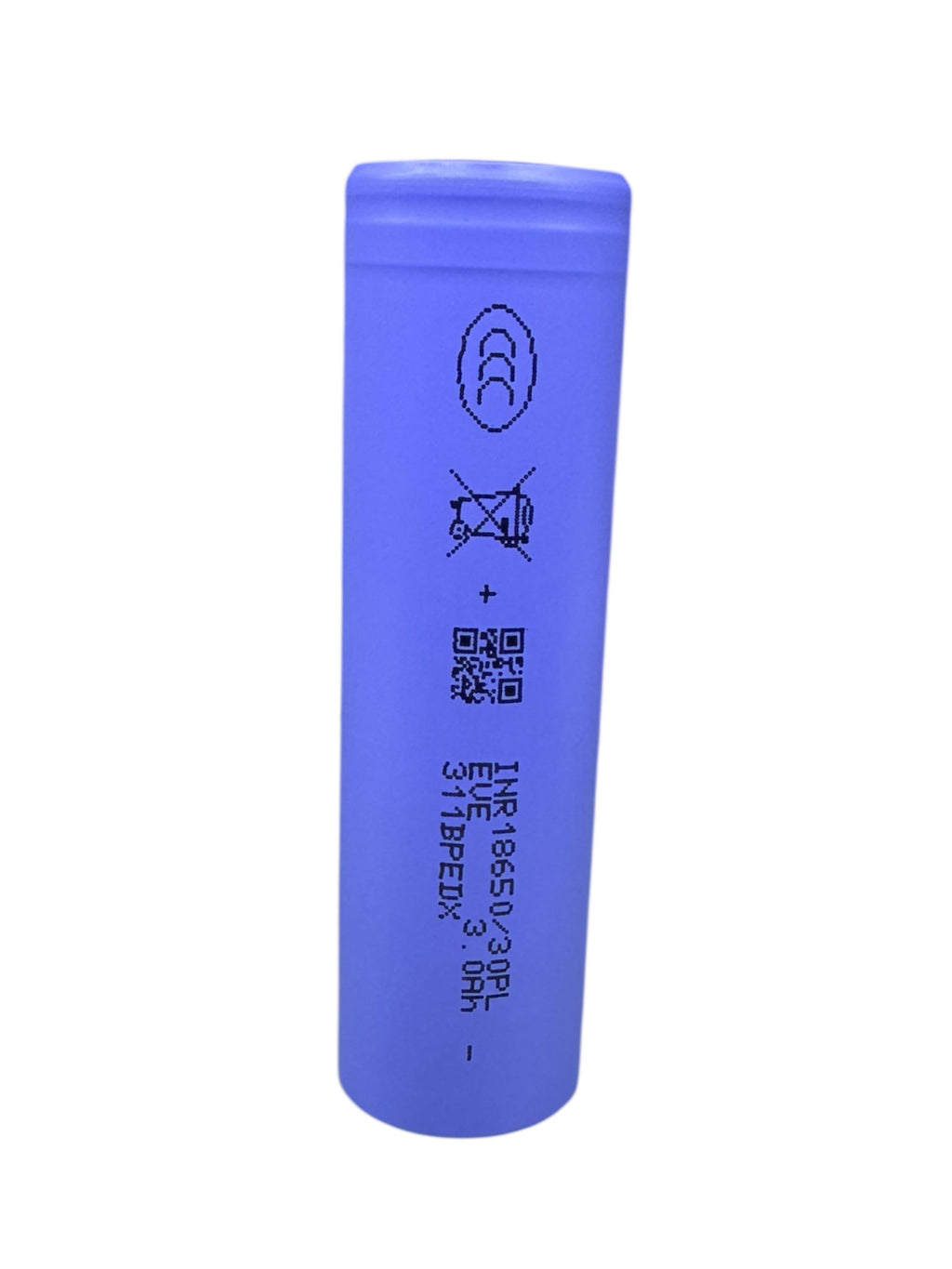

EVE 30PL 18650 Battery Cell – 3000mAh 60A
ETA Arrival: January 2026
Now available in the USA: the official EVE INR18650/30PL high-drain lithium-ion battery. Compact yet powerful, this 18650-format cell delivers up to 60A discharge (with temperature cutoff) while maintaining a solid 3000mAh capacity. Engineered for efficiency and reliability, the 30PL offers low internal resistance and high thermal stability, making it an ideal choice for demanding builds where space is limited but performance is critical.
DIY500AMP.COM is among the first U.S. stores offering the EVE 30PL.
This cell is perfect for high-performance e-bikes, scooters, drones, battery packs, and other compact high-current projects.
Specifications
| Model | INR18650-30PL |
|---|---|
| Cell Type | 18650 Lithium-ion Rechargeable |
| Nominal Voltage | 3.65V |
| Nominal Capacity | 3000mAh |
| Standard Charge | 1.5A (0.5C), CC/CV to 4.20V ±0.05V, 0.1A cutoff |
| Maximum Charge | 9.0A (3C), CC/CV to 4.20V ±0.05V, 0.1A cutoff |
| Standard Discharge | 0.6A (0.2C) to 2.50V cutoff |
| Max Continuous Discharge | 60A (20C), cutoff at 75–80°C |
| Voltage Range | 2.50V – 4.20V |
| Weight | 45.0 ± 2.0 g |
| Diameter | 18.35 ± 0.10 mm |
| Height | 65.15 ± 0.10 mm |
| Internal Resistance | ≤6 mΩ (AC 1kHz) |
| Operating Temperature | Charge: 0°C to 60°C / Discharge: -20°C to 80°C |
| Cycle Life | ≥60% capacity after 500 cycles (30A discharge) |
| Datasheet | [EVE 30PL 18650 3000mAh 60A Battery Datasheet] |
Why Choose the EVE 30PL?
-
Official product direct from EVE Energy Co., Ltd.
-
High discharge up to 60A with compact 18650 form factor
-
Low internal resistance (≤6 mΩ) for reduced heat generation
-
Reliable cycle life under high-current stress
-
Excellent cold and high-temperature performance
🔍 EVE 30PL vs. Samsung 25R – Key Performance Comparison
| Parameter | EVE INR18650-30PL | Samsung INR18650-25R | Advantage |
|---|---|---|---|
| Continuous Current | 60A (20C, temp cutoff) | 20A (6.7C) | 200% Higher Power |
| Capacity | 3000mAh | 2500mAh | 20% More Capacity |
| Internal Resistance | ≤6 mΩ | ~12 mΩ | 50% Lower IR |
| Cycle Life (30A) | ≥60% after 500 cycles | ~250 cycles | Longer Lifespan |
| Weight | 45g | 45g | — |
Safety Warning for Lithium-Ion Battery Usage
Customers should have a clear understanding of lithium-ion battery handling and safety before making a purchase. Lithium-ion batteries are highly sensitive and may pose fire, burn, or explosion risks if improperly handled. Always charge batteries on fire-resistant surfaces, and never leave them charging unattended.
By purchasing, you assume full responsibility for any injury, damage, or loss arising from the incorrect use or handling of lithium-ion batteries or chargers. Compatibility with specific devices is not guaranteed. Only charge using a smart charger designed specifically for this battery type, and do not mix old or used batteries with new ones.
Important Usage Guidelines:
-
Not for Use in E-Cigarettes or Similar Devices
-
Always Use in a Protected Pack with proper BMS
-
Store in protective cases, away from metal objects
-
Do not use damaged cells (wrappers, insulators, or casing)
-
Avoid overcharging, over-discharging, or exposure to heat/water
-
Only spot weld; do not solder directly to terminals
For Resellers: Please ensure all safety information is passed along to end users to promote safe handling and proper use.
