For battery cells, review the product description for real-world current recommendations, testing notes, and application guidance. Manufacturer maximum ratings should be treated as limits, not the best target for long-term pack health.
Description

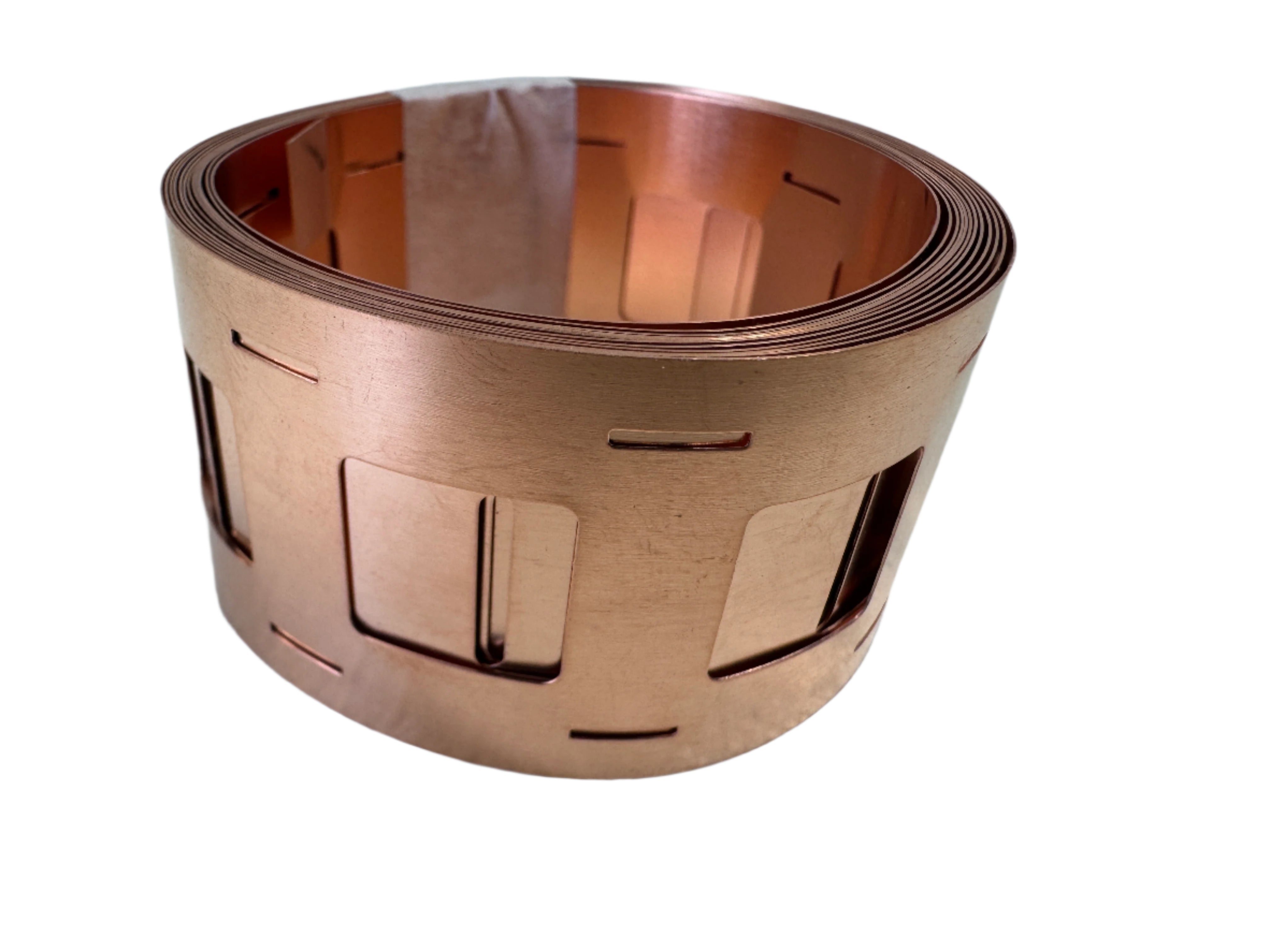

Pre-punched 0.20mm T2 pure copper strip for high-performance cylindrical lithium-ion battery pack assembly. Choose the cell size, pack spacing, and continuous strip length required for your build.
This is bare T2 copper, not nickel-plated steel. The repeating 2P pattern helps align parallel cell connections while maintaining a continuous copper current path.
Choose the correct configuration

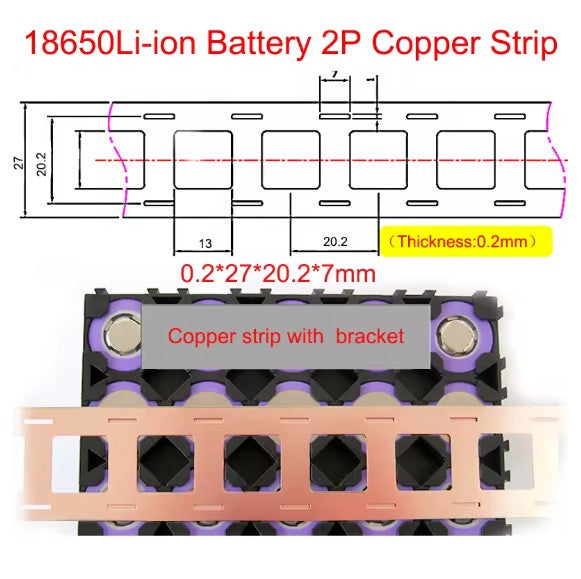

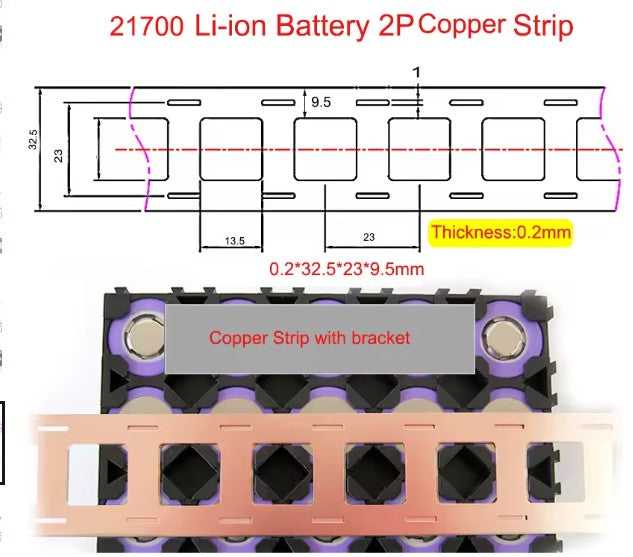

| Cell size | Pack style | Center spacing | Nominal strip width |
|---|---|---|---|
| 18650 | With cell holders | 20.2mm | 27mm |
| 18650 | Without cell holders | 18.5mm | 25.5mm |
| 21700 | With cell holders | 23mm | 32mm |
| 21700 | Without cell holders | 21.5mm | 30.5mm |
Measure before ordering: Holder geometry can vary. Confirm the actual center-to-center spacing of your cells or plastic holders; the dimensions above control compatibility.
Specifications
- Material: T2 pure copper
- Thickness: 0.20mm
- Pattern: Pre-punched 2P battery connection strip
- Length: 1m or 2m continuous strip, as selected
- Cell formats: 18650 or 21700, depending on variant
- Pack spacing: Holder spacing or compact direct-cell spacing, depending on variant
Welding guidance
Pure copper conducts heat and current far more readily than nickel-plated steel and requires suitable welding equipment and a validated process. Confirm that your spot welder can weld 0.20mm copper. A copper-nickel sandwich process may be appropriate when direct copper welding is outside the capability of the machine.
Battery-building safety
For experienced battery builders. Confirm cell alignment, insulation, conductor sizing, fusing, BMS protection, current sharing, and thermal management before assembly. Avoid prolonged heat at cell terminals and validate every weld with destructive sample tests and peel tests before building a pack.
Package includes: One continuous strip in the selected cell size, spacing, and length.
Ships from Florida when in stock.
Orders ship from Florida when inventory is available. Lithium-ion cells require proper handling, protected packs, correct chargers, and safe storage. Do not solder directly to battery terminals.
