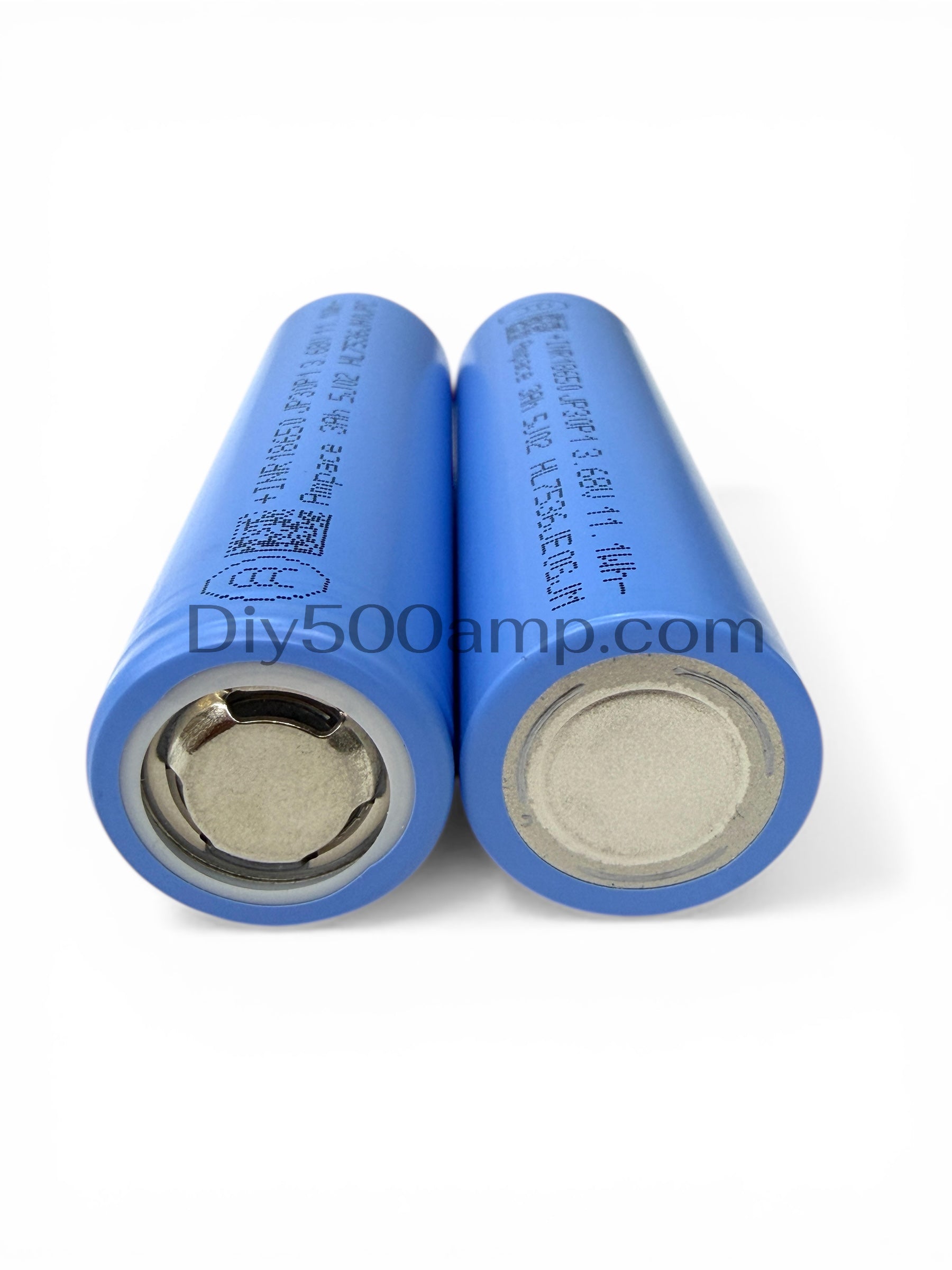

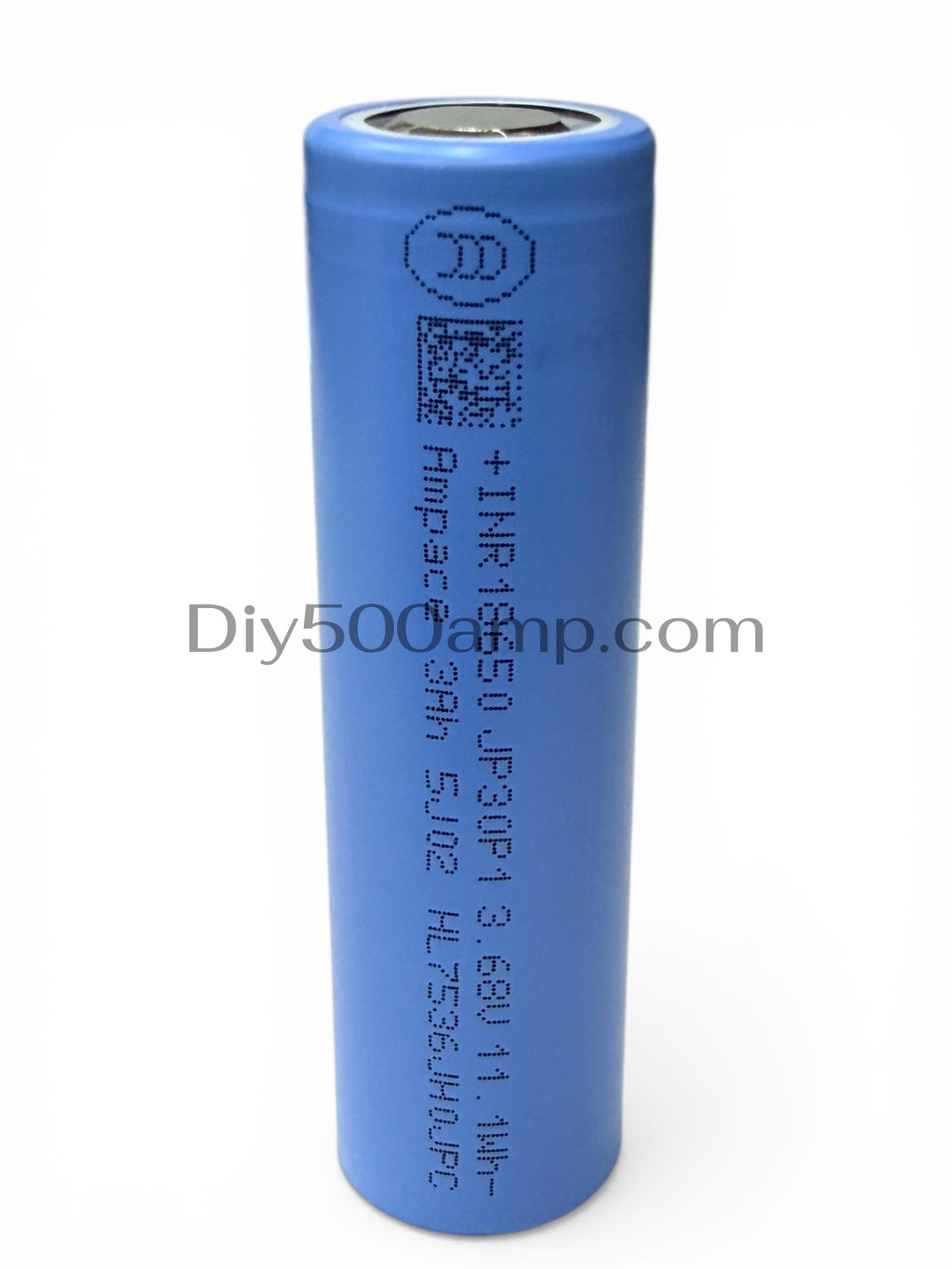

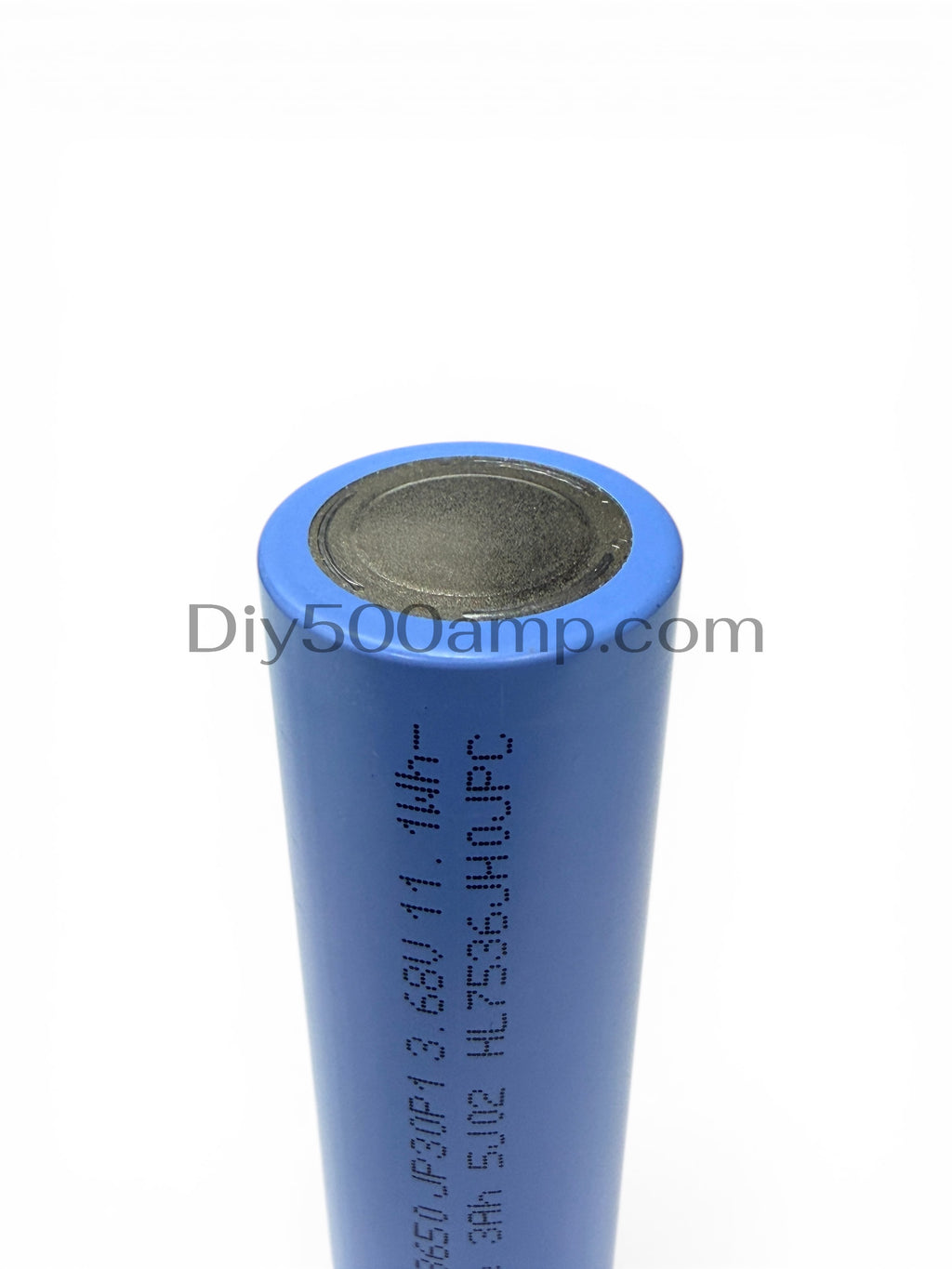

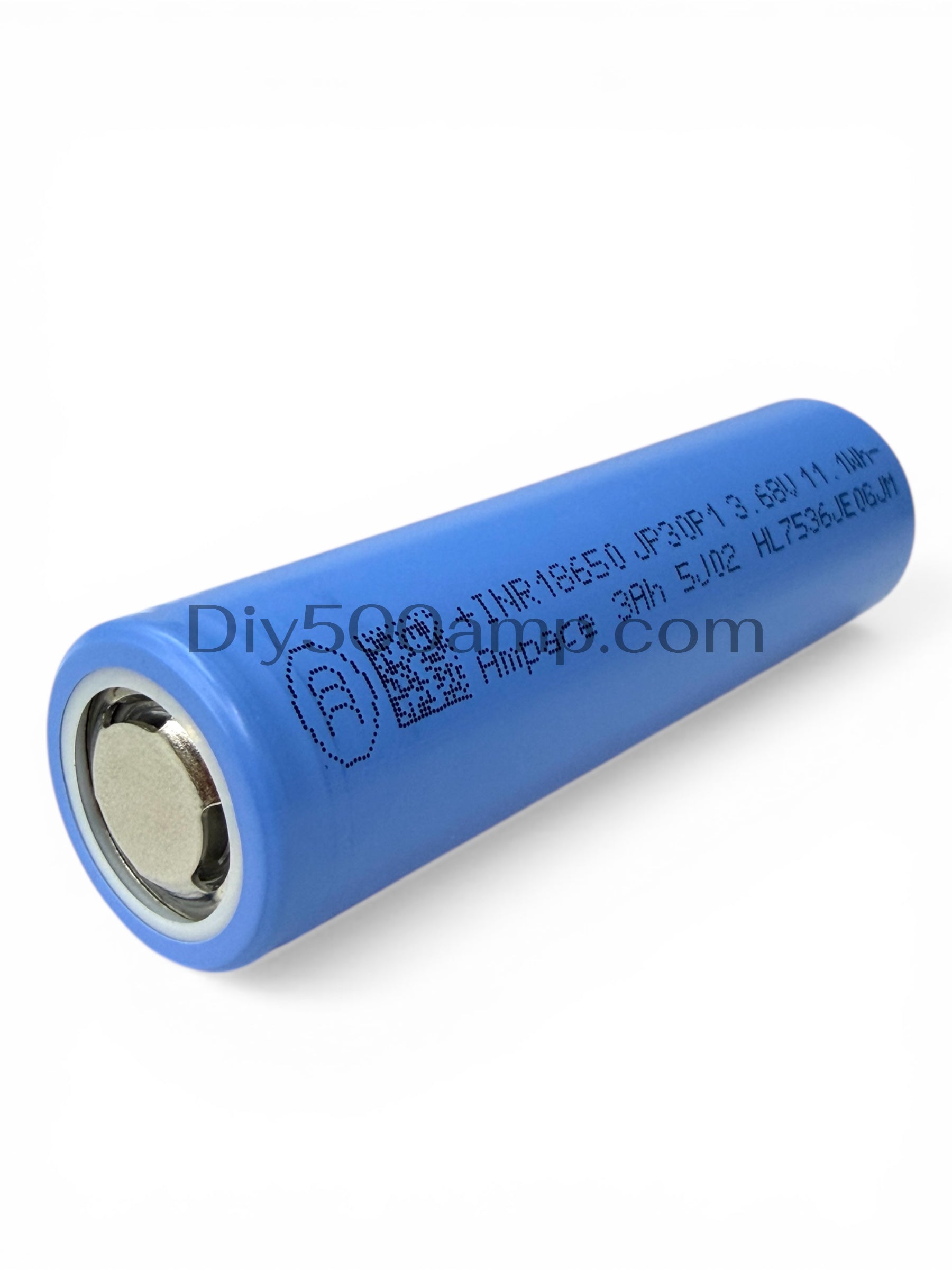

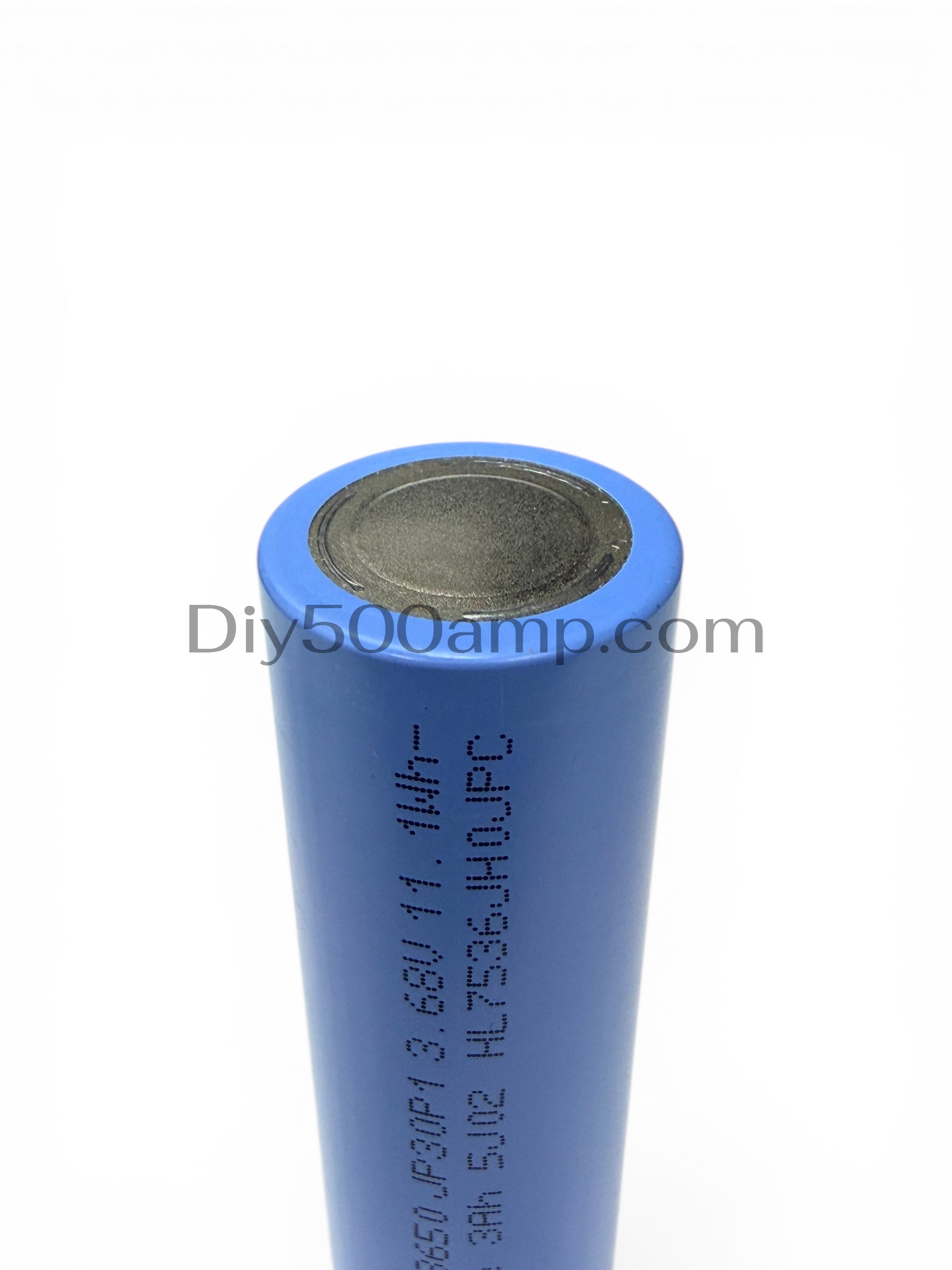

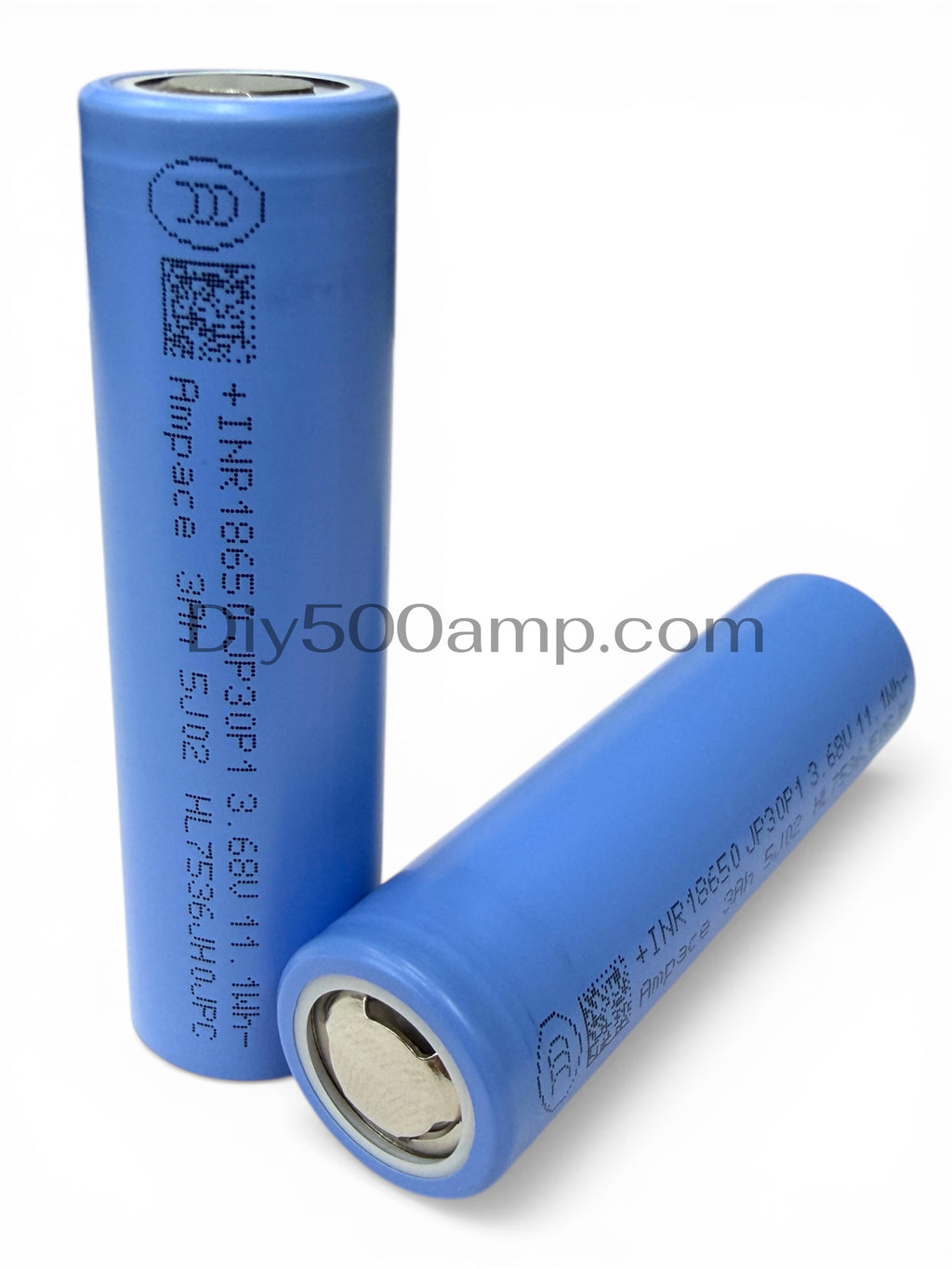

Ampace JP30P1 18650 Cell – 3000mAh 36A / 56A – High-Power Lithium-Ion Cell
The Ampace JP30P1 18650 3000mAh is a high-power lithium-ion cell built for demanding applications where strong current delivery, compact size, and thermal control matter. With a 36A continuous discharge rating without 80°C temperature cut and 56A continuous discharge with 80°C temperature cut, this cell is well suited for cordless power tools, high-drain battery packs, and other performance-focused builds.
This cell offers 3000mAh nominal discharge capacity (minimum 2900mAh), 3.68V nominal voltage, and 140A pulse discharge for 5 seconds at 25°C. It is positioned as a next-generation high-power 18650 cell with improved output, fast-charge capability, and strong cycle-life performance.
According to the specification sheet, the JP30P1 also delivers cycle-life targets of ≥600 cycles at 6A charge / 20A discharge, ≥400 cycles at 6A / 30A, and ≥300 cycles at 9A / 30A, while maintaining ≤5mΩ initial impedance and a compact 18.56mm × 65.23mm max form factor.

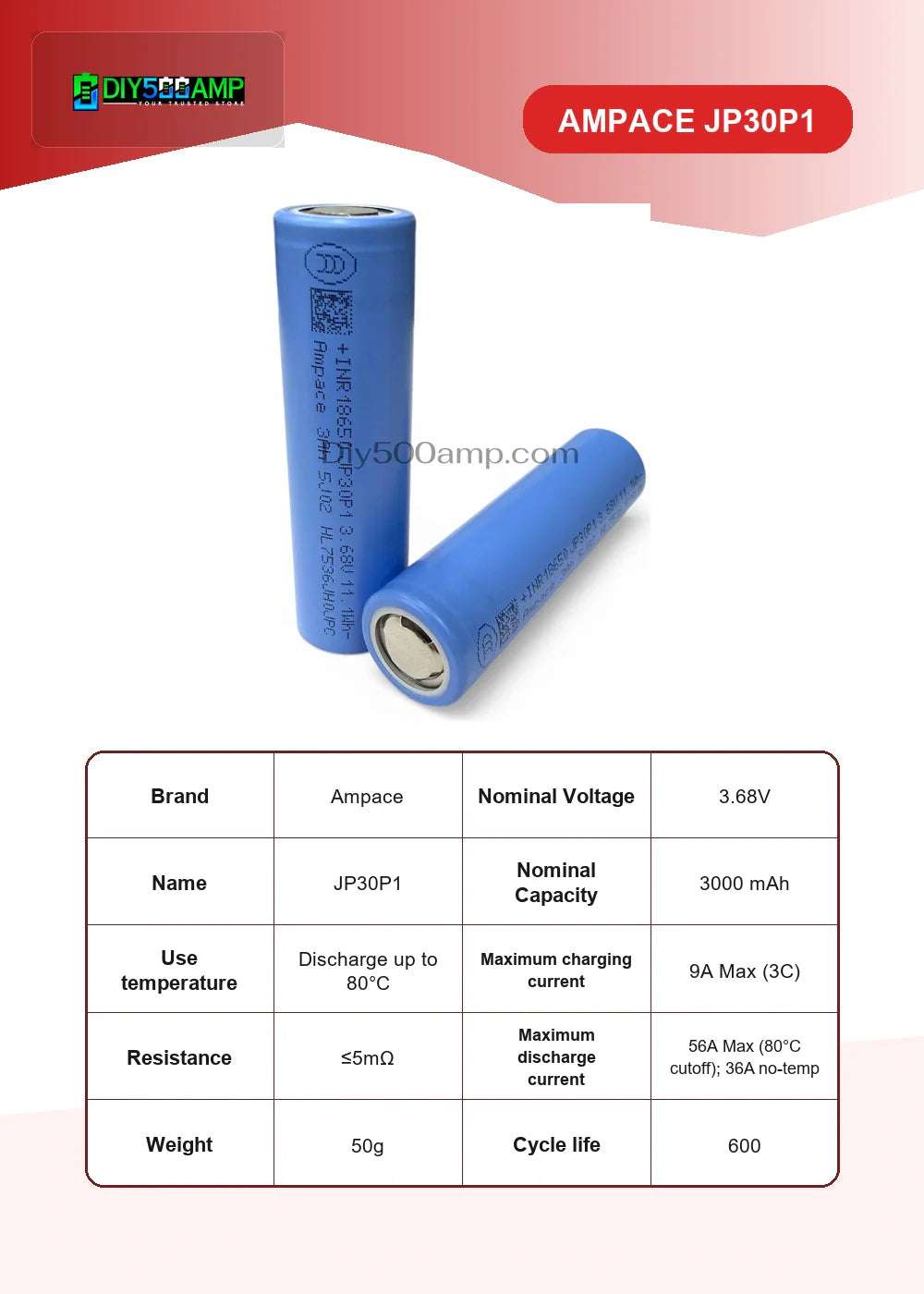

Specifications:
| Model | JP30P1 |
| Manufacturer | Ampace |
| Size | 18650 |
| Nominal Capacity | 3000mAh (Mean), 2900mAh (Minimum) |
| Nominal Voltage | 3.68V |
| Nominal Energy | 11.1Wh |
| Standard Charge | 0.5C (1.5A) CC to 4.20V, then CV to 75mA |
| Charge Upper Limit Voltage | 4.25V |
| Standard Discharge | 0.2C (0.6A) CC to 2.5V |
| Operating Voltage | 2.5V – 4.2V |
| Max Continuous Discharge | 36A (without 80°C temperature cut) / 56A (with 80°C temperature cut) |
| Max Pulse Discharge | 140A for 5s @ 25°C |
| Operating Temperature | Charge: -10°C to 60°C; Discharge: -20°C to 80°C |

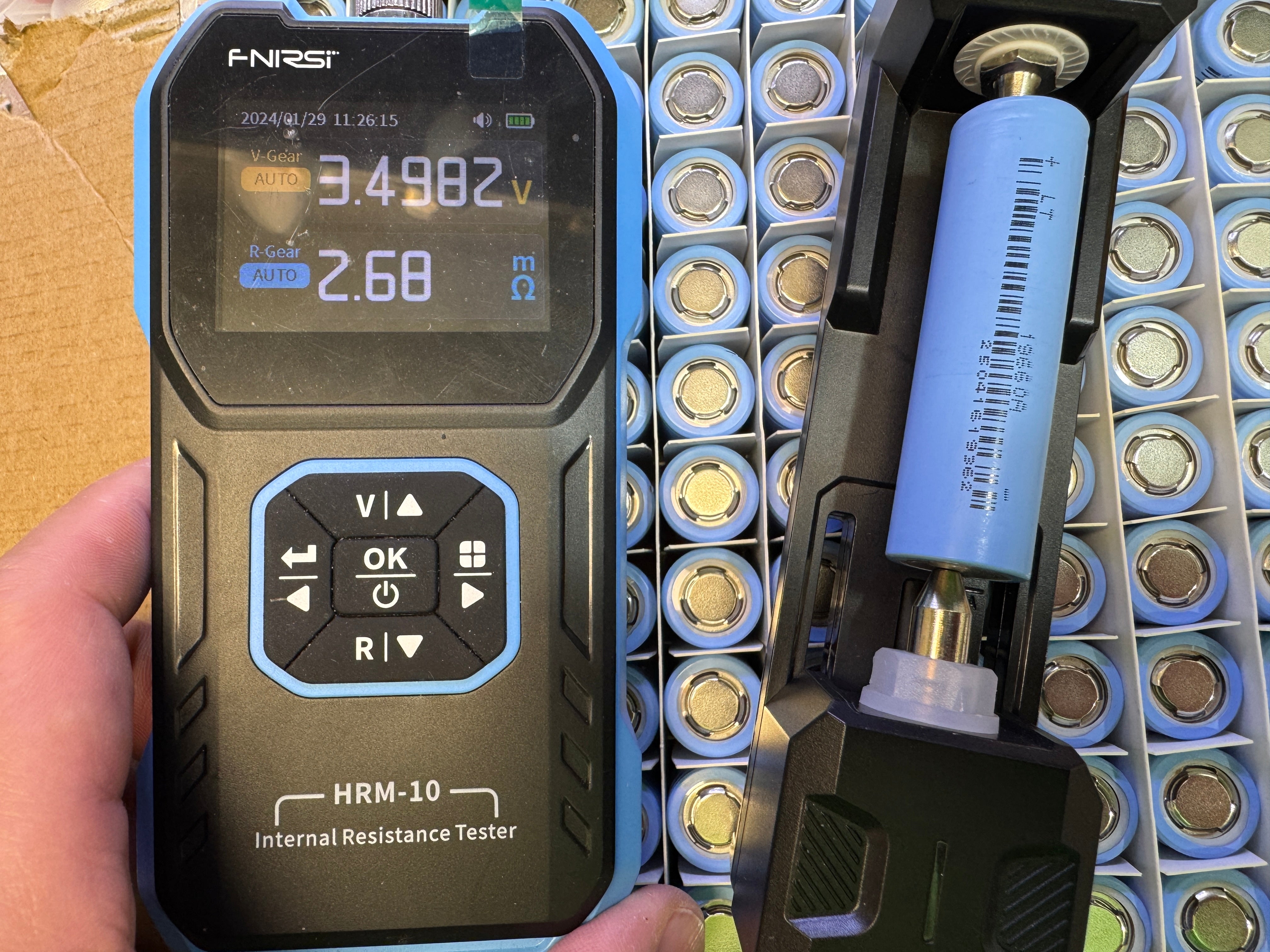

| Initial Impedance | ≤5mΩ @ 1kHz |
| Cycle Life | ≥600 cycles @ 6A/20A; ≥400 cycles @ 6A/30A; ≥300 cycles @ 9A/30A |
| Approx. Weight | 50.0g Max |
| Dimensions | Height ≤65.23mm, Diameter ≤18.56mm |
| Storage Conditions | 0–60°C within 1 month; 0–45°C within 3 months; 0–25°C within 12 months; ≤75% RH |
| Datasheet | Datasheet |
Applications:
- ✅ High-Performance E-Bikes
- ✅ Electric Scooters
- ✅ Power Tools
- ✅ Heavy-Duty Battery Packs
- ✅ Custom 21700 Builds
⚠️ Safety Warning for Lithium-Ion Battery Usage
Customers should have a clear understanding of lithium-ion battery handling and safety before making a purchase. Lithium-ion batteries are highly sensitive and may pose fire, burn, or explosion risks if improperly handled. Always charge batteries on fire-resistant surfaces, and never leave them charging unattended.
By purchasing, you assume full responsibility for any injury, damage, or loss arising from the incorrect use or handling of lithium-ion batteries or chargers. Compatibility with specific devices is not guaranteed. Only charge using a smart charger designed specifically for this battery type, and do not mix old or used batteries with new ones.
Important Usage Guidelines:
- Not for Use in E-Cigarettes or Similar Devices
- Must Be Used in a Protected Pack
- Spot Weld Only – Do Not Solder Directly
- Store in Fireproof Container
- Inspect Before Use
- Follow Manufacturer Specs Strictly
