For battery cells, review the product description for real-world current recommendations, testing notes, and application guidance. Manufacturer maximum ratings should be treated as limits, not the best target for long-term pack health.
Description

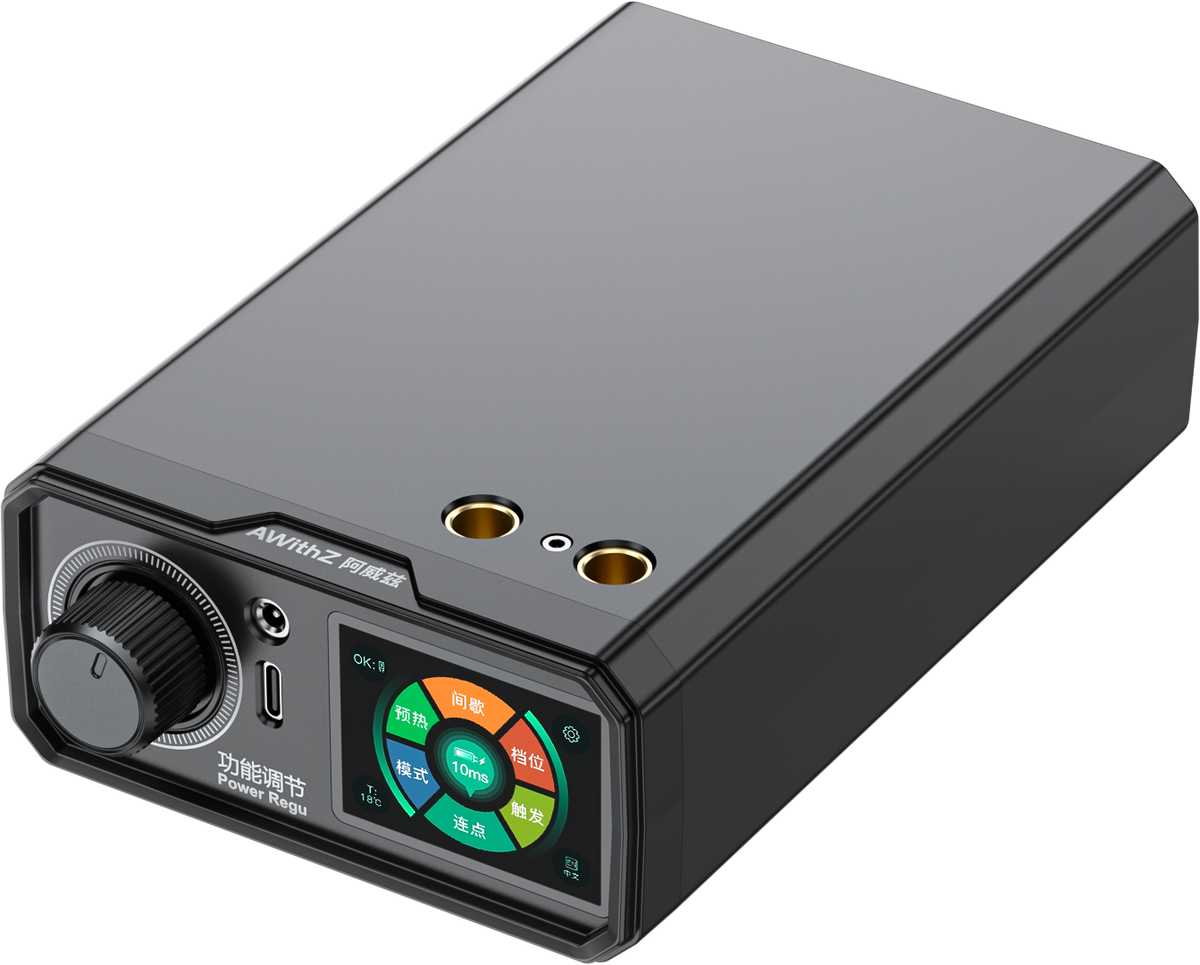

The AWithZ UKF10 is a compact and powerful capacitor-based spot welder designed for DIY battery pack builders. With 1380A peak current, 10.2kW power output, and pedal activation, this machine can handle up to 0.35mm welding thickness on nickel, stainless steel, and copper-nickel sandwich connections.
Perfect for hobbyists and professionals who build lithium-ion battery packs for e-bikes, scooters, drones, and other high-power applications.
Key Features:
-
1380A Super Farad Capacitor Discharge Design
-
10.2kW output, optimized for 18650/21700 battery welding
-
Max welding thickness: 0.35mm
-
Dual voltage system: 8.4V, 1380A peak
-
Portable and lightweight (1.5kg)
-
Dimensions: 100.5 × 158 × 48mm
-
Comes with foot pedal control for precision welding
-
CE and FCC certified
-
1-year warranty with free replacement parts
Package Includes:
-
1 × AWithZ UKF10 Spot Welder
-
1 × Foot Pedal
-
1 × Power Cable
-
1 × User Manual
Products DescriptionProduct NameSpot welderBrandAWithzModelUKF10Gear Adjustment99 adjustmentInput InterfaceType-C charging portOutput Voltage8.3V (MAX)Output Current1380A(MAX)Output Power9kW(MAX)Weight1.5 KGWarranty1 YearApplication Range0,35mm steel sheet
Manuals and setup guide
The rotary control adjusts welding mode, power level, preheat, pause, trigger delay, and stitch count. Wait for the display’s “OK” indication before welding; manual mode uses a connected trigger such as the foot pedal.
The UKF10 manual specifies USB-C input of 5–20 V / 2 A, up to 40 W. This is the input-supply rating, not welding output. Keep the welder connected to the specified USB-C power source during use and follow the instructions supplied with your unit.
Orders ship from Florida when inventory is available. Lithium-ion cells require proper handling, protected packs, correct chargers, and safe storage. Do not solder directly to battery terminals.
