Description

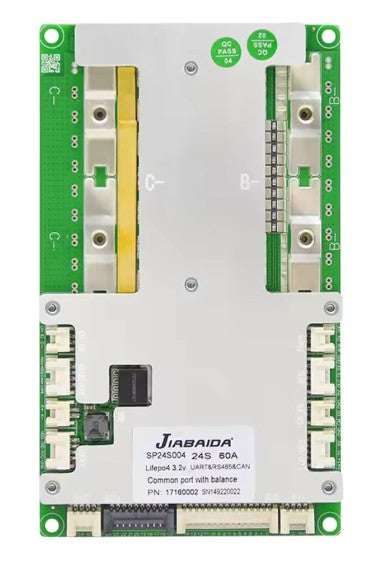

JBD Smart BMS SP24S004 – 8S–24S, 150A with UART, RS485, CAN Bus, and Dual NTC Sensors
The JBD SP24S004 is a fully featured Smart BMS designed for advanced lithium battery applications. With automatic series detection, high current support, and multiple communication interfaces, this BMS is ideal for custom high-performance packs used in e-mobility, solar storage, and DIY energy systems.
Model: SP24S004
Battery Type: Li-ion (NMC) / Li-Po

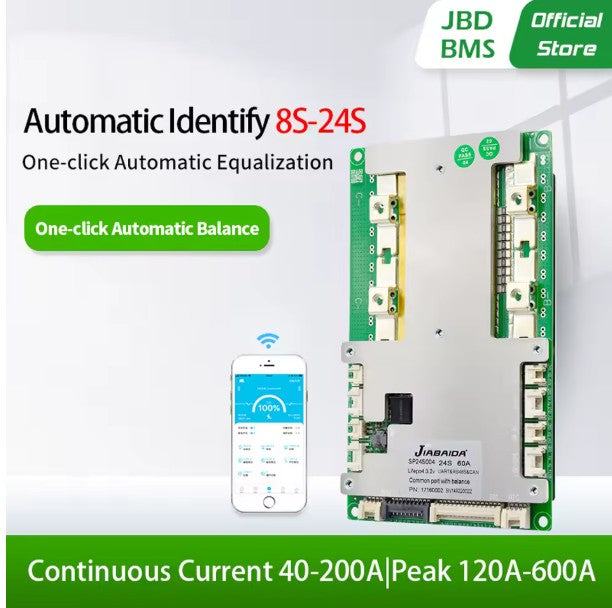

Supported Cell Count: 8S to 24S (automatic recognition)
Nominal Voltage Range: 24V / 36V / 48V / 60V / 72V
Continuous Discharge Current: 150A
Max Charge Current: 100A
Balance Type: Passive
Balance Current: 60mA ±5mA (at 4.20V)

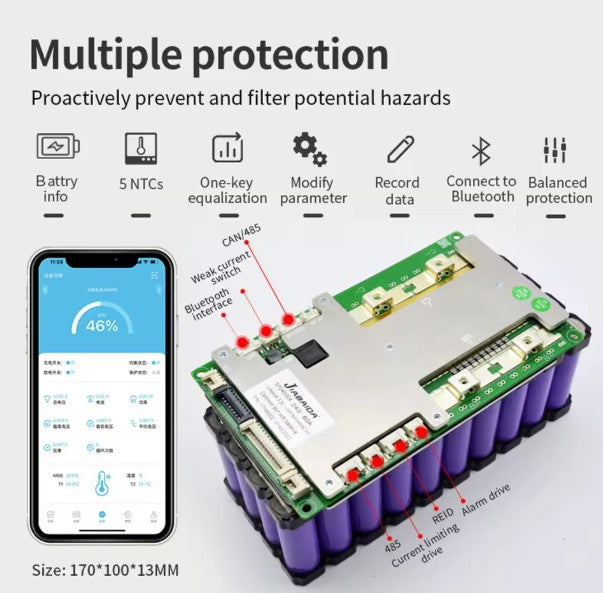

Protection Features:
-
Overcharge Protection:
-
Trigger Voltage: 4.25V ±0.025V
-
Release Voltage: 4.15V ±0.05V
-
Delay: 1.0s ±0.5s
-
-
Overdischarge Protection:
-
Trigger Voltage: 2.80V ±0.08V
-
Release Voltage: 3.00V ±0.05V
-
Delay: 1.0s ±0.5s
-
-
Overcurrent Protection:
-
Level 1: 300A (500ms)
-
Level 2: 400A (320ms)
-
-
Short Circuit Protection: Enabled
-
Temperature Protection: Supported via 2x NTC thermistors (10kΩ)
Communication & Software:
-
Interfaces: UART, RS485, CAN
-
App Support: Xiaoxiang BMS (Bluetooth module required)
-
PC Software: JBDTools via UART-USB adapter
Monitor and configure parameters such as:
-
Individual cell voltages
-
Total pack voltage
-
Charge/discharge toggling
-
Current, temperature, and error logs
-
Protection thresholds and calibration
Environmental & Mechanical:
-
Operating Temp: -20°C to 70°C
-
Storage Temp: -40°C to 125°C
-
Humidity: ≤93% RH (non-condensing)
-
Dimensions: 160mm × 60mm × 12mm
-
Weight: ~250g
Included:
-
1x JBD SP24S004 150A BMS
-
Balance lead wiring harness
Applications:
-
48V–72V battery packs for electric bikes, scooters, and carts
-
Off-grid solar battery banks and mobile powerwalls
-
DIY energy storage using 18650 or 21700 cells
-
High-performance experimental power systems
This BMS is engineered for users who need reliable protection, deep configurability, and real-time visibility into their battery systems. Trusted by DIY builders and integrators who demand both performance and safety.
