Custom Triangle 20S6P Pack


Price:
Sale price$1,444.99 USD

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

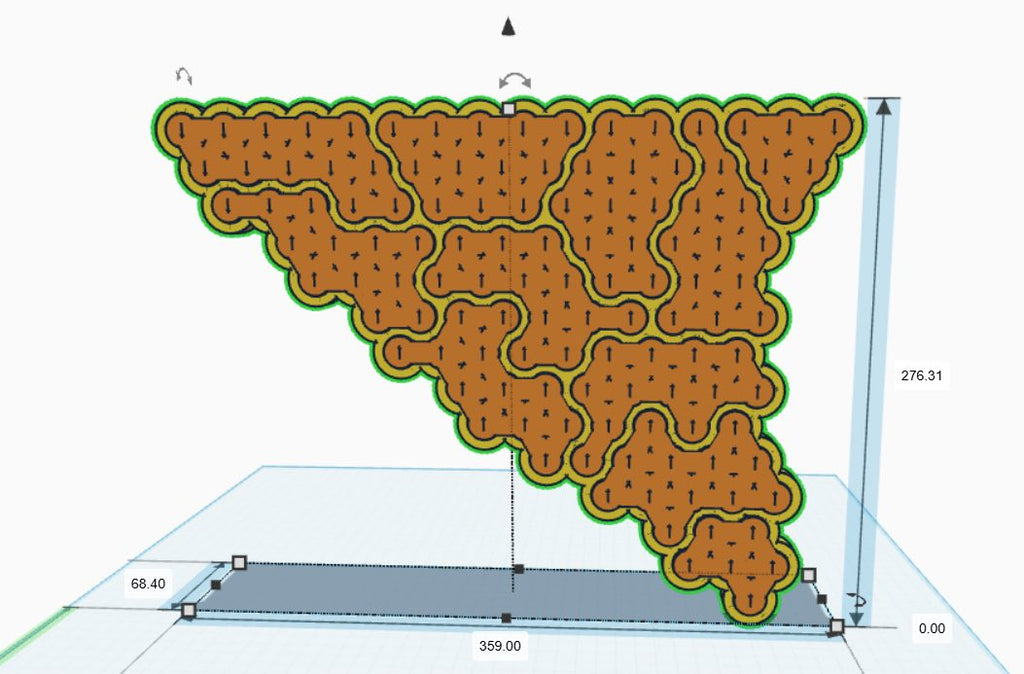

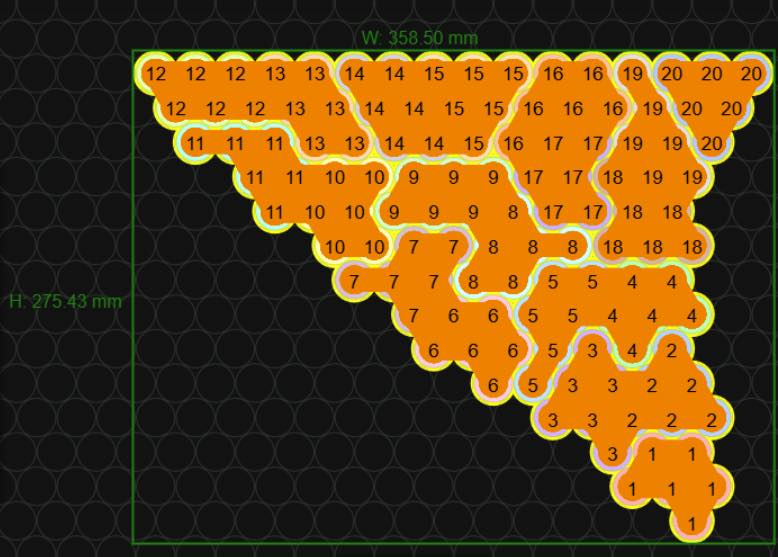

Custom 72V lithium-ion pack built with Reliance RS50 cells in a 20S6P triangle configuration. Designed for maximum discharge capability and compact installation. Finished as a barebone pack (no enclosure) for direct integration. Features a JK 150A BMS, laser-cut copper busbars, and QS8 connectors for high-current output.

Included Components

  • 120Ɨ Reliance RS50 cells (20S6P)

  • Custom laser-cut 0.2mm copper + nickel busbars

  • JK 150A BMS

  • 8 AWG main discharge leads with QS8 connectors

  • XT90 (12 AWG) charging lead

  • Wiring, connectors, heat-shrink, and materials

  • Design included at no charge

Pack Specifications

  • Nominal Voltage: 72V (20S)

  • Full Voltage: 84V

  • Capacity: ~27Ah (depending on RS50 batch)

  • Continuous Current: 150A (via BMS)

  • Peak Current: up to 300A+ depending on setup

  • Configuration: Barebone (no case)

Comments
The pack will be delivered as a barebone build with exposed busbars and wiring for easy integration. Built using 8 AWG discharge wiring and XT90 charging connector.

Lead Time
Production begins after payment is cleared. Estimated build time is 15 – 20 business days.

Safety Warning for Lithium-Ion Battery Usage
Customers should have a clear understanding of lithium-ion battery handling and safety before making a purchase. Lithium-ion batteries are highly sensitive and may pose fire, burn, or explosion risks if improperly handled. Always charge batteries on fire-resistant surfaces, and never leave them charging unattended.
By purchasing, you assume full responsibility for any injury, damage, or loss arising from incorrect use or handling. Only charge with a smart charger for this chemistry, and do not mix old or used batteries with new ones. Use within a protected pack; do not solder directly to cells; spot welding only. Inspect wraps and insulators. Do not expose to heat or liquids. Do not puncture or crush. Resellers must pass safety information to end users.
