Description
Enhance your LiFePO₄ 8S (24V) battery pack with this high-performance 250A Smart BMS, designed for efficient energy management, real-time monitoring, and superior protection. Featuring an integrated cooling fan and Bluetooth connectivity, this BMS is ideal for high-power applications like electric vehicles, solar energy storage, and backup power systems.
🔹 Key Features:
✔ Supports Up to 250A Continuous Current – High-capacity design suitable for demanding applications.
✔ Integrated Cooling Fan – Ensures effective heat dissipation for long-term stability.
✔ Bluetooth & UART Connectivity – Monitor real-time battery voltage, current, temperature, and charge cycles using a mobile app.
✔ Comprehensive Protection System:
- Overcharge Protection – Prevents overvoltage damage.
- Over-discharge Protection – Protects battery longevity.
- Overcurrent Protection – Prevents excessive current draw.
- Short Circuit Protection – Avoids system failures.
- Thermal Protection – Maintains safe operating temperatures.
-
Waterproof Design – Increases durability and safety.
✔ Active Cell Balancing – Ensures uniform charge levels, improving battery lifespan.
✔ Battery Display Board – Provides real-time charge and discharge information.
✔ Common Port Design – Simplifies wiring by allowing charging and discharging from the same terminals.
✔ Multiple Activation Methods: - Switch Activation – Press the activation button on the BMS board.
- Bluetooth Activation – Activate via the mobile app.
- Charge Activation – Connect B- to the negative pole of the battery pack when charging.

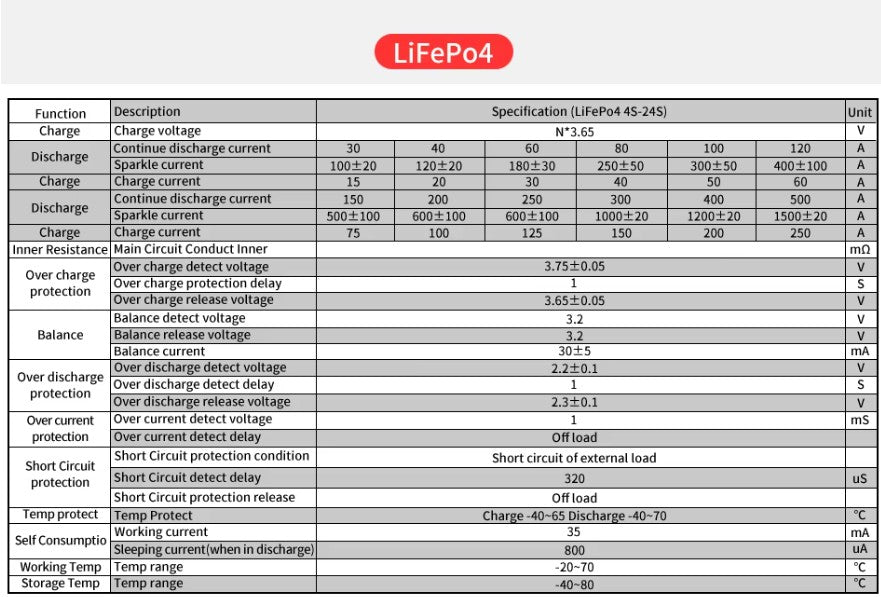

📊 Technical Specifications
| Parameter | Details |
|---|---|
| Battery Type | LiFePO₄ (Lithium Iron Phosphate) |
| Configuration | 8S (24V) |
| Nominal Voltage | 24V |
| Maximum Discharge Current | 250A |
| Charge Current | 40A – 125A |
| Cooling System | Integrated Fan |
| Balancing Function | Yes (Active Cell Balancing) |
| Protection Features | Overcharge, Over-discharge, Short Circuit, Overcurrent, Thermal |
| Communication Interfaces | Bluetooth, UART |
| Material | Metal (Red Casing) |
| Waterproof | Yes |
| Operating Temperature | -20°C to 70°C |

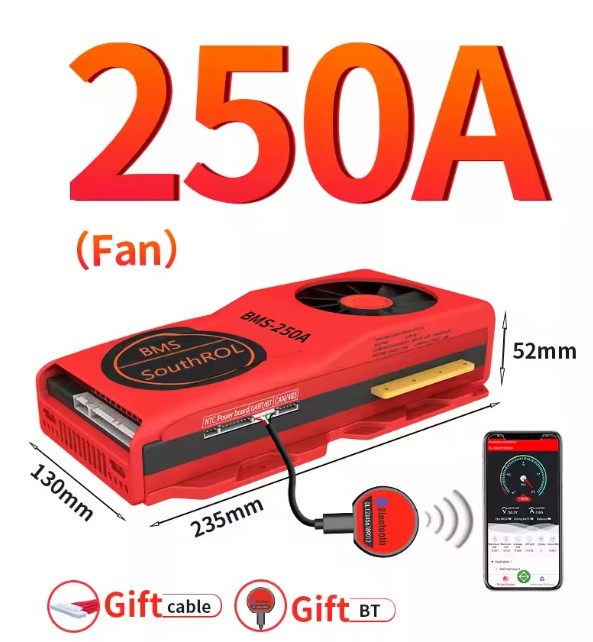

| Dimensions | Approx. 235mm x 130mm x 52mm |
🔋 Applications
✅ Electric Vehicles (EVs): E-bikes, e-scooters, motorcycles, and golf carts.
✅ Solar & Off-Grid Energy Storage: Efficient battery management for solar panels and home battery banks.
✅ Uninterruptible Power Supplies (UPS): Ensures backup power for homes and industries.
✅ Marine & RV Systems: Reliable energy storage for boats, RVs, and off-grid campers.
✅ DIY Battery Pack Projects: Ideal for custom battery setups requiring high power output.
📦 Package Includes:
✔ 1 x LiFePO₄ 8S 24V 250A Smart BMS with Fan
✔ 1 x Cable Set
✔ 1 x Bluetooth Module
✔ 1 x Battery Display Board
✔ 1 x NTC Temperature Sensor
🛠️ Installation & Activation
Before using the BMS, it must be activated using one of the following methods:
1️⃣ Power Board Activation: Press the activation switch on the board.
2️⃣ Bluetooth Activation: Use the mobile app to activate the system.
3️⃣ Charge Activation: Connect B- to the battery pack’s negative pole while charging. (Required for 3S~5S & J series BMS models.)
💡 Frequently Asked Questions (FAQ)
Q: How do I know if this BMS is compatible with my battery pack?
✔ Battery Type: Must be LiFePO₄ (3.2V per cell).
✔ Battery Configuration: Must be 8S (24V setup).
Q: What’s the difference between Common Port and Separate Port?
✔ Common Port (P-) – Charging and discharging share the same terminal, making wiring simpler.
✔ Separate Port (C- & P-) – Charging and discharging use separate terminals, allowing different charge and discharge currents.
Q: What charger should I use with this BMS?
✔ LiFePO₄-specific chargers only! Avoid using lead-acid chargers.
✔ Recommended Charge Voltage: 28.8V – 29.2V for 8S LiFePO₄ packs.
Q: How does the balancing function work?
✔ The BMS activates balancing at 3.6V per cell, ensuring equal charge distribution.
✔ If voltage differences between cells are too large, manual balancing may be required.
Q: Does battery capacity (Ah) affect the BMS current?
✔ No. The BMS current rating is based on motor/controller power needs, not battery capacity.
Q: What BMS size do I need for my system?
✔ 250A BMS is ideal for 3000W – 5000W power systems.
🚀 Why Choose This BMS?
✔ Handles 250A Continuous Discharge – Suitable for high-power applications.
✔ Smart Monitoring via Bluetooth – View real-time battery status on your phone.
✔ Built-in Protection Features – Prevents overcharging, short circuits, and overheating.
✔ Cooling Fan for Heat Dissipation – Ensures stability under heavy loads.
✔ Waterproof Design – Ideal for various environments.
✔ Active Cell Balancing – Extends battery lifespan.
✔ Easy Setup & Activation – Multiple activation options for hassle-free installation.
