JBD Smart BMS SP24S004 – 8S–24S, 200A with UART, RS485, CAN Bus, and NTC Temp Sensors
The JBD SP24S004 Smart BMS is a high-performance battery management system designed for demanding lithium battery applications. It offers automatic cell detection, advanced protection features, and full communication support for real-time monitoring and control. Ideal for EV builds, solar banks, powerwalls, and large-format DIY battery systems.
Model: SP24S004
Cell Support: 8S to 24S (24V to 72V systems)
Max Continuous Discharge: 200A
Max Charge Current: 100A
Charge Control: Configurable via software
Balance Type: Passive
Balance Current: 60mA ±5mA (at 4.20V)

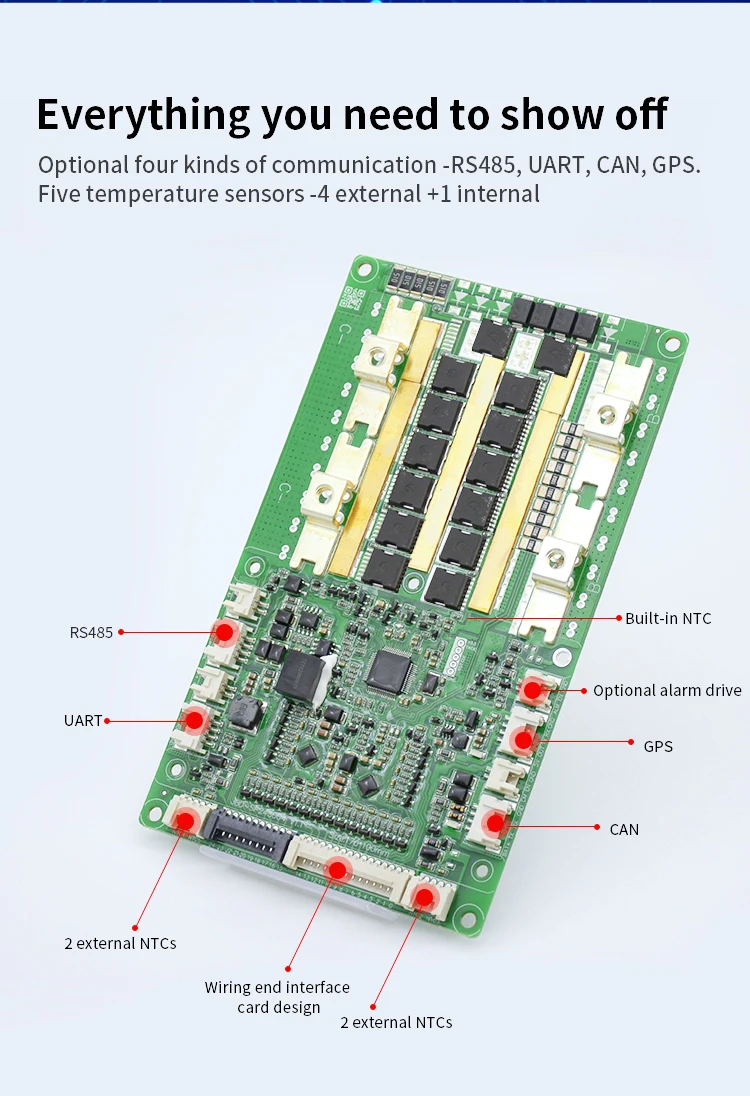

Communication Ports: UART, RS485, CAN
Temperature Monitoring: Supports dual NTC thermistors (10kΩ)
Chemistry: Compatible with Li-ion, Li-Po, and NMC
Dimensions: 160mm x 60mm x 12mm
Weight: ~250g
Operating Temperature: -20°C to 70°C
Storage Temperature: -40°C to 125°C
Humidity Tolerance: ≤93% RH (non-condensing)
Firmware/App Support: Xiaoxiang BMS App, JBDTools PC Software
Key Features:
Automatically detects cell count from 8S to 24S
Handles up to 200A continuous discharge current
Full protection suite: over-voltage, under-voltage, overcurrent, short circuit, temperature
CAN bus and RS485 communication for integration with smart displays and systems
Real-time monitoring using the Xiaoxiang BMS App (Bluetooth module required)
Charge/discharge control and parameter adjustment via PC or mobile
Includes dual-stage overcurrent protection (300A at 500ms, 400A at 320ms)
Overcharge protection at 4.25V, release at 4.15V
Overdischarge protection at 2.80V, release at 3.00V
Included:
1x JBD SP24S004 BMS (200A version)
Balance wiring harness
Use Cases:
72V electric bike or scooter battery packs
High-current solar storage systems
DIY powerwall and home energy backup
Experimental aircraft and mobile power solutions
This BMS has been tested and validated in real-world applications and is trusted by experienced builders for its reliability, configurability, and performance.
