Description
| Feature | Specification |
|---|---|
| Model | JBD-SP14S004 |
| Battery Compatibility | Li-ion / LiFePO4 |
| Series Support | 7S to 14S |
| Continuous Current | 50A |
| Bluetooth | Built-in Bluetooth (iOS/Android app support) |
| Communication | UART / Bluetooth |
| Dimensions | 63mm x 52mm x 9mm |
| Temperature Sensors | 1 built-in, 1 external |
| Balancing Cables | Included |
| Application | E-bikes, E-motorcycles, EV systems |
| Certification | CE, RoHS |
Description

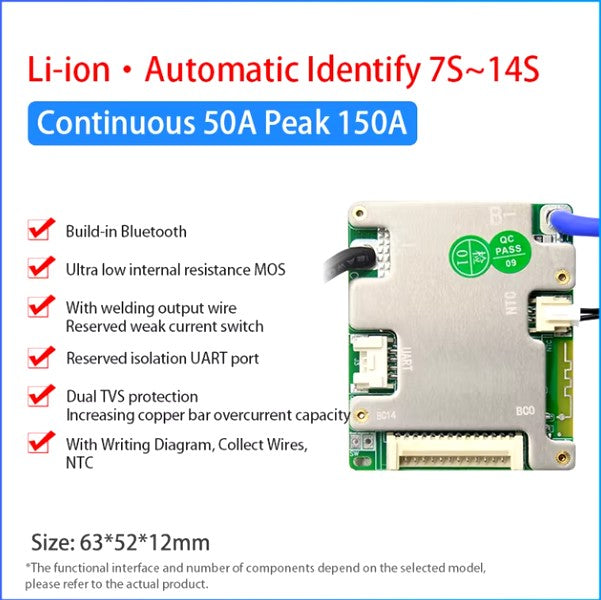

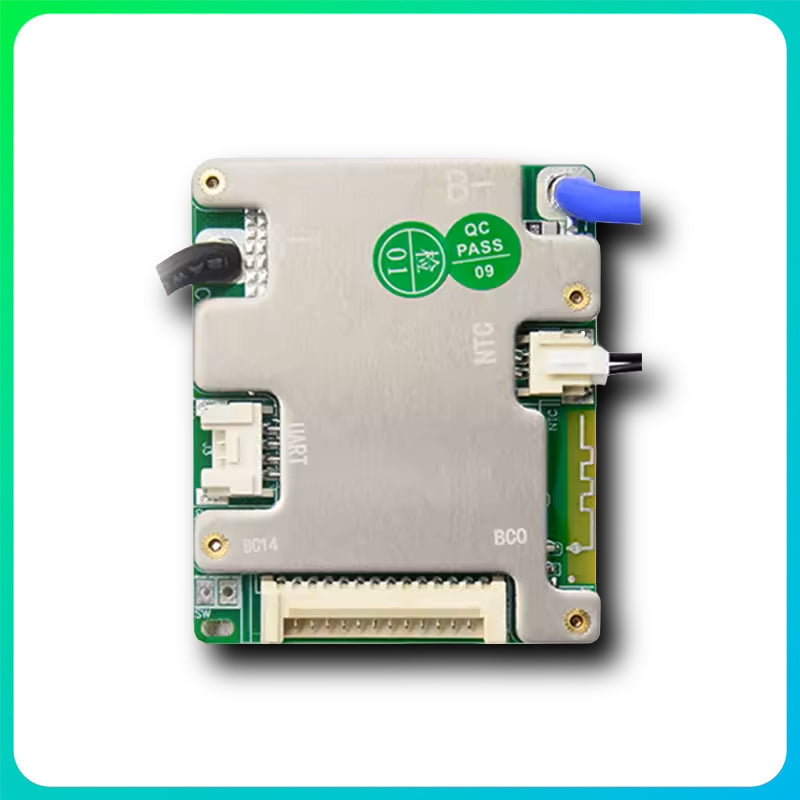

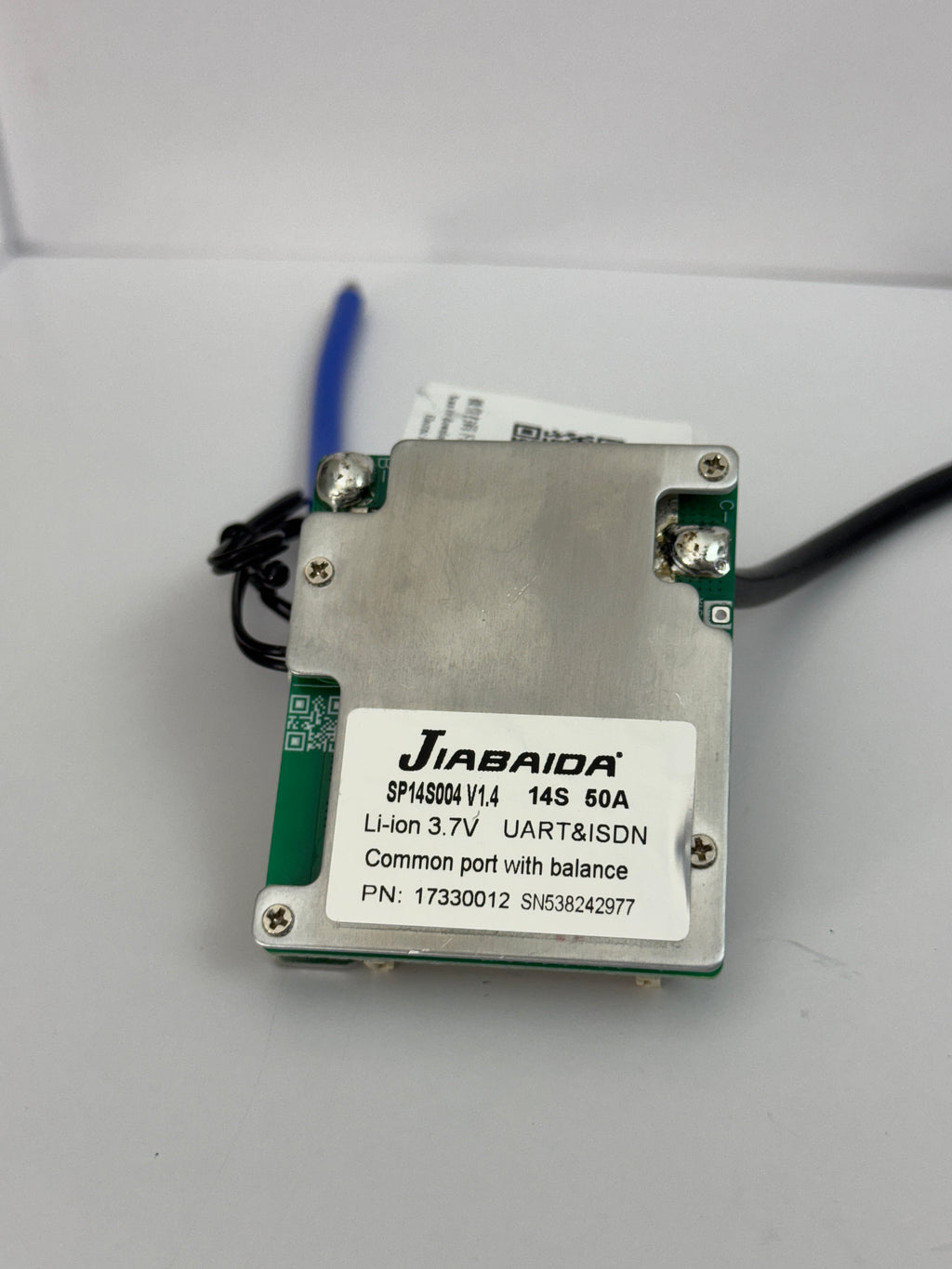

JBD-SP14S004 is a software protection board scheme specially designed for 7~14 series lithium battery packs. The whole system adopts O2 front-end acquisition chip + Bluetooth MCU scheme, and some parameters can be flexibly adjusted through the upper computer according to the needs of customers.
① Applicable Battery : Li-ion /LiFePo4

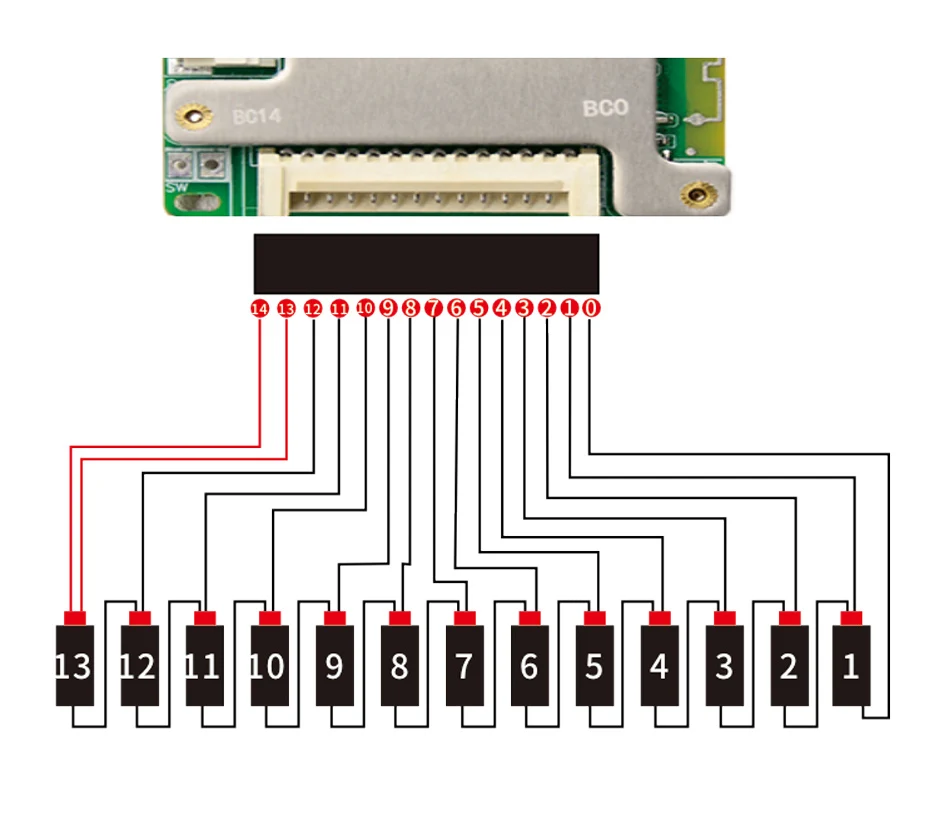

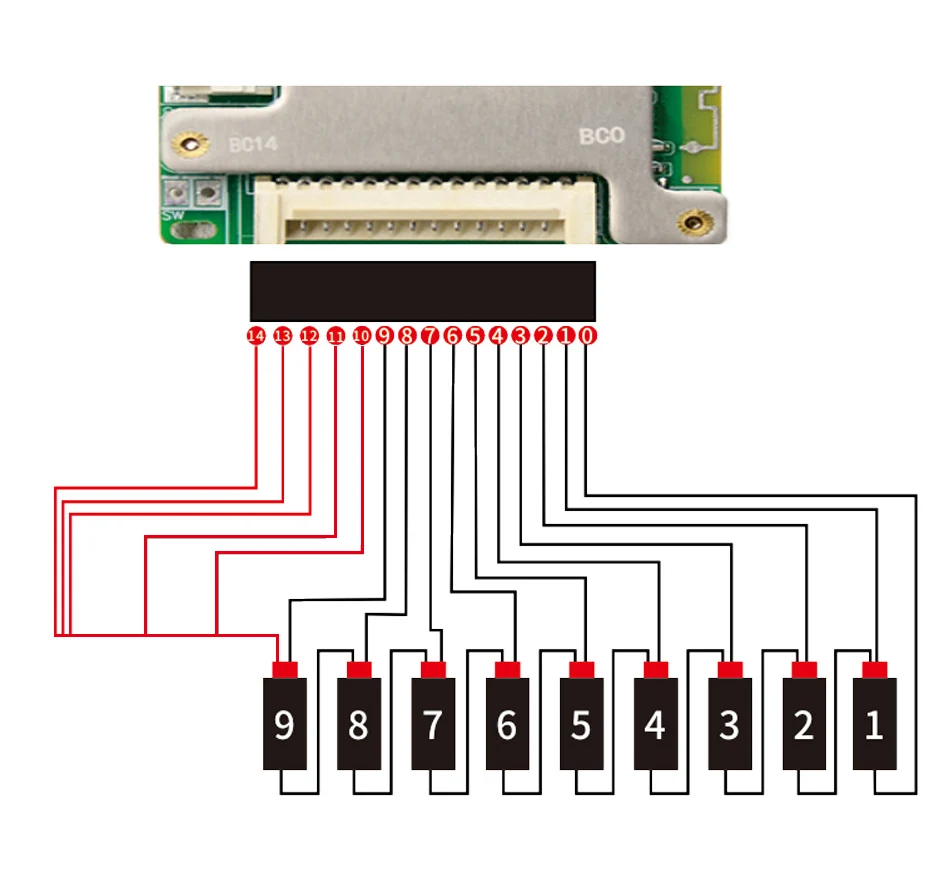

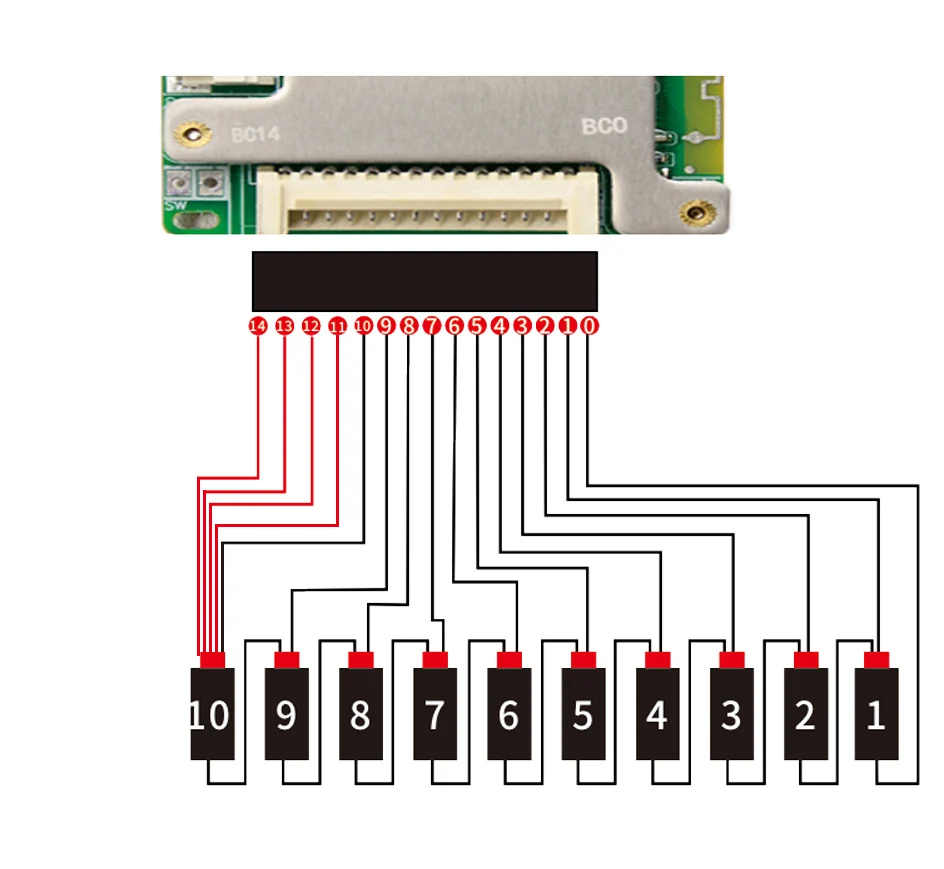

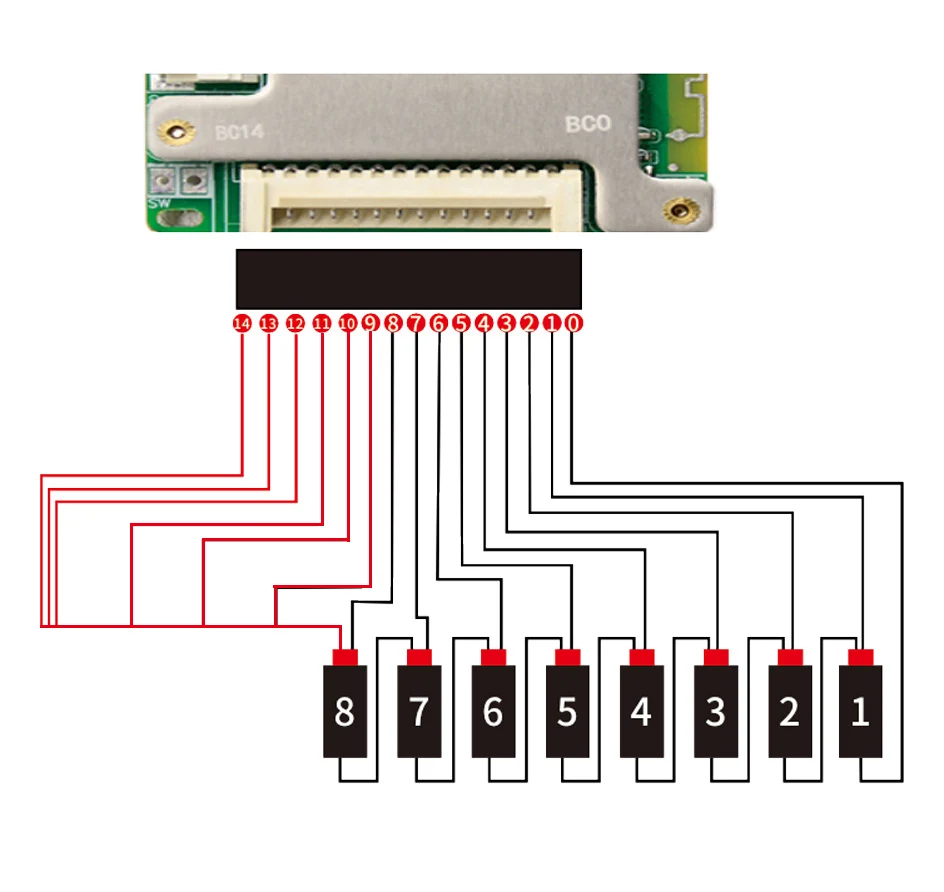

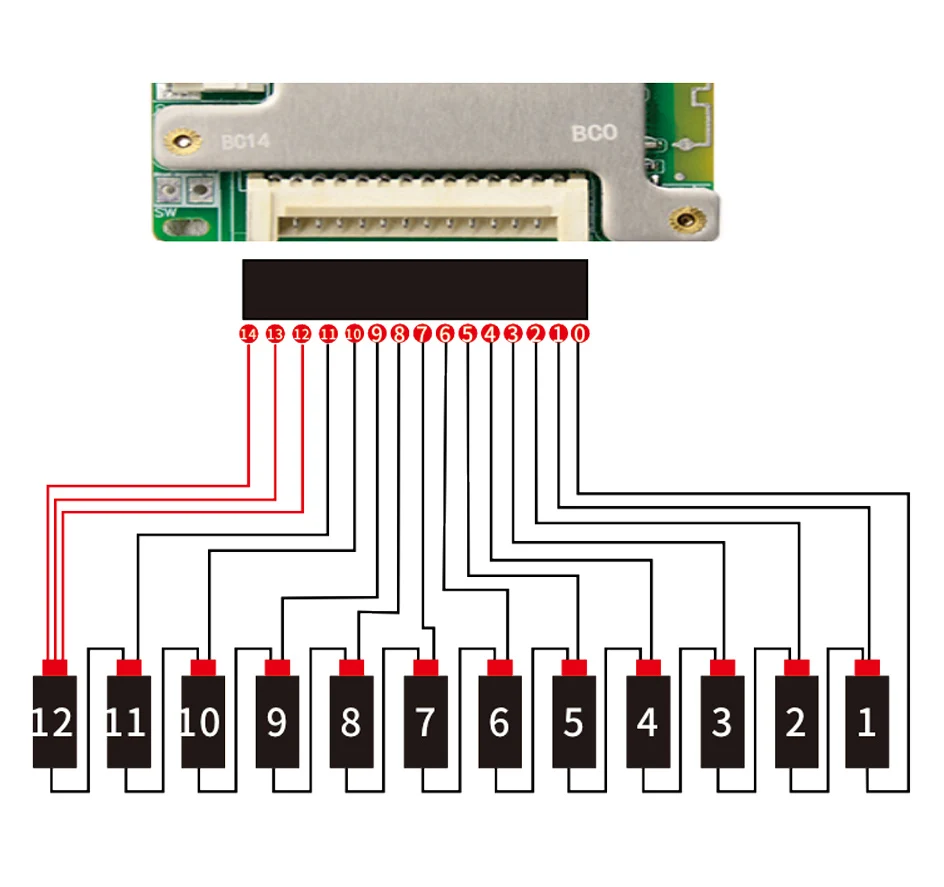

② Automatically Recognize 7S-14S, 63mm * 52mm * 9mm
③ Function Introduction
1) Built-in Bluetooth- Phone
IOS version needs to pay to change the parameters (need to be within the specified range)
Android version can change the parameter settings
2) UART - Computer (Set parameters)
④ Download link:
1) Phone-"Xiaoxiang BMS"
IOS: Search it in the APP STORE
Android: https://www.pgyer.com/Bzt1

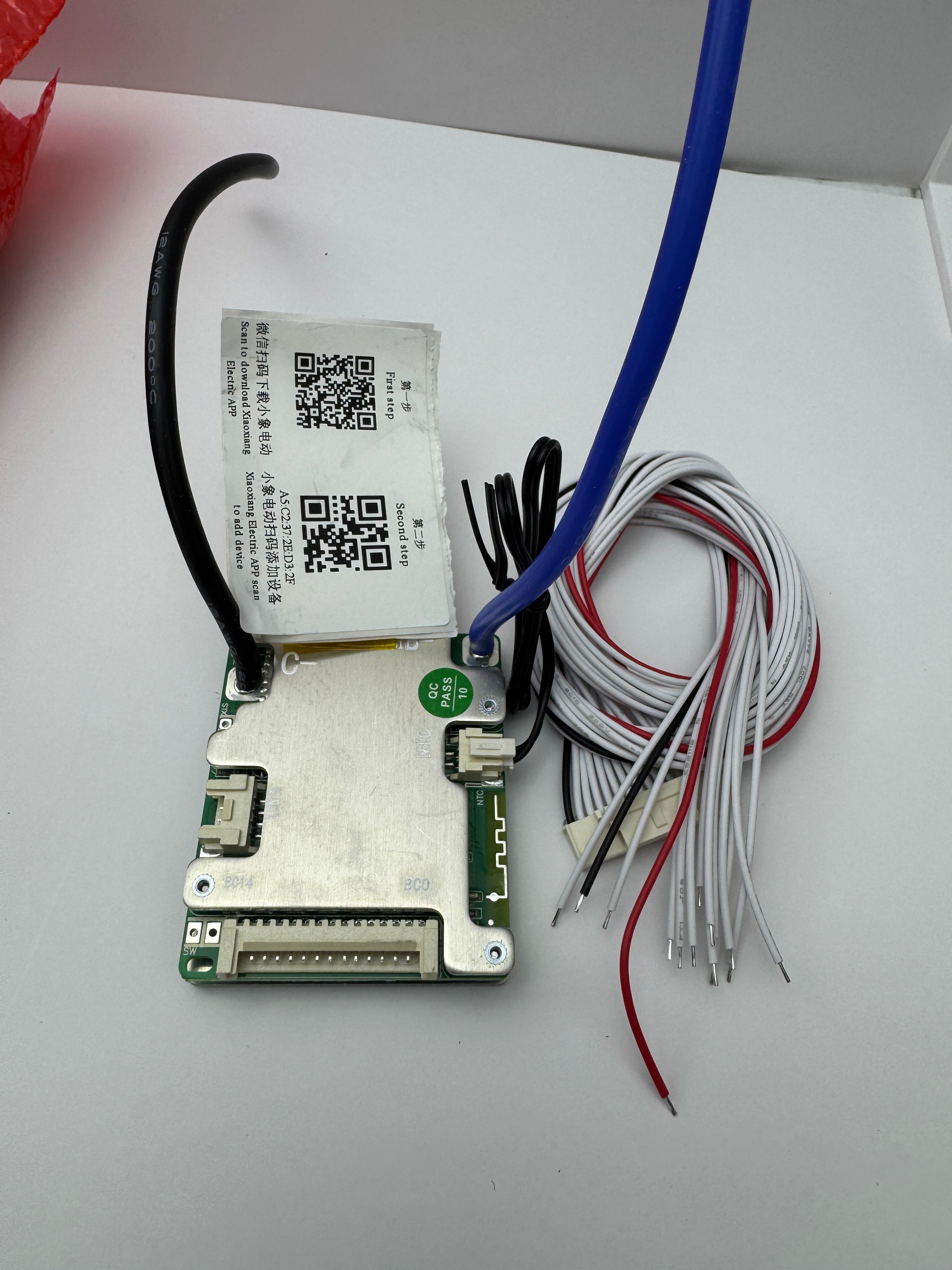

⑤ Package : BMS with built-in Bluetooth * 3 NTC * Wires
