Description

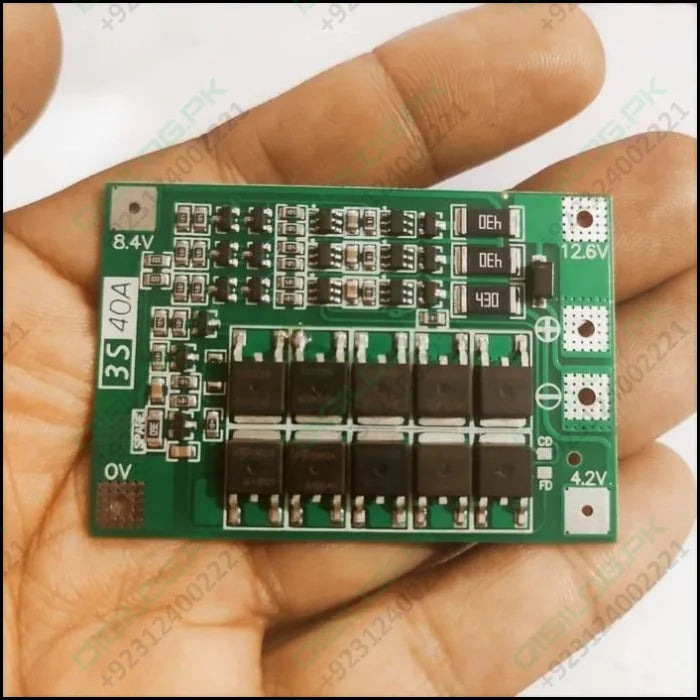

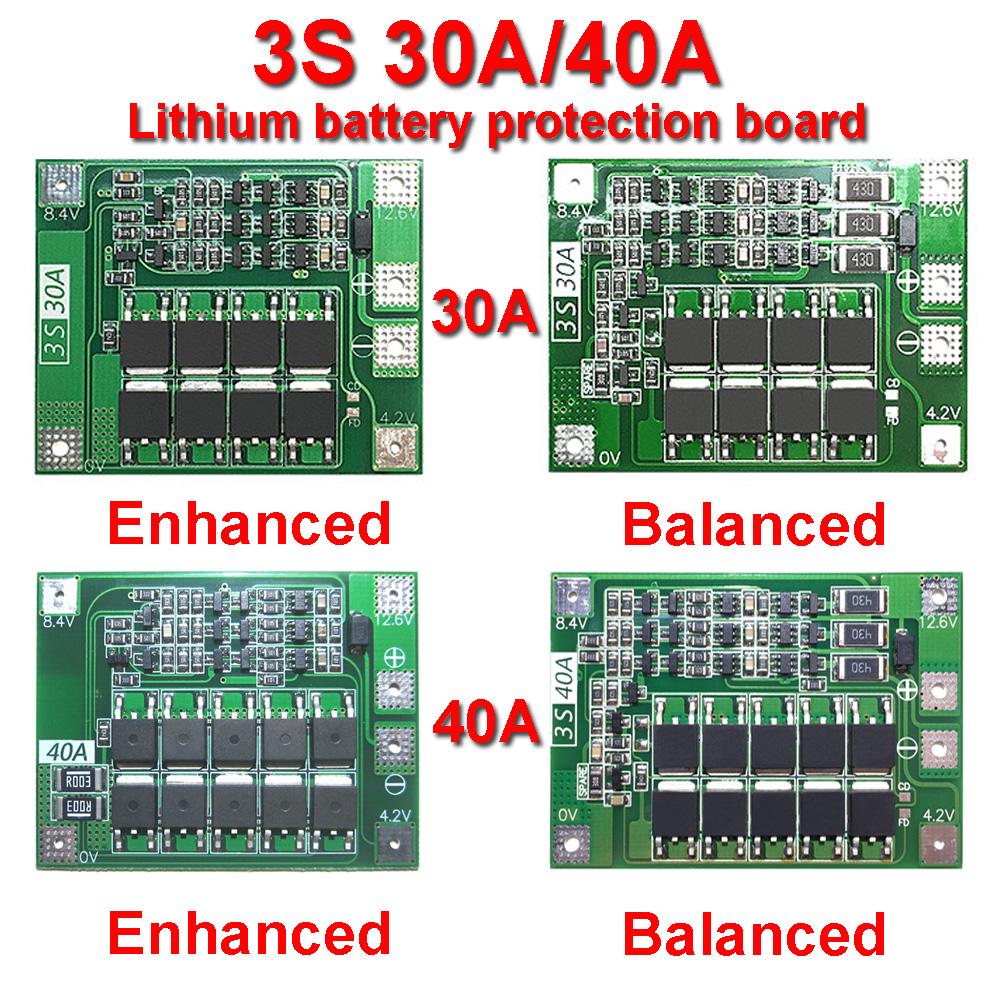

Upgrade your 3S lithium-ion battery packs with this 3S 40A BMS. Designed to provide overcharge, over-discharge, overcurrent, and short-circuit protection, this version also includes top balancing, ensuring all cells reach the same voltage at the end of the charge cycle for better performance and extended battery life.
Perfect for electric tools, drills, solar storage, and DIY battery projects, this BMS supports a 40A continuous discharge current, keeping your battery pack safe and efficient.
Key Features:
✅ Advanced Protection – Provides overcharge, over-discharge, overcurrent, and short-circuit protection.
✅ Top Balancing (Passive Balancing) – Ensures all cells reach the same voltage at 4.2V during charging for longer battery life.
✅ 40A Continuous Discharge – Supports up to 40A for high-power applications.
✅ Wide Compatibility – Works with 3.6V/3.7V lithium-ion batteries (18650, 21700, 26650, LiPo).
✅ Compact & Lightweight – Ideal for DIY battery packs.
✅ Reliable & Safe – Prevents voltage spikes and improves battery longevity.
Specifications:
- Battery Type: 3S (3-cell) Lithium-ion (Li-ion) / Lithium Polymer (LiPo)
- Compatible Cells: 18650, 21700, 26650, LiPo
- Nominal Voltage: 11.1V / 12.6V
- Charging Voltage: 12.6V - 13.6V
- Continuous Discharge Current: 40A
- Overcharge Voltage Range: 4.25V - 4.35V ± 0.05V
- Over-discharge Voltage Range: 2.3V - 2.7V ± 0.05V
- Balancing Voltage: 4.2V
- Balancing Current: 30mA-50mA (Passive Top Balancing)
- Operating Temperature: -40°C to +50°C
- Board Dimensions: 42mm x 55mm x 3.4mm

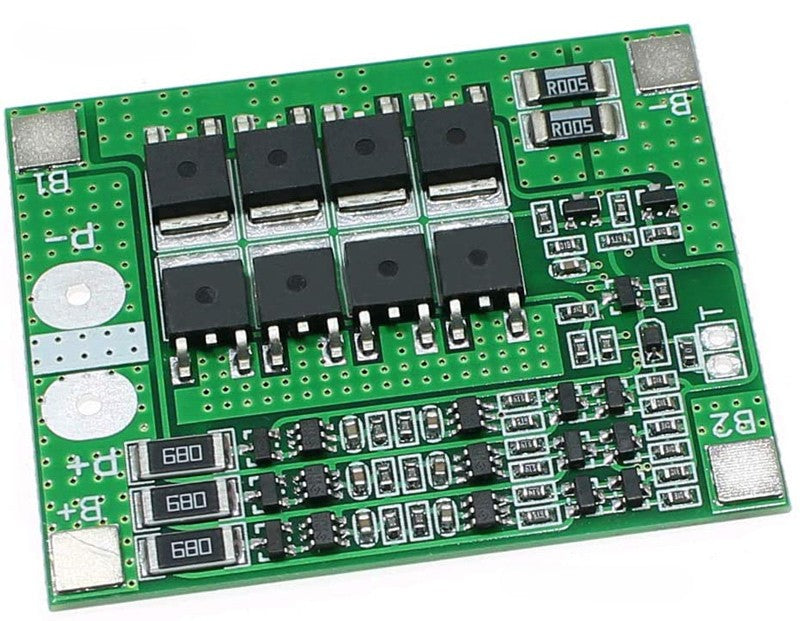

Wiring Instructions:
-
Battery Connections:
- B- (B0): Connect to the negative terminal of the first cell.
- B1: Connect to the positive of Cell 1 & negative of Cell 2.
- B2: Connect to the positive of Cell 2 & negative of Cell 3.
- B+ (B3): Connect to the positive of Cell 3.
-
Load/Output Connections:
- P- (Negative Output): Connect to the device/load negative terminal.
- P+ (Positive Output): Connect to the device/load positive terminal.
🔴 Note: Ensure all connections are secure and correctly wired to prevent damage.
Package Includes:
✔ 1 x 3S 40A BMS
Important Notes:

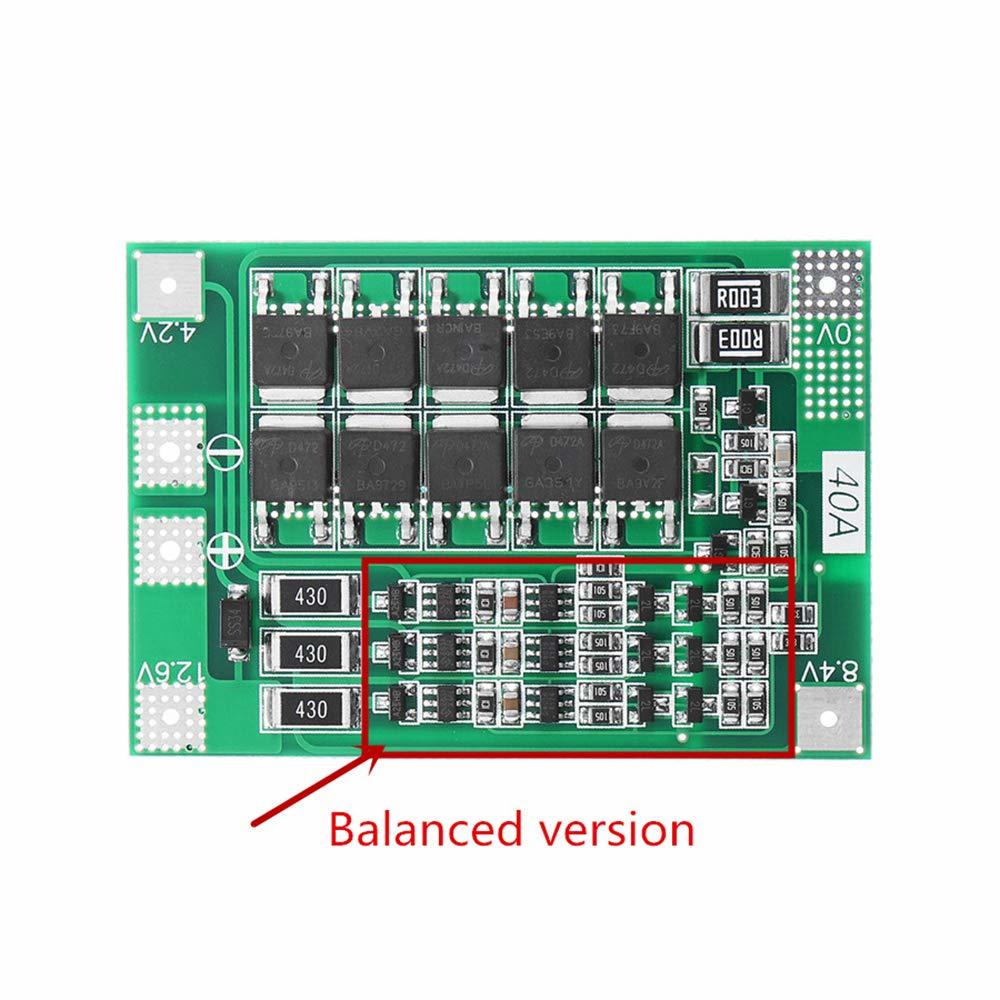

⚠ Top Balancing (Passive Balancing) – Ensures all cells reach 4.2V at the end of the charge cycle for even voltage distribution.
⚠ Not for Brushed Motors – If using with brushed motors, connect a non-polar capacitor (10µF-100µF, 25V+) across the motor terminals to prevent voltage spikes.
⚠ Do Not Short-Circuit – Ensure proper wiring to avoid short circuits and damage.
