For battery cells, review the product description for real-world current recommendations, testing notes, and application guidance. Manufacturer maximum ratings should be treated as limits, not the best target for long-term pack health.
Description
7S1P 21700 Tabless Drone / EDF Jet Battery Pack - 0.3mm Copper High-Performance
This custom-built 7S1P lithium-ion battery pack is assembled in-house by DIY500AMP for drones, EDF jets, RC aircraft, and compact high-power projects where low resistance and clean construction matter.
This is not a basic Li-ion pack. Every option uses premium 21700 cells, 0.3mm T2 copper internal construction, and an in-house build focused on serious RC and drone use.
Why This Pack Is Different
- Selectable cell models: choose the model for your capacity and application requirements, and follow its manufacturer operating limits.
- 0.3mm T2 copper current path: selected as the standard for maximum internal conductivity.
- Built in-house in Florida: assembled, inspected, and supported by DIY500AMP.
Configuration
- Series / Parallel: 7S1P (7 cells)

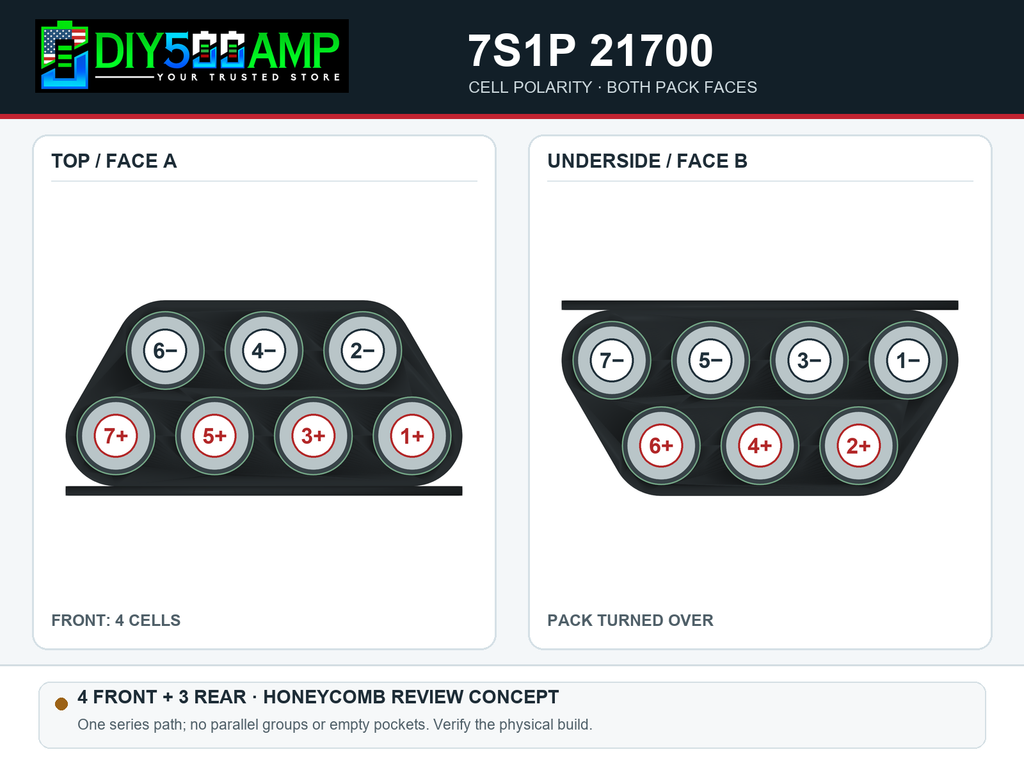

- Physical layout: Two staggered honeycomb rows: four cells in one row and three in the other (4+3).
- Nominal voltage estimate: 25.2V (using a 3.6V-per-cell calculation; the manufacturer's nominal voltage varies by cell model)
- Full charge voltage: 29.4V
- Discharge protection: Follow the selected cell manufacturer's data sheet and configure suitable BMS or controller protection for the pack. Monitor individual cell-group voltage; pack voltage alone does not establish a safe low-voltage cutoff.
- Interconnect: 0.3mm T2 copper
- Output leads: 10 AWG or 12 AWG silicone wire
Cell Options and Estimated Energy
- EVE 40PL / Ampace JP40: about 4Ah / 101Wh
- EVE 50PL / TENPOWER 50XG / Reliance RS50 / Ampace JP50P1: about 5Ah / 126Wh
- LinkData 55P: about 5.5Ah / 139Wh
- LinkData 65P: about 6.5Ah / 164Wh - top premium runtime option
Cable Gauge
- 12 AWG: lighter and more flexible.
- 10 AWG: recommended for higher current demand and aggressive throttle.
Actual usable capacity depends on current draw, temperature, airflow, and cutoff voltage. Energy estimates use a 3.6V-per-cell calculation; actual energy varies by cell model and operating conditions.
Optional installed connector
XT90 connector installed: +$7 per pack. XT60 connector installed: +$5 per pack (12 AWG cables required). Select one connector option above, or leave both unchecked for bare output leads.
Production Time
This is a custom-built pack. Build time depends on order volume, selected cell availability, and connector requirements.
Safety Warning
Lithium-ion battery packs require proper handling, charging, storage, and protection. Do not short, puncture, crush, overcharge, over-discharge, expose to water, or expose to excessive heat. Use only with proper chargers and properly designed systems. Use at your own risk.
Orders ship from Florida when inventory is available. Lithium-ion cells require proper handling, protected packs, correct chargers, and safe storage. Do not solder directly to battery terminals.
Payment and Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
DIY500AMP.COM custom-built 21700 pack
7S1P · Staggered 4+3 honeycomb

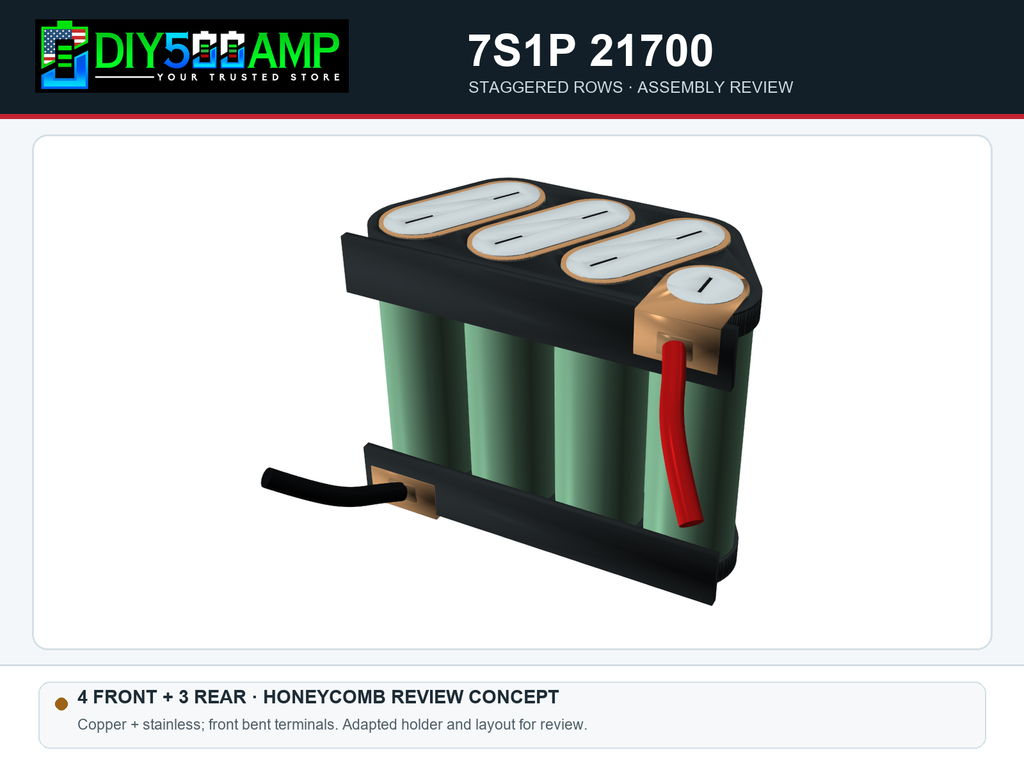

CAD review illustrations of the selected cell arrangement, with copper busbars, slotted stainless steel and both output leads exiting at the front. Holder geometry, conductor routing and cable weld positions still require confirmation before fabrication.
Concept rendering — final physical layout under review
