For battery cells, review the product description for real-world current recommendations, testing notes, and application guidance. Manufacturer maximum ratings should be treated as limits, not the best target for long-term pack health.
Description

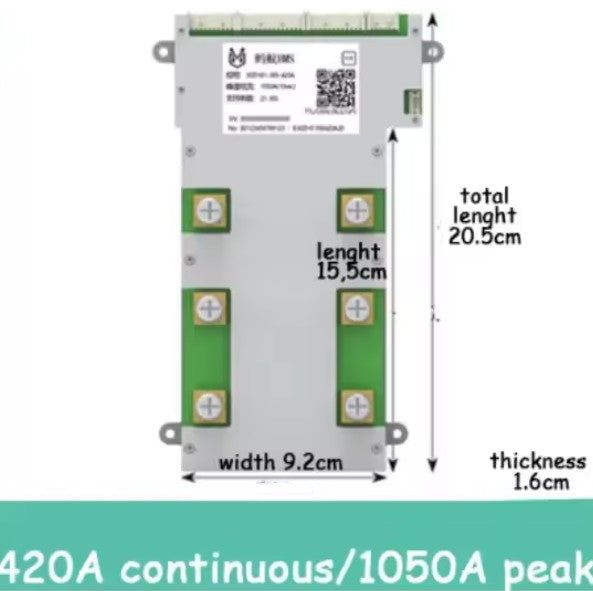

This is the newest version of the ANT 420A BMS, designed for serious high-discharge lithium battery builds. With built-in Bluetooth, cross-platform app support, and full protection features, it’s ideal for high-performance EVs, aviation, solar storage, and industrial battery packs.
Key Specs:
-
Max Continuous Discharge: 420A
-
Peak Discharge (10 sec): 1050A
-
Supported Cell Types: Li-ion, LiPo, LiFePO4, LTO
-
Supported Configs:
-
Li-ion: 24S to 30S
-
LiFePO4: 26S to 30S
-
-
Balance Method: Passive
-
Balance Current: 100mA
-
Built-in Bluetooth: Yes (Android/iOS support)
-
Voltage Detection per Cell: 0–5V (typical error <10mV)
-
Temp Monitoring: -40°C to 125°C (with included sensors)
-
Power Supply: Self-powered by battery (20V–120V)
-
Current Sensing: -200A to 500A with <0.5% FSR error
-
Operating Power Consumption: <4mA
-
Standby Power: <2mA
-
SOC Estimation Accuracy: <8% under standard use
Included in Package:
-
ANT 420A BMS (pre-configured for your selected pack type)
-
Wiring harness with battery leads
-
Multiple temperature sensors
-
Power-on wires
-
App download instructions for iOS, Android, and PC
Optional Add-Ons (Sold Separately):
-
2.8” or 4.3” LCD display screen
-
USB PC adapter for wired diagnostics
-
CAN/RS485/Modbus modules (custom order required)
Compatibility Notes:
-

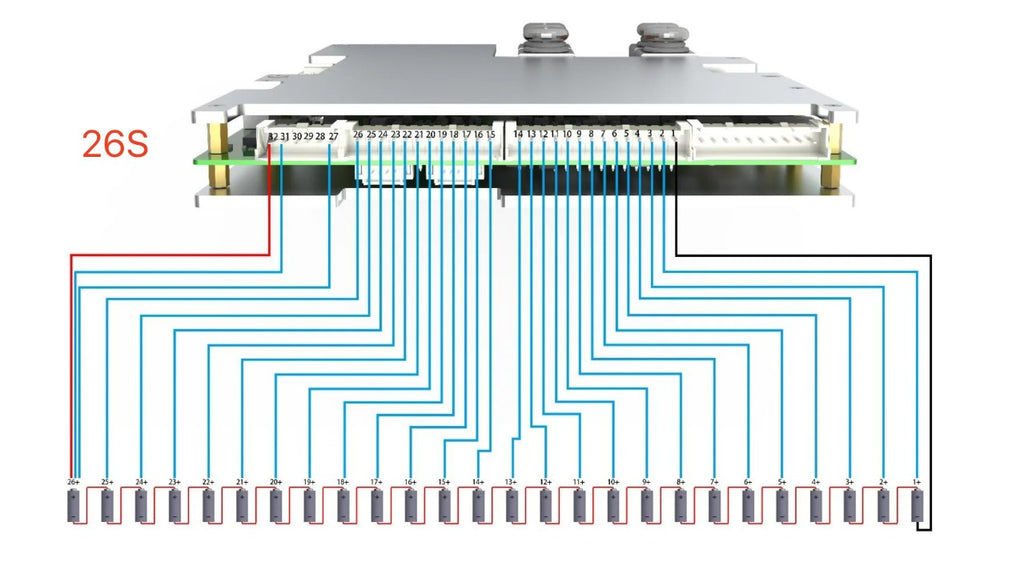

The 420A model supports 24S–30S Li-ion or 26S–30S LiFePO4 configurations.
-
LCD displays above 24S may not be compatible unless using the 2.8” screen.
-
App and LCD cannot be used simultaneously.
🔋 DIY500AMP.COM – Trusted BMS Solutions for Demanding Battery Builds
Orders ship from Florida when inventory is available. Lithium-ion cells require proper handling, protected packs, correct chargers, and safe storage. Do not solder directly to battery terminals.
