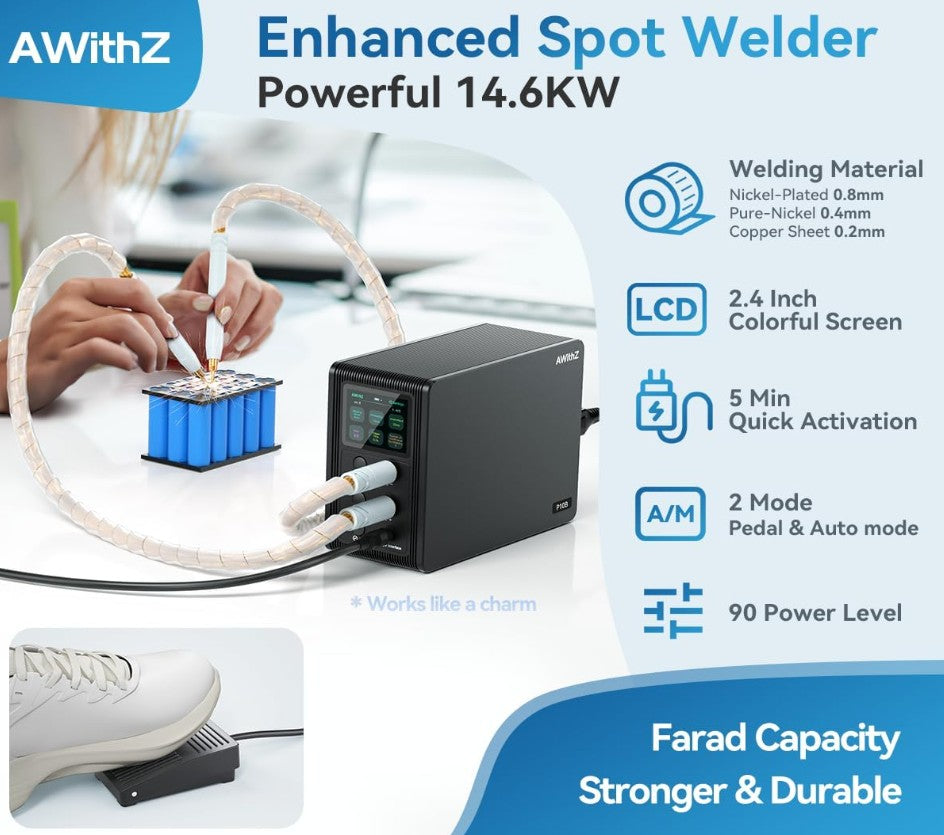

AWithZ P20B Spot Welder 14.6 kW

Build And Repair Battery Packs

Battery welding can build 18650/21700/26650/326650 battery packs.

Building Ebike Pack

Using old product batteries and replacing them with damaged ones can give them new vitality and save money.

Repairing the 18650 battery cell packs for drills and other tools

Transplantation of Mobile Phone Batteries

Repair laptop batteries and car batteries.

When your laptop battery is not durable and often charges for several hours, then quickly runs out of battery, you can purchase a laptop battery and transplant the original protective board onto the purchased battery, allowing your phone to last for several more years.

Different materials can be spot welded.

Repair various products with batteries.

Such as handheld drills, electric fans, electric bicycles, remote-controlled vehicles, pet nail grinding tools, etc., to revive old equipment and protect the environment.

14.6KW High Output Welding Power

Please Note:

1. After buying the product, please use it while charging.
2. In the use of is, please first in the waste material to practice, not directly on the operation of your can use the battery, otherwise may be unfamiliar with and damage your battery, so please familiarize yourself with the practice of our spot welder many times.
3. When spot welding, please make sure to press hard on the material, so that your material and the metal part of the battery are close to each other with no gap, if there is a gap, it may make your material and the battery have a very big hole, or even spot through the battery.
4. If you want to use it to add length to your battery lugs, please put a flat thing under your battery, you can't just put nickel sheets on top of the lugs and spot weld them directly, you need a flat thing under the lugs to place the lugs.
5. This is a high power spot welder, there will be a small amount of sparks generated during the spot welding process, so it is recommended to wear goggles.

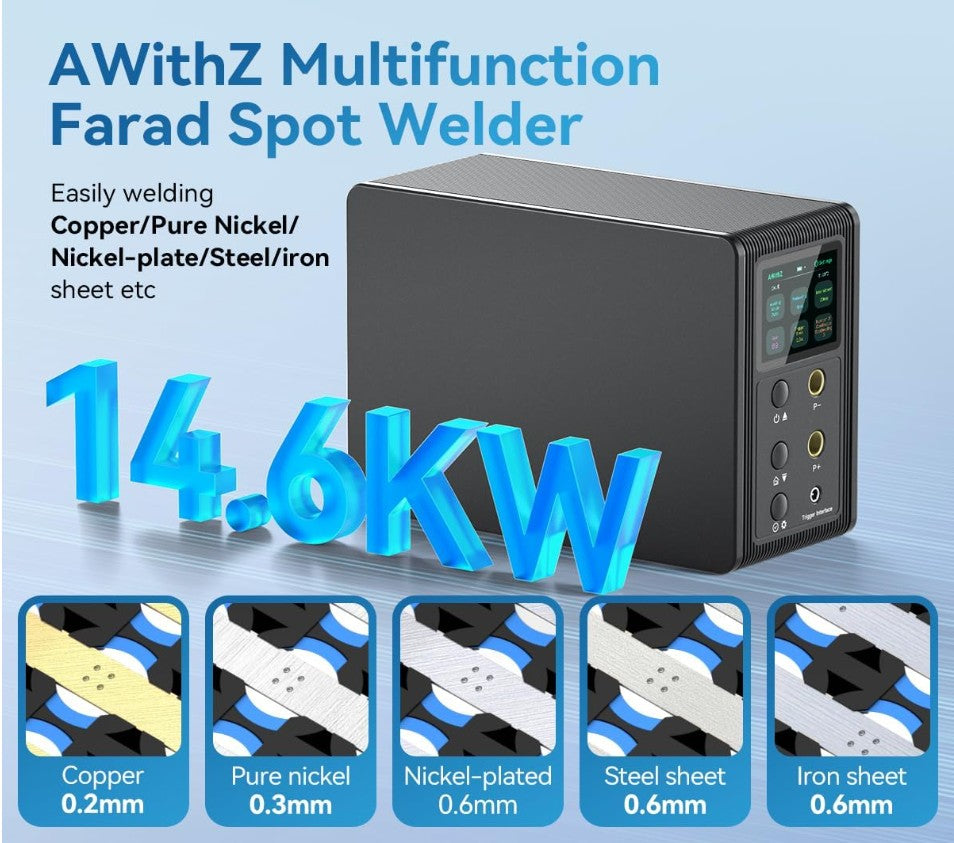

AWithZ spot welder super energy-gathered pulse welding technology combines with a max welding power of 14.6KW to provide a reliable welding effect.

0.6mm nickel plated sheet

0.6mm steel sheet

0.6mm iron sheet

0.3mm pure nickel sheet(Requires flux)

0.2mm copper sheet(Requires flux)

Materials such as these can be spot welded, and even thicker materials may be welded.

For building battery packs, this spot welding machine is professional.

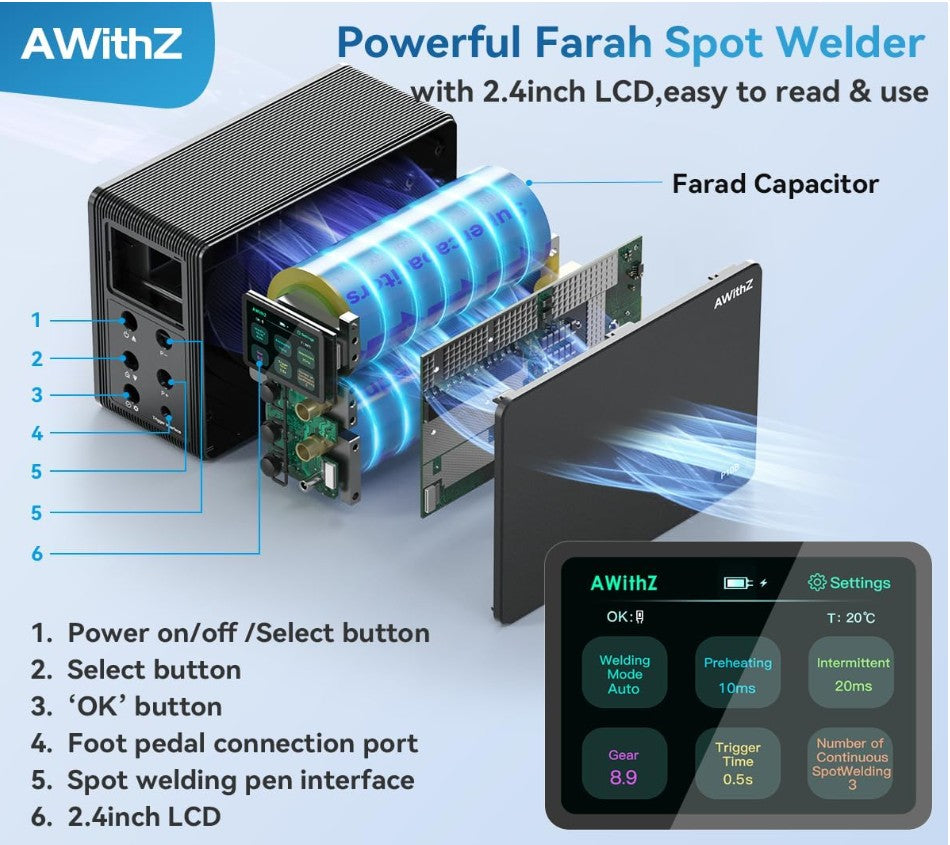

2.4 Inches LCD Display Screen

The display screen has a 2.4-inch display and is equipped with a UI in 7 languages, which basically matches your local language.

The actual pulse time(welding power) grade, Mode and Gear are displayed on the LCD screen.

We use a wide voltage input of 100-240V and an adapter of 15amp high current for fast charging Connect the spot welding machine to the power supply using our adapter, and quickly reach the spot welding mark within 5 minutes (the display screen shows OK for spot welding), which can be used anywhere in the world.

Here are a few suggestions that we hope can help you.

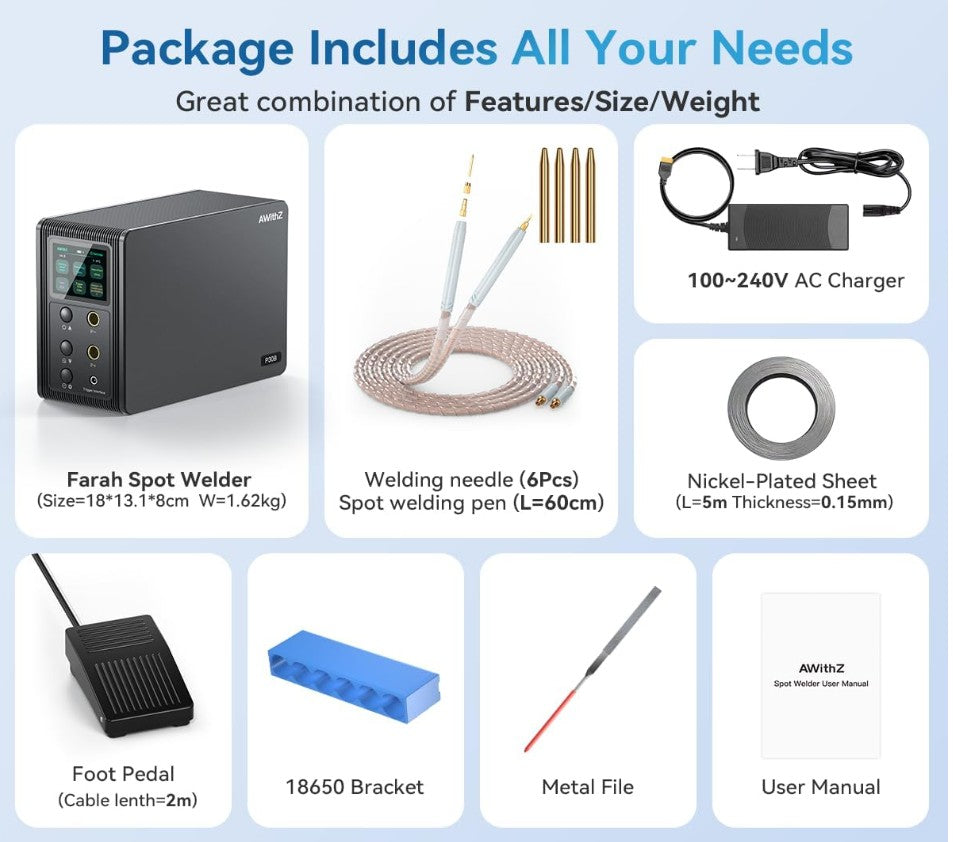

1.We have equipped 3 pairs of spot welding pen tips. When installing the pen tips, please install them firmly. If they are not installed firmly, spot welding may not be possible.

2.When there is too much spark during spot welding, please use a file to friction the spot welding pen. The reason for excessive sparks is that the gear is too high, the spot welding pen is severely oxidized, and the power of the spot welding pen is too high.

3.If you use it for a long time, it may cause the temperature of the spot welding machine to be too high, causing the output function of the spot welding machine to be temporarily turned off and unable to work. Please wait for the machine to cool down before restarting. Because the machine is equipped with high temperature protection measures. If the temperature is too high, it may cause the machine to not work.

4. The most important thing is for you to practice multiple times and become familiar with the product. Please gradually familiarize yourself with the minimum gear and wear protective equipment when using it.
