For battery cells, review the product description for real-world current recommendations, testing notes, and application guidance. Manufacturer maximum ratings should be treated as limits, not the best target for long-term pack health.
Description

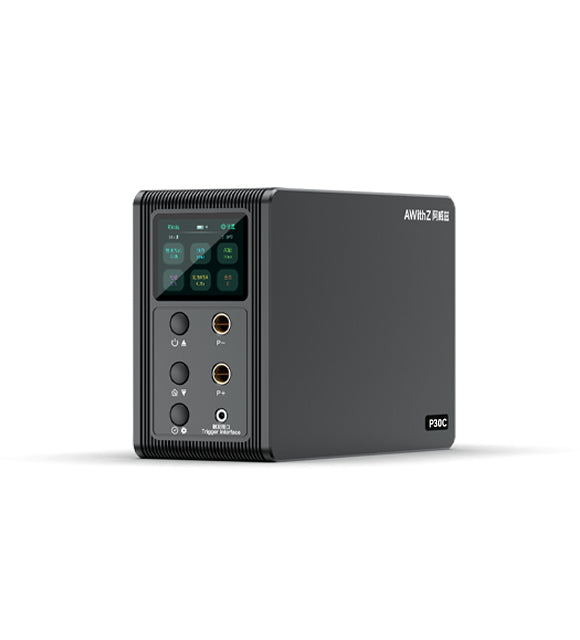

AWithZ P30C capacitor spot welder
The AWithZ P30C is a capacitor-discharge spot welder for battery-tab and strip welding, with automatic and foot-pedal triggering. Ships from Florida when in stock.
Features and specifications
| Model | AWithZ P30C |
|---|---|
| Welding system | Capacitor energy storage |
| Maximum pulse welding power | 21.8 kW |

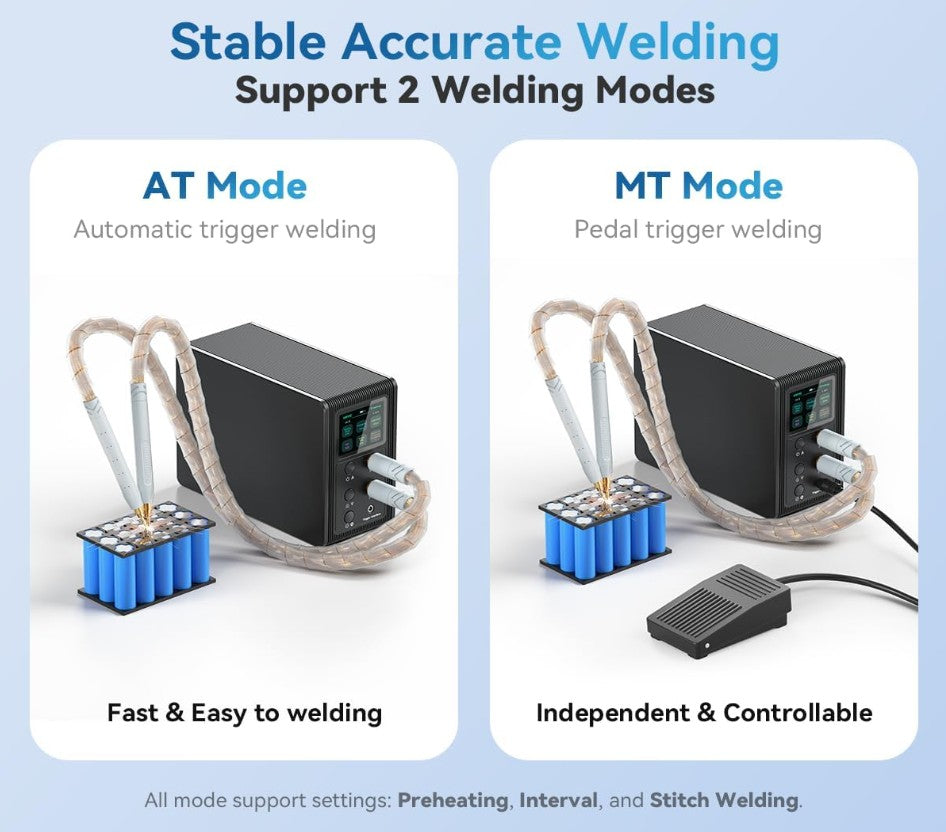

| Trigger modes | Automatic and foot pedal |
| Adjustment | 999 adjustable gear settings |
| Display | 2.4-inch LCD |
| Supplied charging adapter | 100–240 V AC input; 15 A rated charging output |
The 21.8 kW rating describes a brief welding pulse, not continuous output or wall-outlet power consumption. The adapter's 15 A rating refers to its charging output, not mains input current.
Material thickness guidance

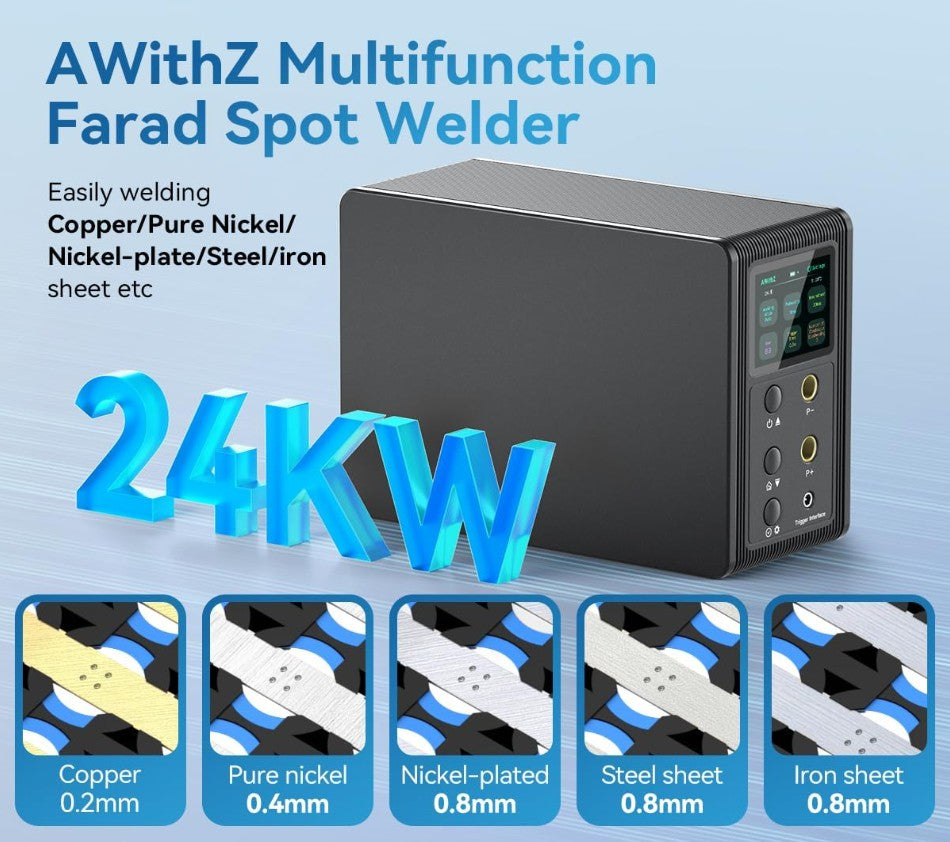

Rated welding thicknesses: up to 0.4 mm pure nickel, 0.2 mm copper, and 0.8 mm nickel-plated sheet. Results depend on material grade, layer arrangement, electrode condition, pressure, and settings. Validate your exact material stack on suitable test pieces before working on cells.
Safe setup and use
- Read the supplied manual. Wear eye protection and work on a stable, nonflammable surface with ventilation and a clear work area.
- Use the supplied adapter, wait for the ready indication, and keep the welder connected to its charger during use as instructed.
- Start at a low setting and practice on test material. Inspect weld strength before assembling a pack; excessive energy or poor contact can burn through a cell casing.
- Secure and maintain the welding tips. Use steady pressure and firm contact. Never bridge a cell's positive and negative terminals with the probes or conductive strip.
- If the welder overheats or stops output, stop and allow it to cool. Do not bypass protection features or use damaged cells.
- A completed battery pack requires appropriate insulation, fusing, BMS protection, conductor sizing, a compatible charger, and thermal management. A welder does not make an unsafe pack design safe.
Need help matching materials to your project? Contact DIY500AMP support.
Manuals and setup guide

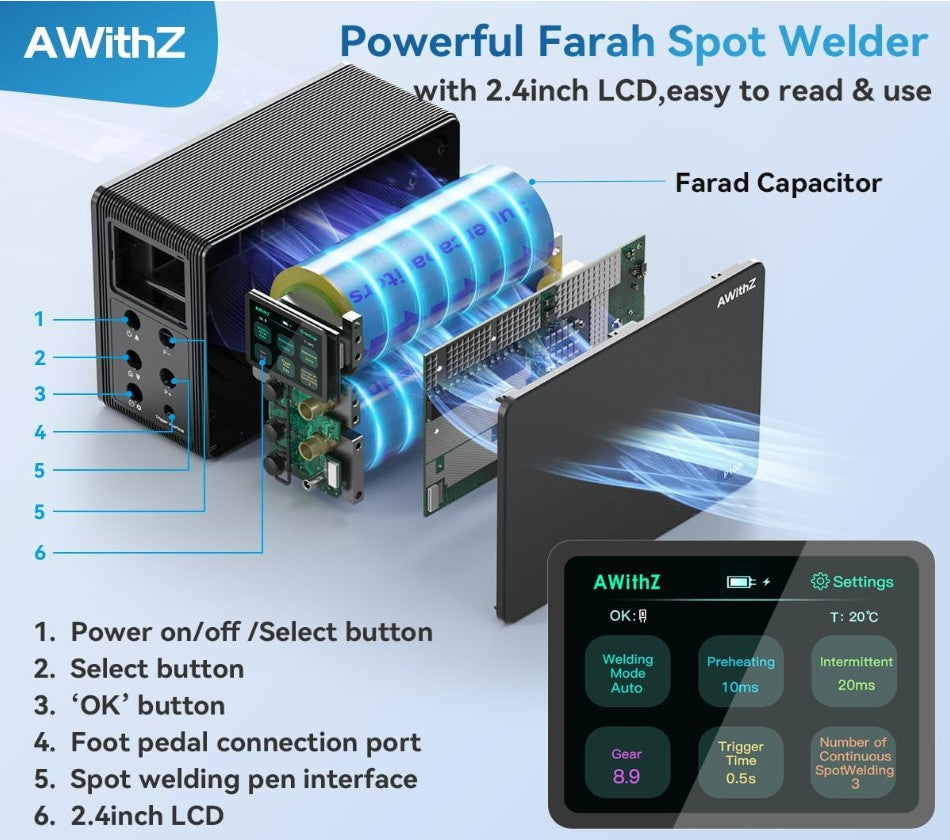

The display provides separate adjustments for welding mode, output level, preheat, pulse interval, trigger delay, and repeat count. Preheat sets the first pulse, the interval sets the pause before the main weld, and trigger delay controls the wait after electrode contact in automatic mode.
AWithZ links this shared controls and setup guide from its P30C product page. It is an operating guide, not a model-specific performance specification. Follow the markings and instructions supplied with your unit for electrical ratings.
Orders ship from Florida when inventory is available. Lithium-ion cells require proper handling, protected packs, correct chargers, and safe storage. Do not solder directly to battery terminals.
Payment and Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
O

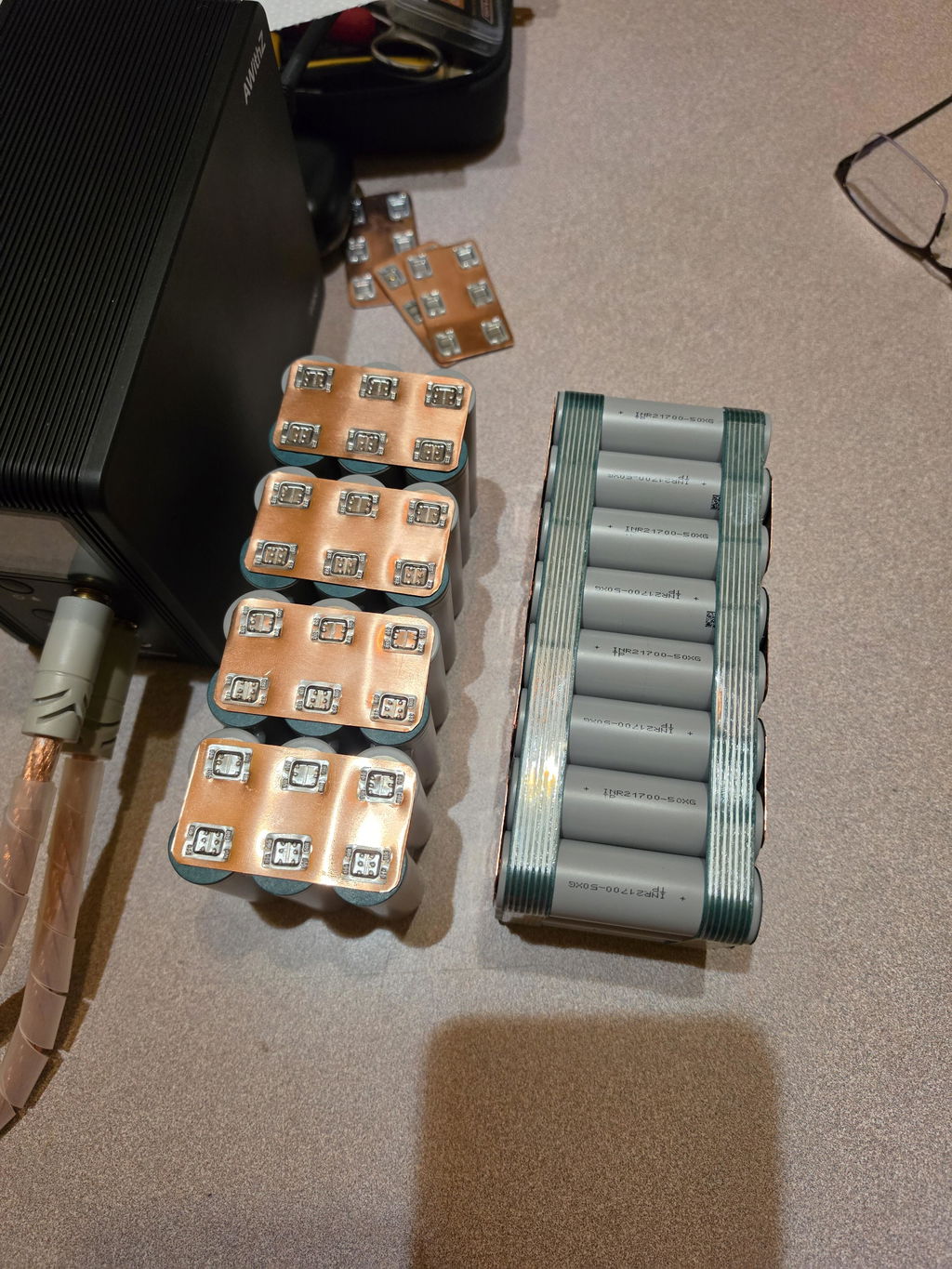

Super awesome welder, spot welds 0.3mm copper, anything under you have to be careful with your gear settings because of power this welder is capable of. Super easy menu navigation, charges very fast overall great value for the price.
