Description
Product Description
Needs to be used while charging

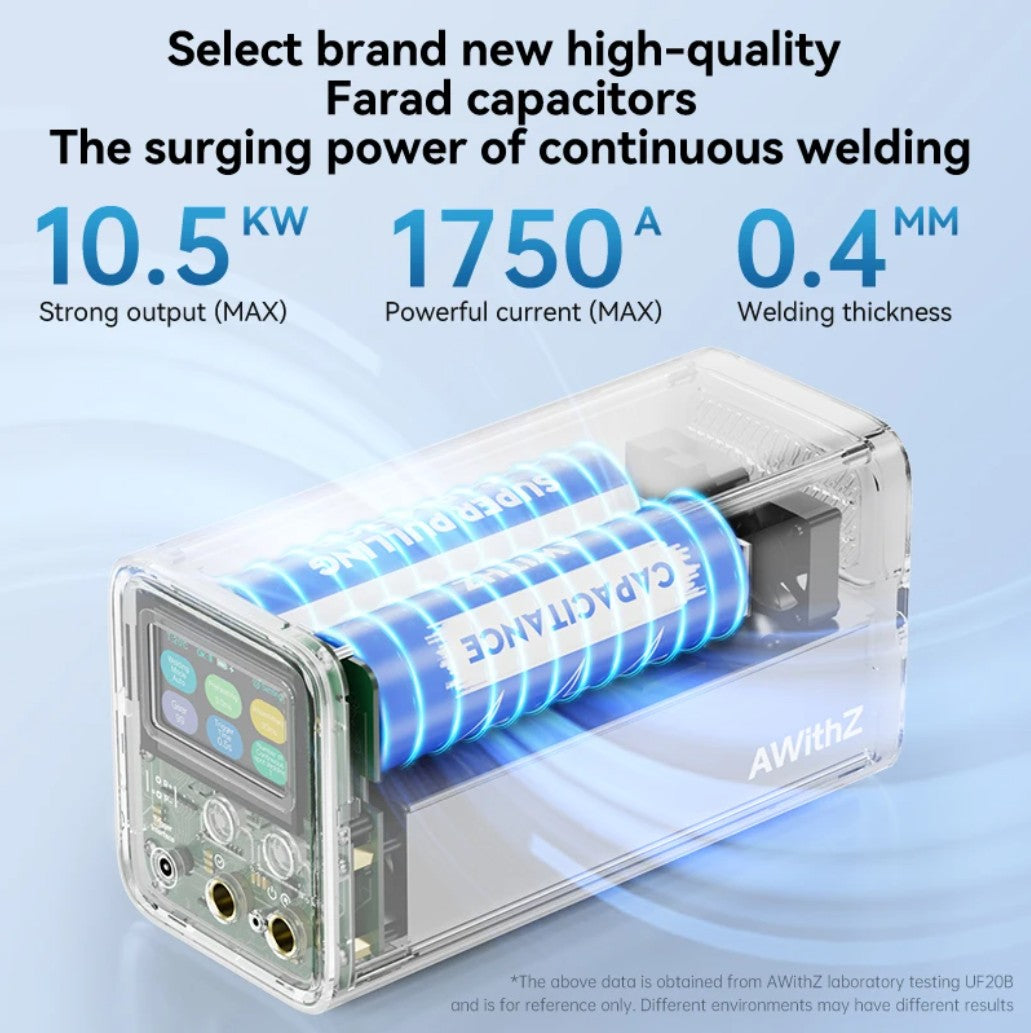

UF20B Built-in Farad Capacitor
Supports global voltage, input voltage is 100-240V.
Built-in adapter makes the spot welder look neater.
UF20B can't store power, you need to charge it while using it.
When you find unplugging the power supply, it can still be turned on because there is only a little bit of power inside, after that it will slowly consume by itself.
If you are a beginner, please read our instruction manual, use our matching nickel sheet to practice more, find the force of hand pressure, familiar with the welding machine.
Build And Repair Battery Packs
Battery welding can build 18650/21700/26650/326650 battery packs.
Building Ebike Pack
Using old product batteries and replacing them with damaged ones can give them new vitality and save money.
Repairing the 18650 battery cell packs for drills and other tools
Transplantation of Mobile Phone Batteries
Repair laptop batteries and car batteries.
When your laptop battery is not durable and often charges for several hours, then quickly runs out of battery, you can purchase a laptop battery and transplant the original protective board onto the purchased battery, allowing your phone to last for several more years.
Different materials can be spot welded.
Repair various products with batteries.
Such as handheld drills, electric fans, electric bicycles, remote-controlled vehicles, pet nail grinding tools, etc., to revive old equipment and protect the environment.
10.5 KW High Output Welding Power
- After buying the product, please use it while charging.
- In the use of is, please first in the waste material to practice, not directly on the operation of your can use the battery, otherwise may be unfamiliar with and damage your battery, so please familiarize yourself with the practice of our spot welder many times.
- When spot welding, please make sure to press hard on the material, so that your material and the metal part of the battery are close to each other with no gap, if there is a gap, it may make your material and the battery have a very big hole, or even spot through the battery.
- If you want to use it to add length to your battery lugs, please put a flat thing under your battery, you can't just put nickel sheets on top of the lugs and spot weld them directly, you need a flat thing under the lugs to place the lugs.
- This is a high power spot welder, there will be a small amount of sparks generated during the spot welding process, so it is recommended to wear goggles.

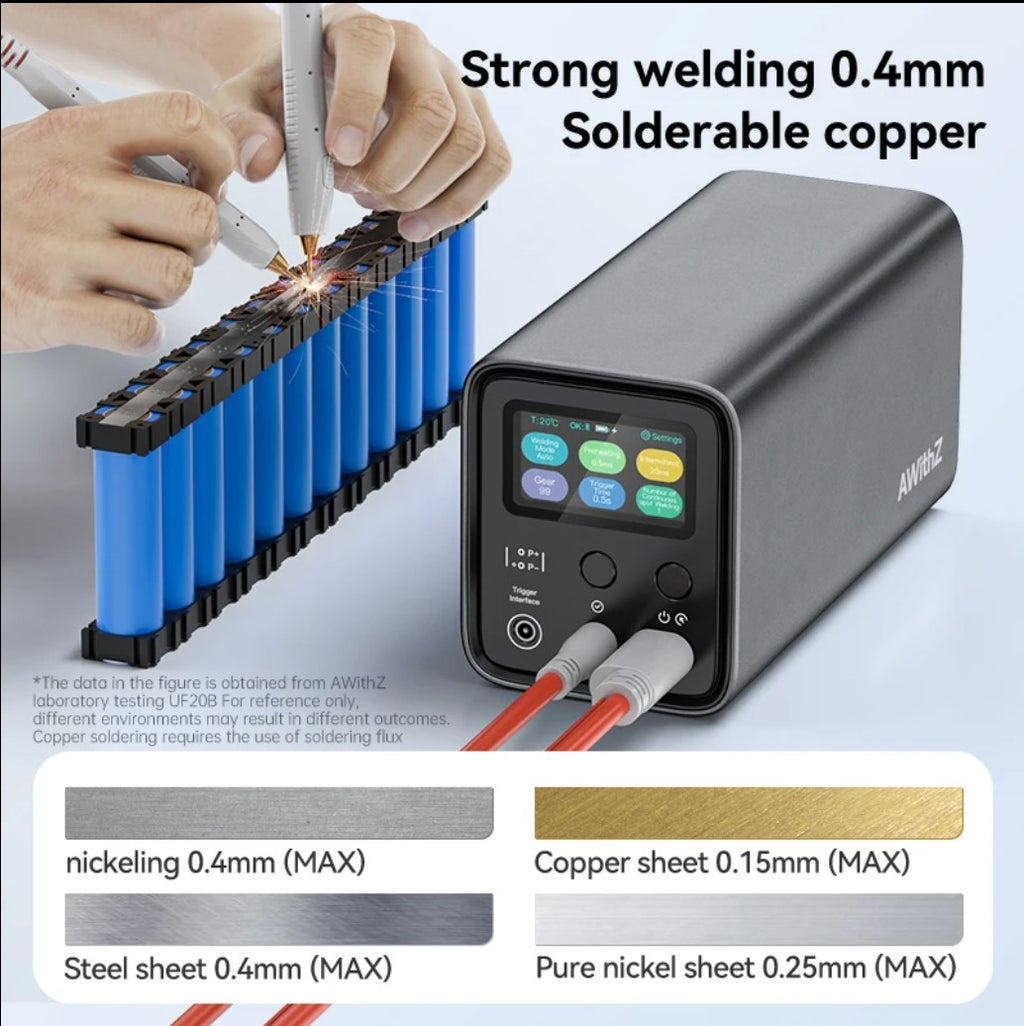

0.4mm nickel plated sheet
0.4mm steel sheet
0.4mm iron sheet
0.1mm pure nickel sheet(Flux required)
0.1mm copper sheet (Flux required)
Materials such as these can be spot welded, and even thicker materials may be welded.
For building battery packs, this spot welding machine is professional.

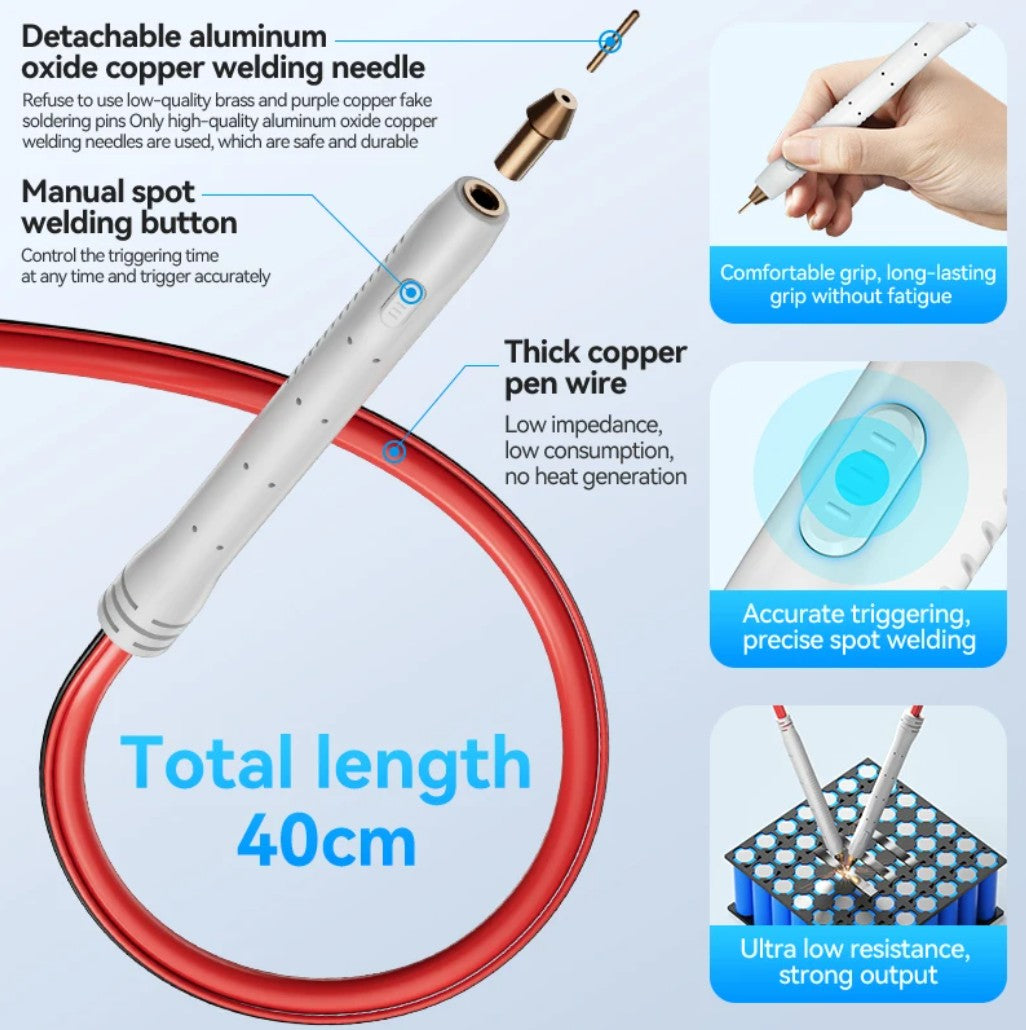

Spot Welder Lead Pens
The new intelligent hand-controlled pen is controlled at will and triggered precisely.
On the basis of automatic spot welding, the intelligent hand-control welding pen is created again, which can control the trigger time at any time and spot weld meticulously and more accurately, and it can really be controlled at will and triggered accurately.
Removable Aluminum Oxide Copper Soldering Pins
Refuse to use low-quality brass, purple copper fake welding needle only use high quality aluminum oxide copper real welding needle, safe and durable.
Manual welding button
Control the trigger time at any time, precise trigger
Comfortable to hold, not tired after a long time
Foot Pedal Mode
The spot welder is set up to attach a foot pedal. This frees up both of your hands to pinpoint your position and then step on the pedal on the floor, making it easy to get your job done.

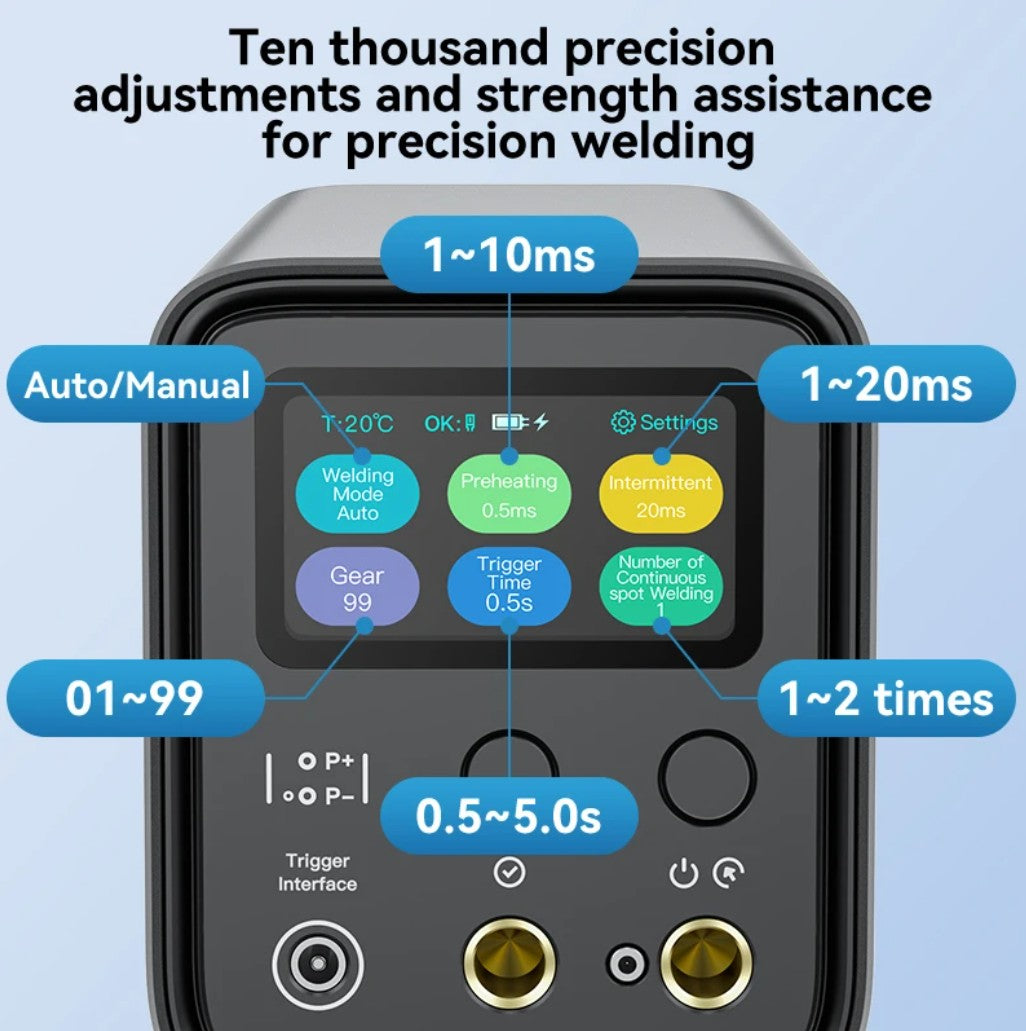

Button Marker
We've labeled the buttons next to each one so that you can be very clear about what the button means without an instruction manual or other documentation.
Aluminum Alloy Material
The spot welder has a rounded curved appearance so that our body parts won't get cut when we touch them. The shell is made of aluminum alloy, which is very tough and strong, very safe.
Orders ship from Florida when inventory is available. Lithium-ion cells require proper handling, protected packs, correct chargers, and safe storage. Do not solder directly to battery terminals.
