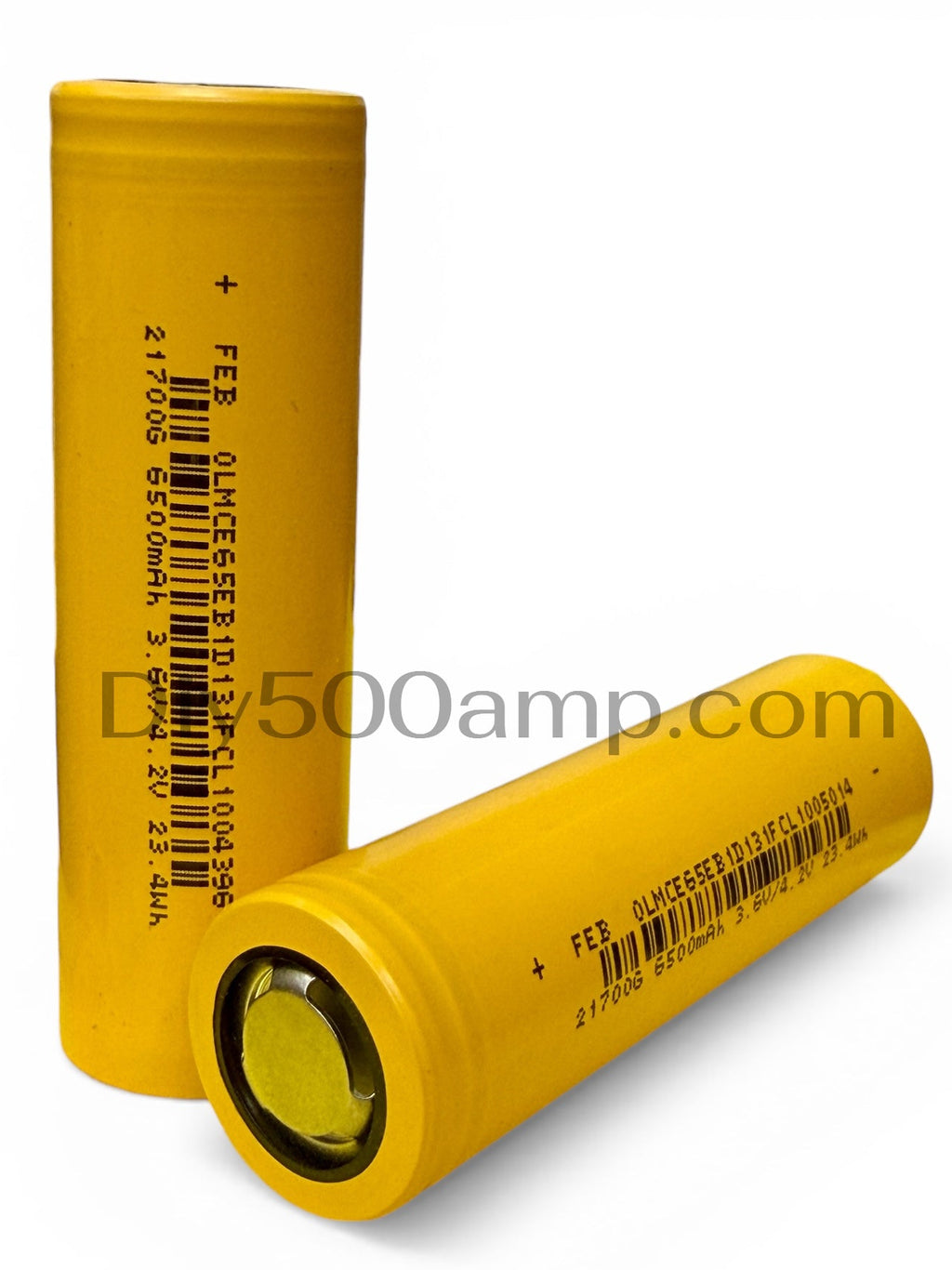

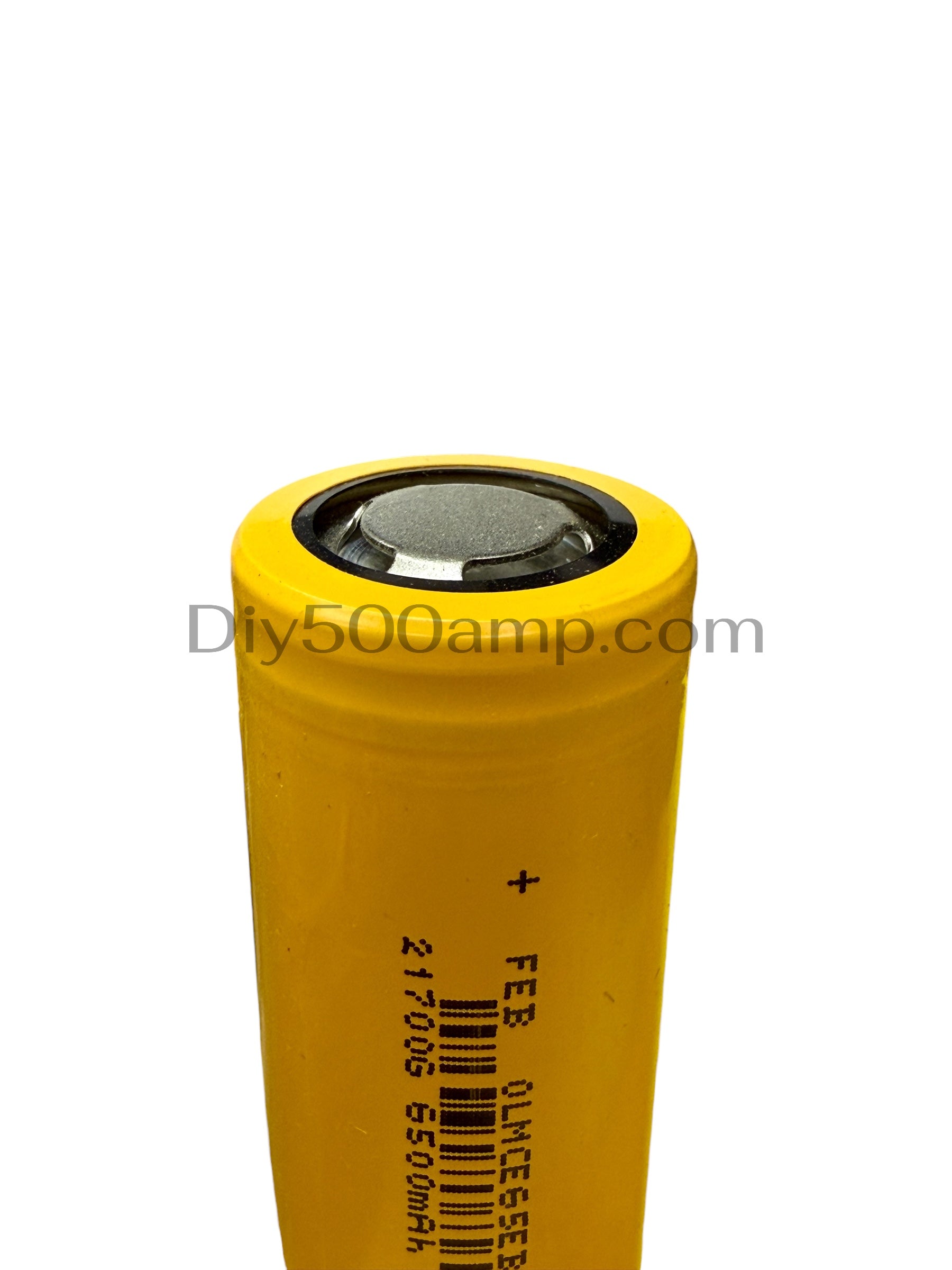

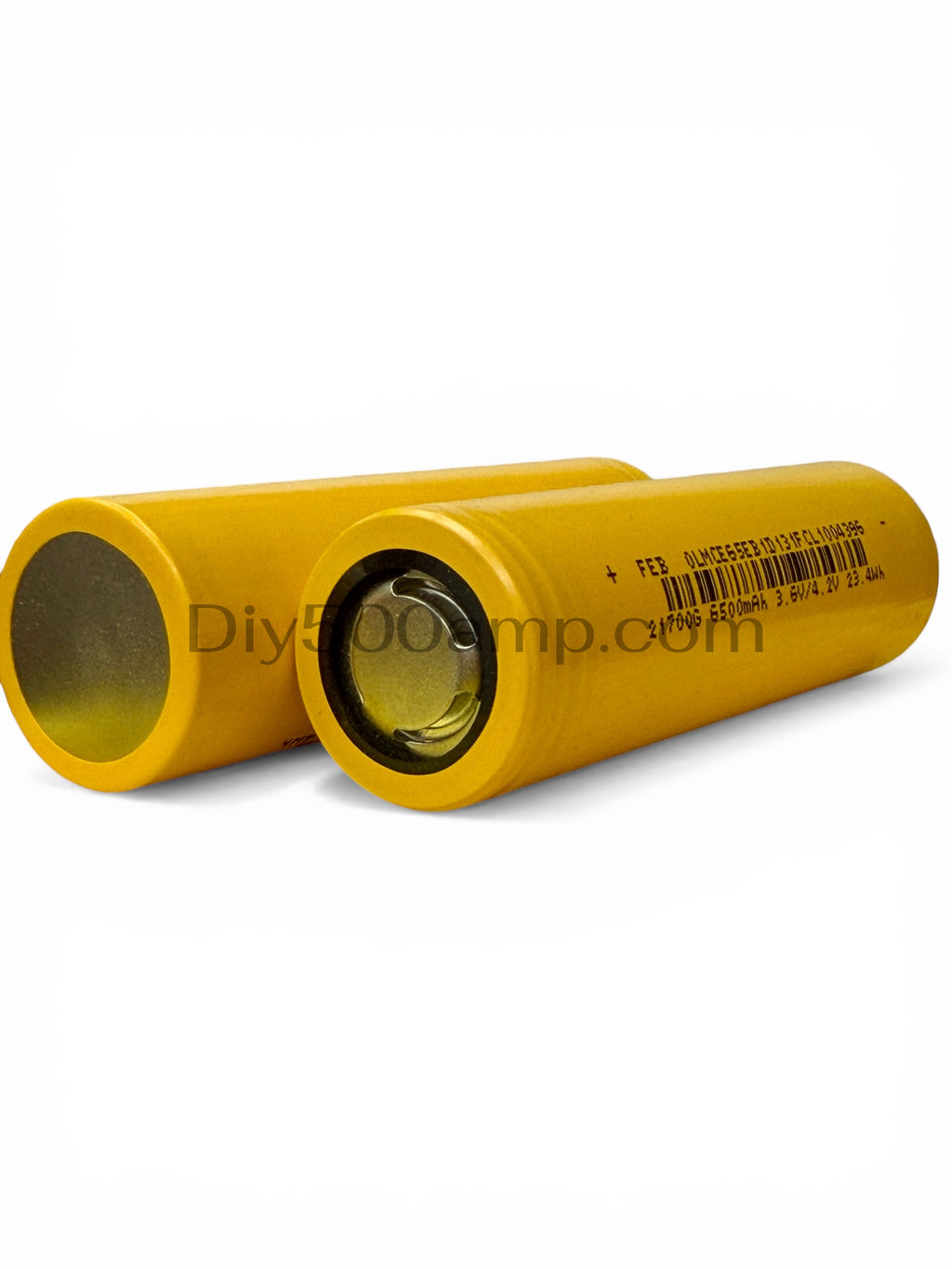

FEB 21700 Battery Cell – 6500mAh 13A Ultra High Capacity Energy Cell

FEB 21700 Battery Cell – 6500mAh 13A (Max) Ultra High Capacity Energy Cell

The FEB 21700 6500mAh lithium-ion battery cell is designed for applications where maximum runtime and energy density are the priority.

This is one of the highest energy density cylindrical cells available, delivering approximately 23.4Wh per cell in a compact 21700 format.

Built by Far East Battery (FEB), this cell is optimized for efficiency, stability, and long-duration performance rather than extreme current output.

The FEB 6500mAh cell has also been evaluated in engineering simulation environments, where its voltage behavior, thermal response, and runtime performance are analyzed for real-world applications.

Important: This is a high-capacity energy cell, not a high-discharge power cell.

Applications include:

• High-capacity battery packs
• Solar energy storage systems
• Portable power stations
• Low to medium current builds
• Long-range e-bike builds (multi-parallel configurations)

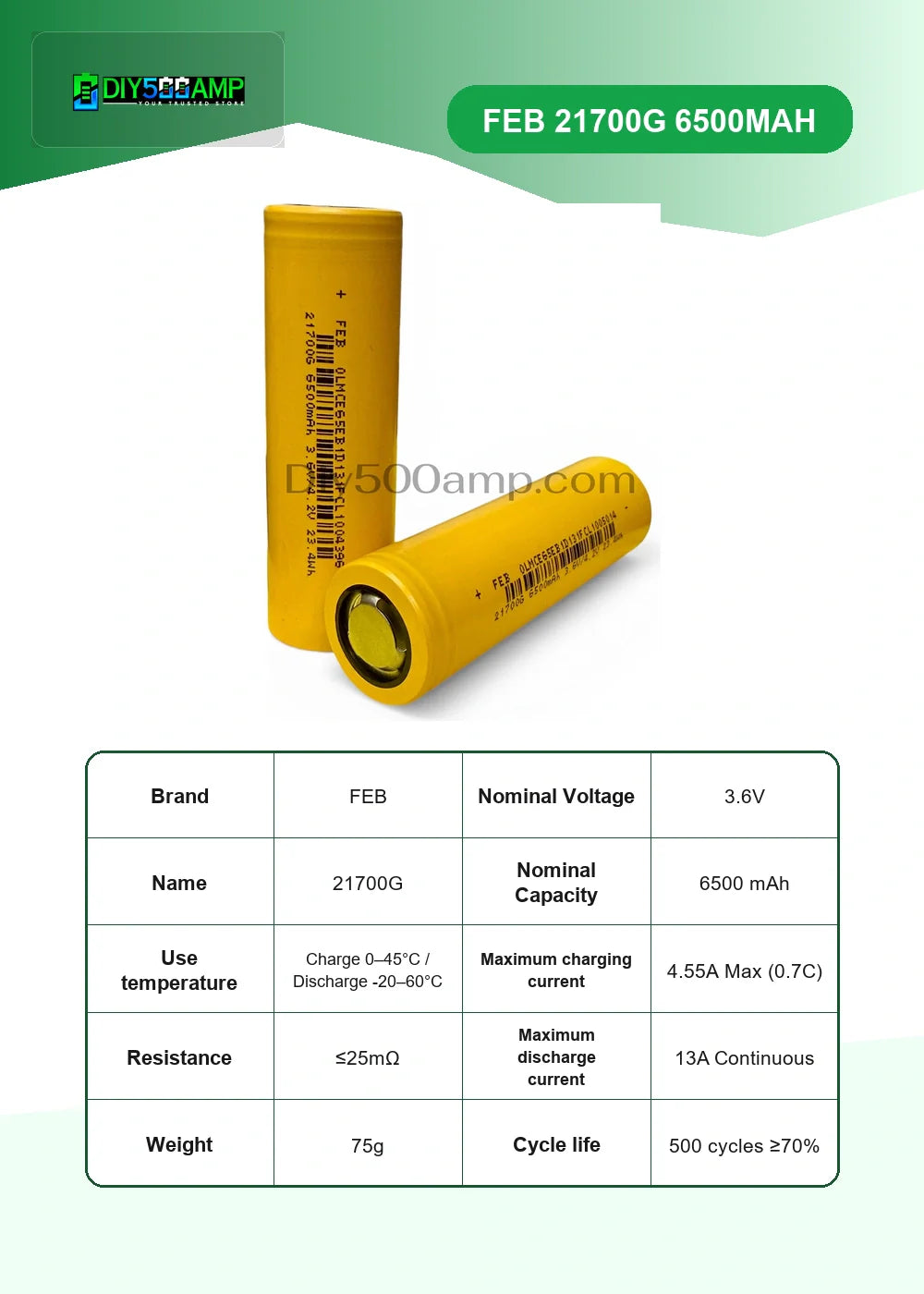

Technical Specifications

Engineering & Evaluation Use

This cell has been evaluated in engineering simulation environments used for battery design and system development.

With its high energy density and stable voltage characteristics, it is suitable for modeling real-world performance such as:

• Temperature behavior under load
• Voltage stability during discharge
• Runtime and efficiency in mission profiles

This highlights the cell’s strength as a high-energy, long-runtime solution for applications where efficiency and endurance are critical.

DIY500AMP Engineering Notes

This is a pure energy-focused cell. It is designed to deliver maximum capacity, not maximum current.

Real-world behavior:

• Excellent runtime compared to standard 21700 cells
• Stable voltage under moderate load
• Higher internal resistance compared to power cells

Best way to use this cell:

• 5A–8A → Ideal performance range
• 8A–12A → Upper working range
• 13A → Maximum limit (not recommended for continuous use)

DIY500AMP Tip: If your goal is runtime and efficiency, this is a solid choice. If your build requires high current, increase your parallel count or choose a high-discharge cell.

Why Buy From DIY500AMP?

At DIY500AMP, we don’t just copy datasheets. We analyze them, test when possible, and translate that information into real-world performance.

Most stores list only the maximum numbers from a datasheet. The problem is those numbers are often achieved under controlled lab conditions and don’t reflect how the cell will behave in an actual battery pack.

Our approach is different:

• We list the maximum rating based on manufacturer data and test reports
• We also provide real-world recommendations based on experience and testing

This gives you a much clearer picture of what to expect from the cell in your build.

Why this matters:

• Better performance in real applications
• Lower heat and stress on the cells
• Longer lifespan and improved reliability

Our goal is simple:
Give you honest information so you can build better, safer, and more efficient battery packs.

When you buy from DIY500AMP, you are not just buying a battery cell, you are getting guidance based on real-world use.

Safety Warning for Lithium Ion Battery Usage

Customers should have a clear understanding of lithium ion battery handling and safety before making a purchase. Lithium ion batteries are highly sensitive and may pose fire, burn, or explosion risks if improperly handled. Always charge batteries on fire resistant surfaces, and never leave them charging unattended.

By purchasing, you assume full responsibility for any injury, damage, or loss arising from the incorrect use or handling of lithium ion batteries or chargers. Compatibility with specific devices is not guaranteed. Only charge using a smart charger designed specifically for this battery type, and do not mix old or used batteries with new ones.

Important Usage Guidelines:

• Not for use in e-cigarettes or similar devices. Lithium ion batteries present a serious risk of injury, property damage, or death if improperly used.

• Risk of fire and explosion. Misuse can cause batteries to ignite, explode, or release harmful gases.

• Always use in a protected pack. Ensure batteries are used within intended specifications and supported by appropriate circuitry.

• Proper storage and handling. Store batteries in protective cases, away from metal items to prevent short circuits.

• Inspection prior to use. Do not use batteries with damaged wrappers, torn insulators, or visible damage.

• Follow manufacturer charging specifications. Avoid overcharging or over discharging, and never alter, dismantle, puncture, crush, or burn.

• Heat and water precautions. Do not expose batteries to high temperatures or any liquids.

• Assembly guidelines. Batteries should only be spot welded. Do not solder directly onto battery terminals.

Users are expected to have battery handling knowledge before purchasing. By using these batteries, you acknowledge that usage is solely at your own risk, and you take full responsibility for any resulting consequences.

For resellers: Please ensure all safety information is passed along to end users to promote safe handling and proper use.
