Description
The JBD Smart BMS is a high-performance battery management system designed for 10S-17S Li-ion (NMC) battery packs. It offers advanced protection features, Bluetooth connectivity, and real-time monitoring capabilities for enhanced battery safety and efficiency.
Features:
- Wide Voltage Range: Supports 10S-17S Li-ion (36V/48V) battery configurations
- 60A Continuous Discharge: Reliable current handling for demanding applications
- Smart Bluetooth Connectivity: Monitor and configure settings via the XiaoxiangElectric App (iOS & Android)

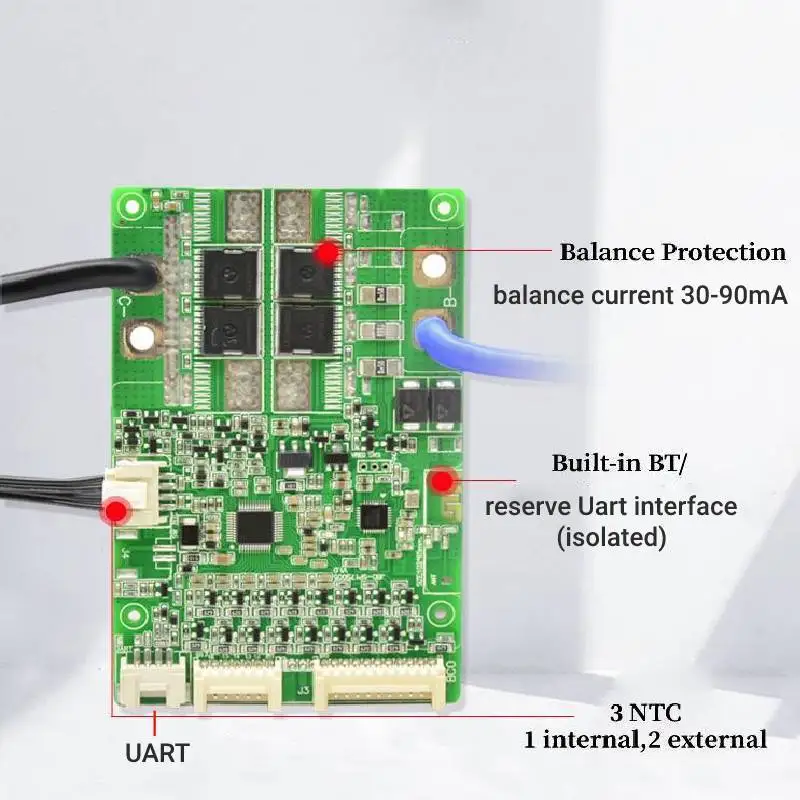

- Built-in Balancing: Ensures even charge distribution across all cells

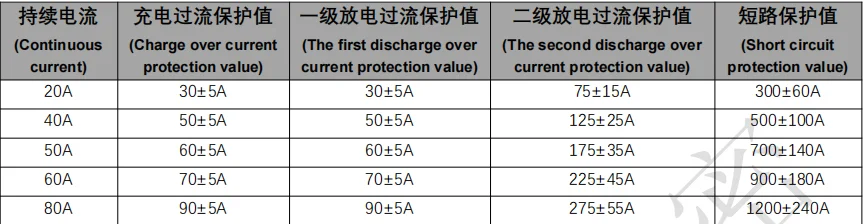

- Comprehensive Protection: Guards against overcharge, over-discharge, overcurrent, short circuit, and overheating
- UART Communication: Compatible with PC monitoring and adjustment software
- Compact Design: Measures 102mm × 65mm × 12mm for easy integration
Included in the Package:
- JBD Smart BMS 10S-17S 60A
- Balance wires
Compatibility:
- Suitable for Li-ion (NMC) battery packs
- Works with the XiaoxiangElectric App for remote monitoring and configuration
Additional Resources:
- Mobile App Download: XiaoxiangElectric App
- PC Software (UART Communication): Download JBD Tools
- Optional Accessories Available Separately
This BMS is ideal for DIY battery builders, e-bikes, energy storage systems, and other lithium battery applications that require smart monitoring and enhanced safety.

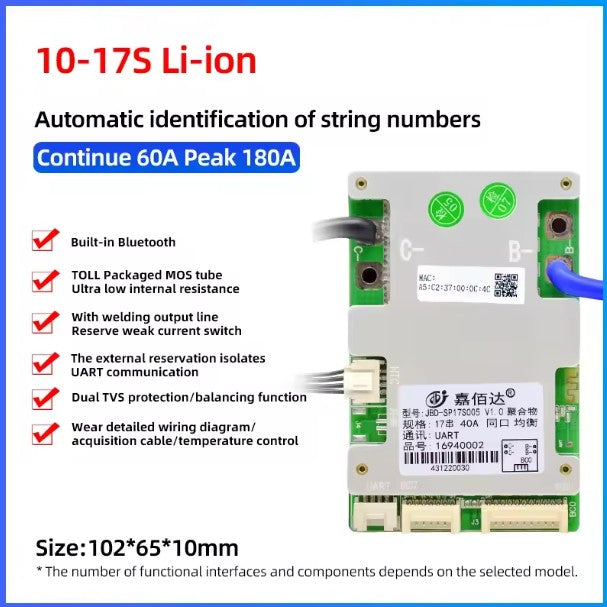

JBD XiaoxiangElectric APP Bluetooth Smart BMS SP17S005 Automatically Identify
Lithium Battery Strings From 10S To 17S.Battery Management System Support BT APP
and PC to Set and Monitor Datas,with Balance Function and Temp Sensor Function.
Product Introduction
Size:102*65*12mm
Applicable Battery Type: Lifepo4 & Li-ion Battery
Support automatically identify strings:10S-17S.
Package Included:BMS with built-in BT*Balance Wires

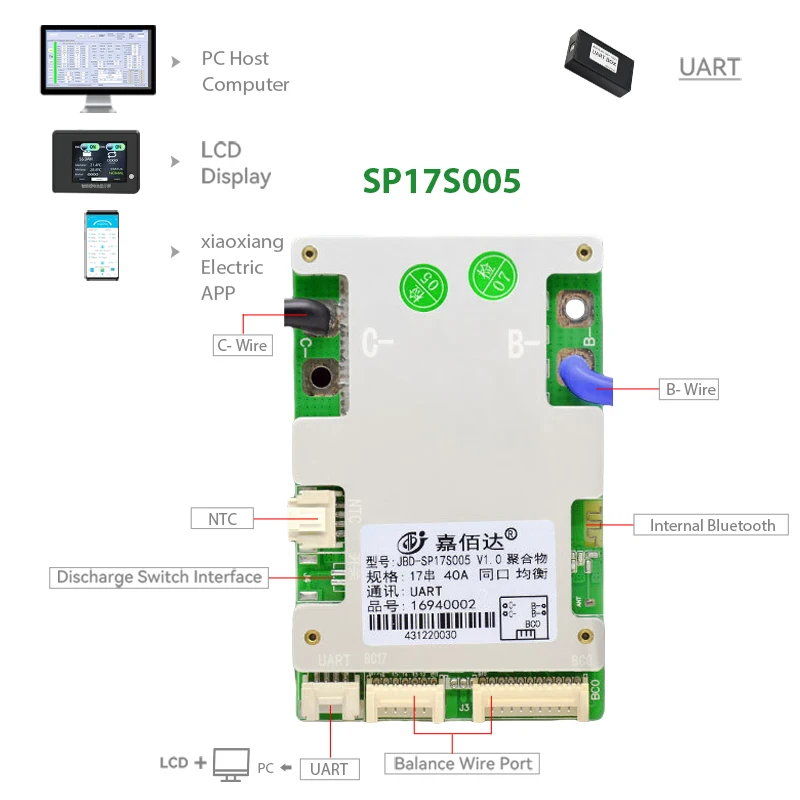

Function Introduction
(1)BT-APP in Phone-xiaoxiangElectric App:http://www.jiabaida.com/appdown/index.html
Support Both IOS version and Android version, can monitor and change the parameters.
(2)UART-JBD PC Tool Box-PC Tool Software: https://jbdtools.oss-cn-beijing.aliyuncs.com/packfile/JBDTools.zip
(3)UART LCD Displayer-Can monitor parameters on LCD display.
Attention
(1)All smart bms support xiaoxiangElectric App IOS and Android version to convert li-ion and lifepo4 parameters.
(2)All smart bms has BT and UART function.
(3)Smart BMS accessories needs buy separately:https://www.aliexpress.com/item/3256804529002284.html
(4)All UART communication can be converted to Canbus communication if needed,
only need to buy a canbus module converter separately.
