Description
Upgrade your battery management system with the JBD Smart BMS, a high-quality and feature-rich solution for lithium-ion battery packs. This 120A BMS is designed for 10S-17S Li-ion configurations, offering comprehensive protection, built-in Bluetooth, and UART communication for real-time monitoring and control.
Key Features:
-
Voltage Compatibility: Supports 10S, 11S, 12S, 13S, 14S, 15S, 16S, 17S Li-ion configurations.
-
Current Rating: 120A continuous discharge.
-
Built-in Bluetooth: Monitor battery status in real-time via the XiaoxiangElectric App (iOS & Android).
-
Protection Features:
-
Overcharge & over-discharge protection
-
Short circuit & overcurrent protection
-
Temperature monitoring with 2 external sensors
-
-
Balancing Function: Supports charge/static equalization with a balance current of 30-90mA.
-
Communication Interface: UART connection for PC monitoring & setup.
-
Connector Type: EC5 connector for easy integration.
-
Compact Design: 102mm x 65mm x 12mm.
Applications: Perfect for DIY battery packs in e-bikes, e-scooters, electric motorcycles, and other high-power applications requiring robust battery protection and monitoring.
Included in Package:
-
1x JBD Smart BMS 120A Li-ion
-
1x Balance Wire Harness
-
2x External Temperature Sensors
-
1x User Manual
Why Choose This BMS?
-
Reliable and proven protection for lithium battery packs.
-
Integrated smart monitoring and balancing to optimize performance.
-
Compact and lightweight, ideal for high-performance builds.
Compatibility:
-
Works with Li-ion (3.7V nominal) batteries.
-
Supports 36V and 48V Li-ion battery systems.

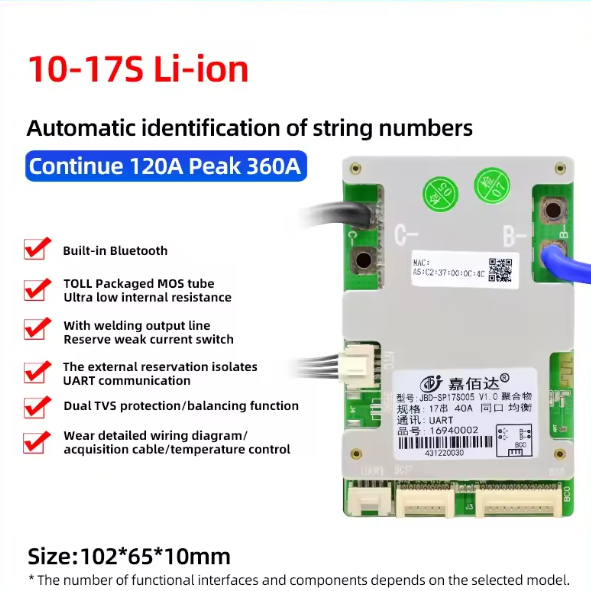

JBD XiaoxiangElectric APP Bluetooth Smart BMS SP17S005 Automatically Identify
Lithium Battery Strings From 10S To 17S.Battery Management System Support BT APP
and PC to Set and Monitor Datas,with Balance Function and Temp Sensor Function.
Product Introduction
Size:102*65*12mm
Applicable Battery Type: Lifepo4 & Li-ion Battery
Support automatically identify strings:10S-17S.
Package Included:BMS with built-in BT*Balance Wires
Function Introduction
(1)BT-APP in Phone-xiaoxiangElectric App:http://www.jiabaida.com/appdown/index.html
Support Both IOS version and Android version, can monitor and change the parameters.
(2)UART-JBD PC Tool Box-PC Tool Software: https://jbdtools.oss-cn-beijing.aliyuncs.com/packfile/JBDTools.zip
(3)UART LCD Displayer-Can monitor parameters on LCD display.
Attention
(1)All smart bms support xiaoxiangElectric App IOS and Android version to convert li-ion and lifepo4 parameters.
(2)All smart bms has BT and UART function.
(3)Smart BMS accessories needs buy separately:https://www.aliexpress.com/item/3256804529002284.html
(4)All UART communication can be converted to Canbus communication if needed,
only need to buy a canbus module converter separately.
