Description

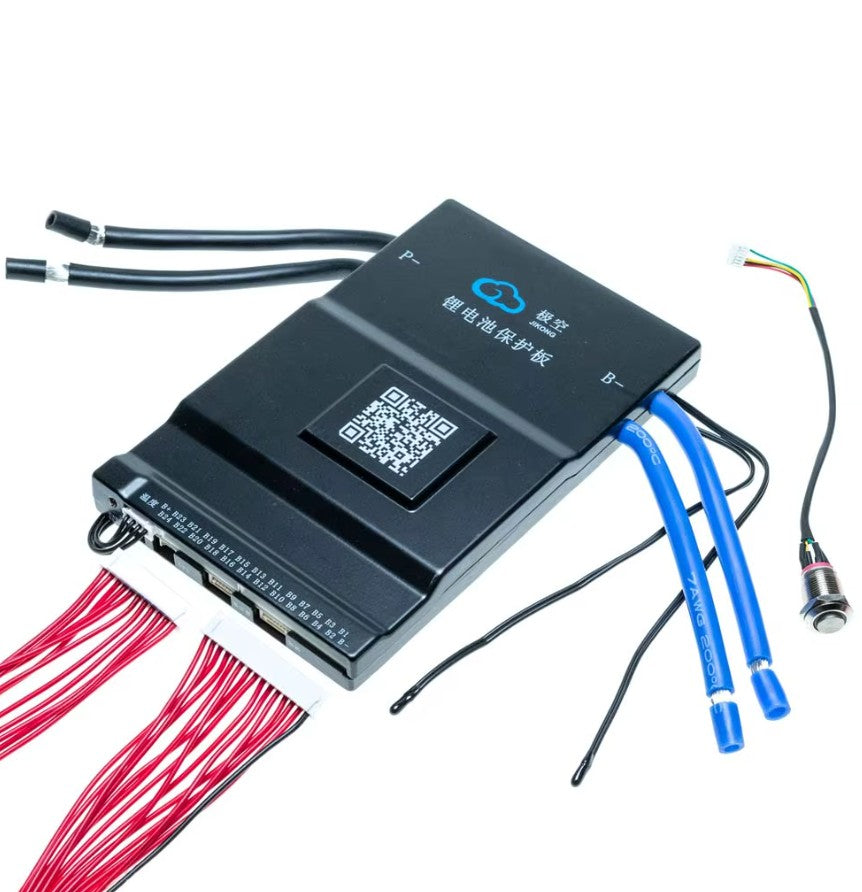

JK-B2A24S20P Smart Bluetooth Active Balance BMS – 24S 200A 2A Balancing for Li-Ion, LiFePO₄, and LTO
Optimize & Protect Your Battery System with Advanced Smart BMS Technology
The JK-B2A24S20P Smart BMS is a high-performance Battery Management System (BMS) designed for Li-Ion, LiFePO₄, and LTO battery packs from 4S to 24S configurations. With active balancing (2A), Bluetooth connectivity, and comprehensive protection features, this BMS ensures maximum efficiency, battery longevity, and system safety.
🔹 Key Features:
✅ Supports 8S-24S battery configurations – Works with LiFePO₄, Li-Ion, and LTO cells.
✅ 200A continuous current handling – Built for high-power applications.
✅ Active balancing (2A per cell) – Ensures even charge distribution for extended battery life.
✅ Built-in Bluetooth monitoring – View real-time battery status via the JK BMS app (iOS & Android).
✅ Advanced protection system – Includes overcharge, over-discharge, short circuit, and temperature protection.
✅ Supports RS485 & CAN communication – Ideal for integration into larger systems.
🔹 Technical Specifications:
-
Battery Compatibility:
- LiFePO₄: 8S-24S
- Li-Ion: 7S-24S
- LTO: 12S-24S
- Balancing Current: 2A active balancing
- Continuous Discharge Current: 200A
- Voltage Detection Accuracy: ±5mV per cell
- Operating Temperature: -20°C to 70°C
- Default Interfaces: NTC / RS485 / LCD
- Custom Interfaces: CAN / Heating
- Dimensions: 161.4mm x 101.4mm x 17.95mm
📦 Package Includes:
✔ 1 x JK-B2A24S20P Smart BMS
✔ 1 x Active Switch
✔ 1 x NTC Sensor
✔ 1 x Battery Cable
Why Choose DIY500AMP.COM?
🔹 Quality You Can Trust – We only stock high-performance BMS solutions.
🔹 Fast U.S. Shipping – No long waits from overseas vendors.
🔹 Expert Support – Need help with your battery setup? We’ve got you covered.
🔹 Satisfaction Guarantee – Shop with confidence.
Upgrade your battery management system today with the JK-B2A24S20P Smart BMS – perfect for DIY battery packs, e-bikes, solar storage, and high-power applications.
APP Download:
IOS : Search "JK BMS" in App Store
Android : Search "JK BMS" in Google Play
