For battery cells, review the product description for real-world current recommendations, testing notes, and application guidance. Manufacturer maximum ratings should be treated as limits, not the best target for long-term pack health.
Illustrative construction view with a 60XG cell wrap. The supplied cells follow your selected cell option. Wiring and final insulation are omitted.
Description
6S2P 21700 Tabless Drone / EDF Jet Battery Pack - 0.2mm / 0.3mm Copper Options
This custom-built 6S2P lithium-ion battery pack is assembled in-house by DIY500AMP for drones, EDF jets, RC aircraft, and high-power projects where voltage stability, current delivery, and clean construction matter.
This is not a basic Li-ion pack. Many common drone Li-ion packs are built with older non-tabless cells and standard nickel strip construction. This pack is positioned higher: premium high-current 21700 cell options, selected 0.2 mm or 0.3 mm T2 copper internal construction, and an in-house build focused on serious drone and EDF jet use.
Why This Pack Is Different
- Premium tabless cell options: selected for stronger current delivery, lower resistance behavior, and better performance under load.
- Selectable copper current path: 0.2 mm or 0.3 mm T2 copper, as selected in Copper and Cable Gauge.
- Built for drones and EDF jets: designed for applications where burst power, voltage stability, and pack quality matter.
- Built in-house by DIY500AMP: assembled, inspected, and supported from Florida by a battery-focused shop.
The selected copper thickness applies to the chosen cell model and cable gauge. Copper thickness alone does not establish a finished-pack current rating.
Top premium option: choose LinkData 65P when maximum runtime and premium performance matter most. In 6S2P format, this option gives approximately 13Ah and 281Wh.
Configuration
- Series / Parallel: 6S2P (12 cells)
- Nominal voltage: 21.6V
- Full charge voltage: 25.2V
- Recommended cut-off voltage: 15.0V
- Interconnect: selected 0.2 mm or 0.3 mm T2 copper
- Output leads: 10 AWG or 12 AWG silicone wire
Cell Options and Estimated Energy

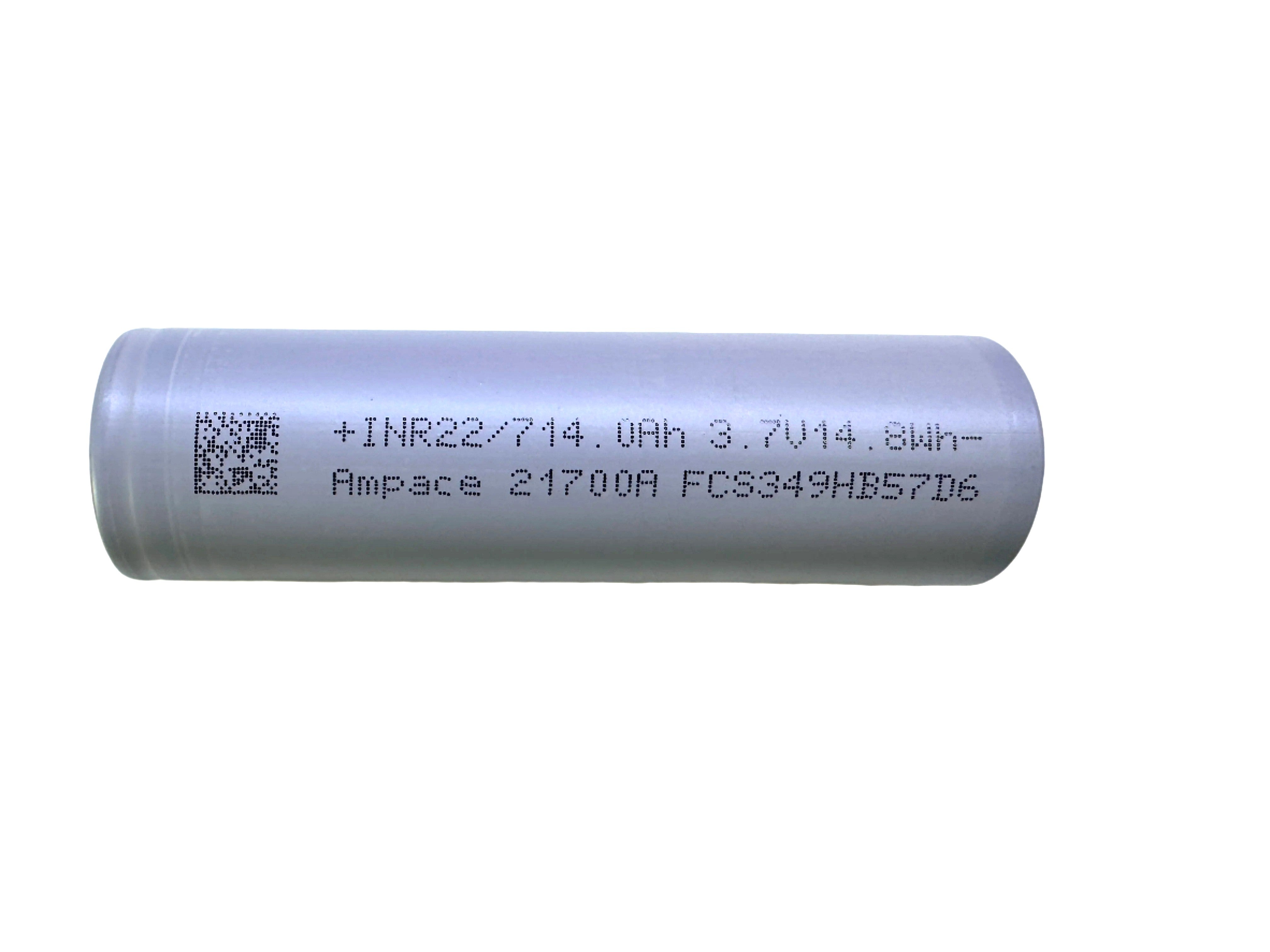

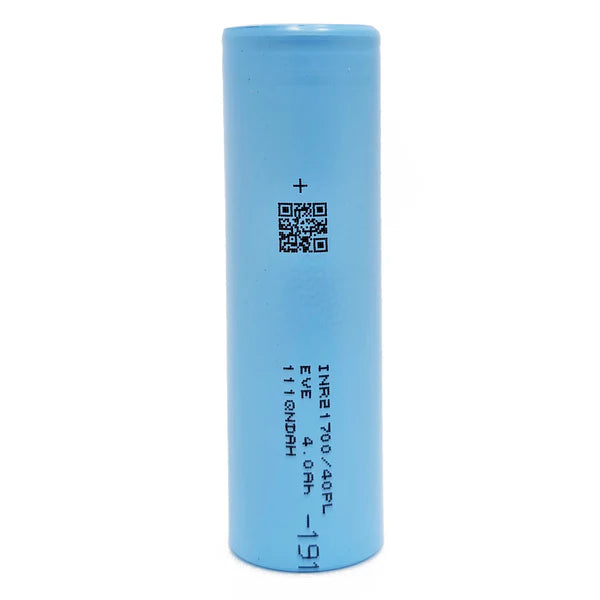

- EVE 40PL / Ampace JP40: about 8Ah / 173Wh

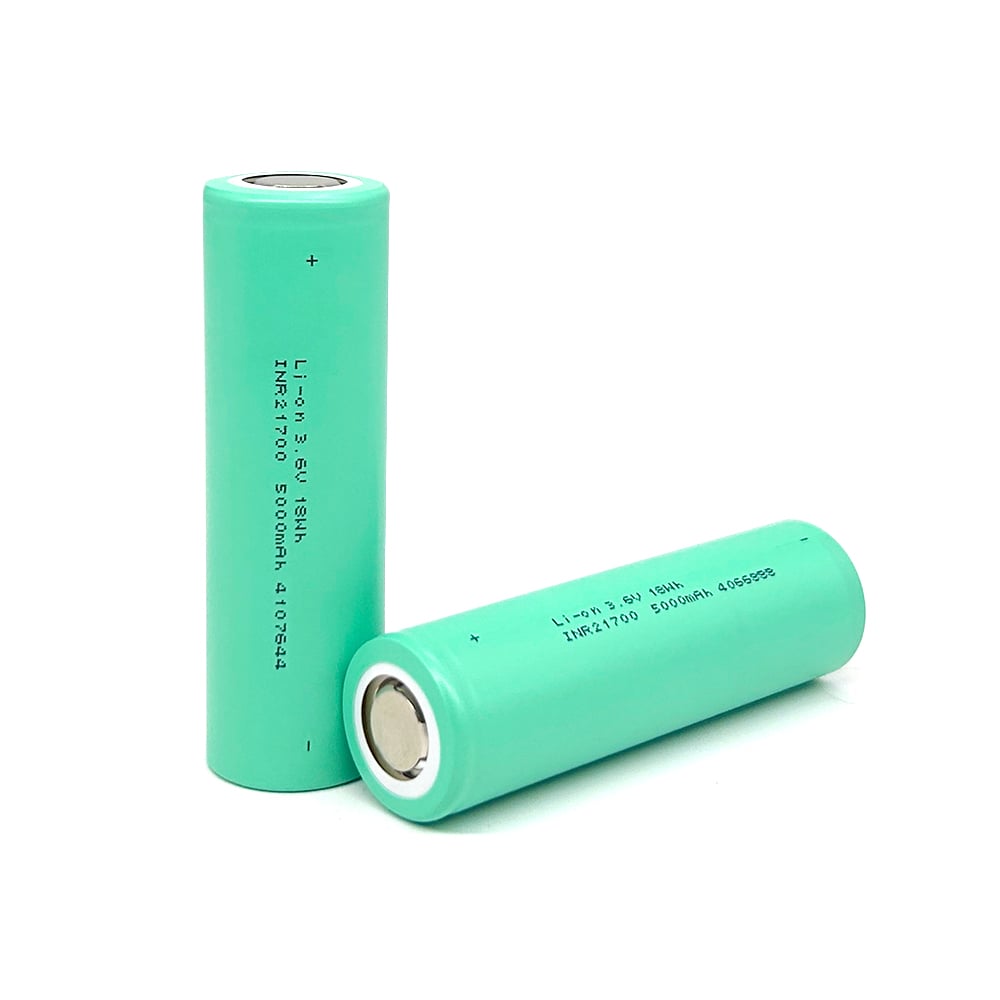

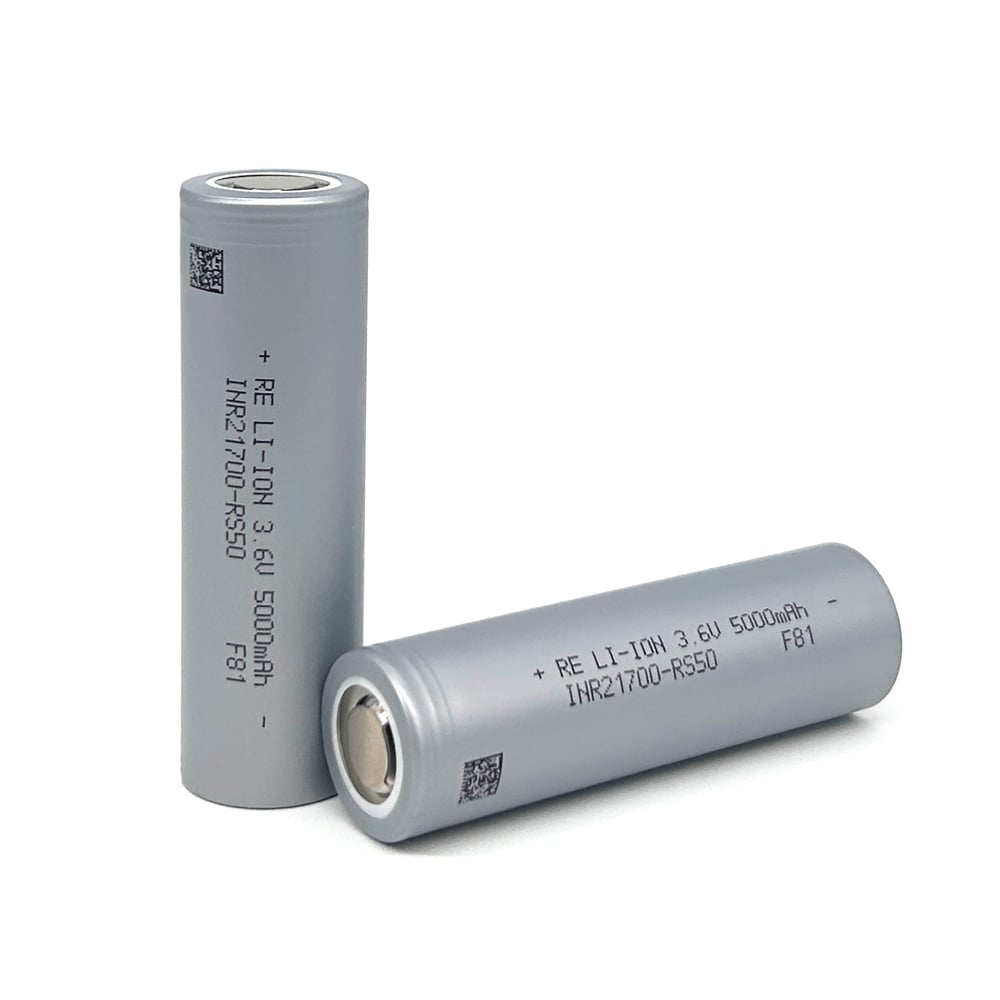

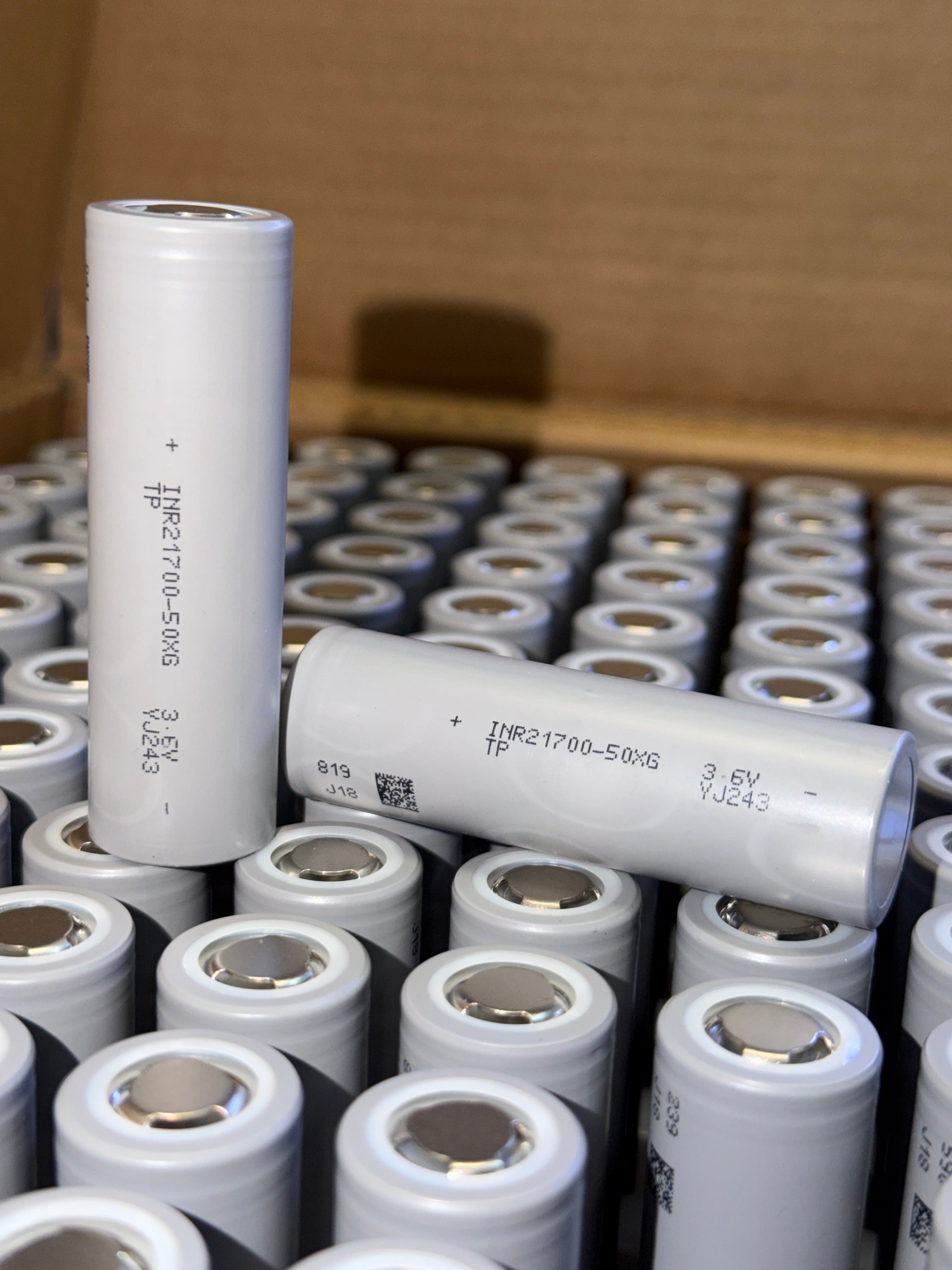

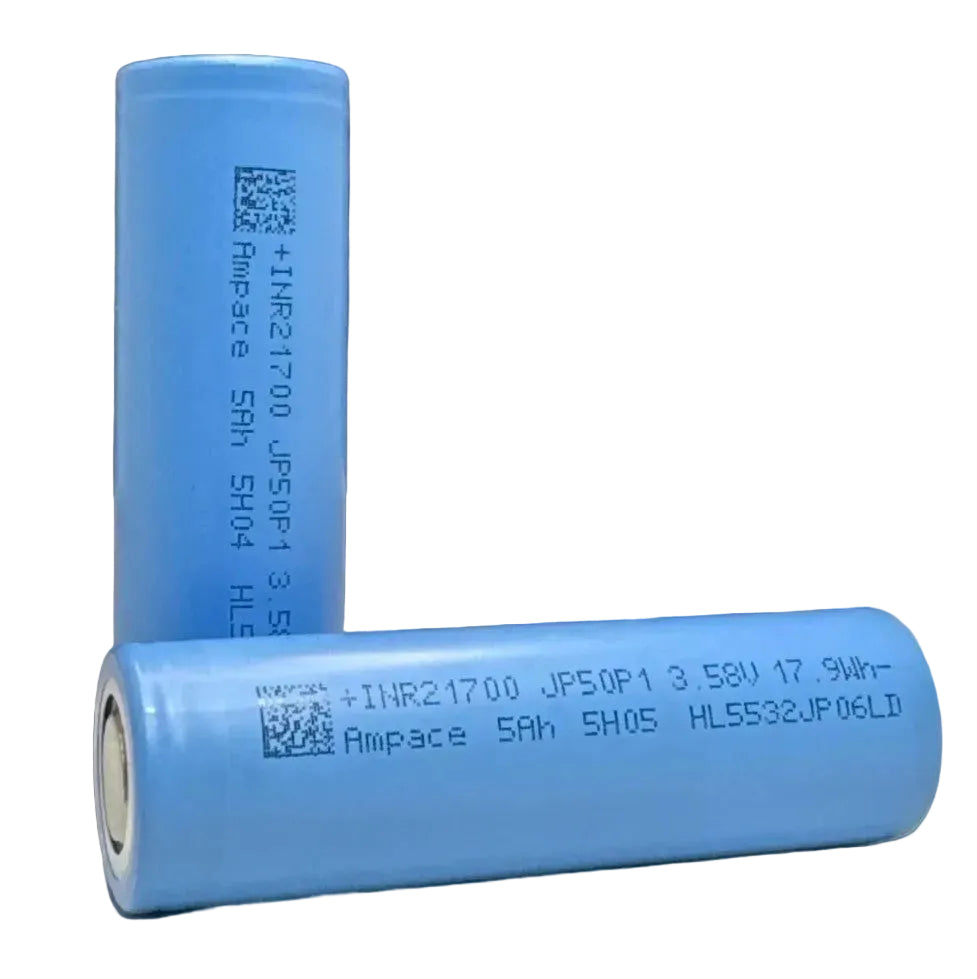

- EVE 50PL / TENPOWER 50XG / Reliance RS50 / Ampace JP50P1: about 10Ah / 216Wh
- LinkData 55P: about 11Ah / 238Wh
- TENPOWER 60XG: about 12Ah / 259.2Wh (calculated nominal energy)
- LinkData 65P: about 13Ah / 281Wh - top premium runtime option
Cable Gauge
- 12 AWG: lighter and more flexible.
- 10 AWG: recommended for higher current demand, aggressive throttle, and EDF jet setups.
Actual usable capacity depends on current draw, cutoff voltage, temperature, airflow, and the application.
TENPOWER 60XG Current and Protection Guidance
The manufacturer's cell specification lists 40A continuous per cell and 60A per cell only with a 75°C temperature cutoff. These are cell limits under stated conditions, not finished-pack ratings or recommended long-term operating targets. A finished-pack current rating cannot be established by simply multiplying cell limits.
Validate current sharing, welds, copper geometry, leads, connectors, fusing, BMS or system protection, and cooling under the actual load and duty cycle. Maintain current and thermal headroom. The 60A cell condition requires temperature monitoring and cutoff.
60XG cutoff guidance: the 15.0V value listed above is the sum of the six cells' 2.5V discharge limits, not a recommended routine flight endpoint for this option. Use an earlier operating cutoff appropriate to the application and monitor individual series-group voltages. Use a compatible 6S lithium-ion balance charger and appropriate overcharge, over-discharge, over-current, short-circuit, and thermal protection; a balance lead does not provide these protections.
View TENPOWER 60XG cell specifications and datasheet-range BatteryRealData results.

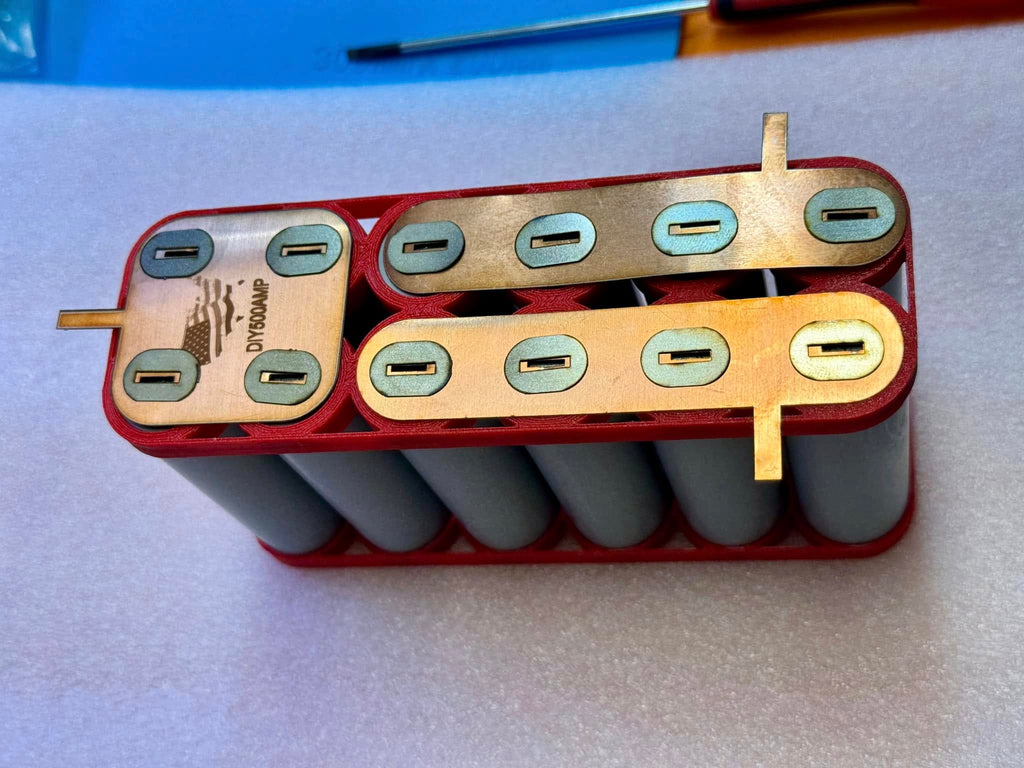

Construction Details
- Laser-cut T2 pure copper busbars
- 0.2 mm or 0.3 mm copper internal interconnect, as selected
- Professionally spot welded and inspected by DIY500AMP
- Built in-house and shipped from Florida, USA
Included
- 6S balance lead
- 10 AWG or 12 AWG silicone output leads
- Bare wire output unless a connector is requested
Optional Add-On
XT90 connector installed: +$7 per pack. XT60 connector installed: +$5 per pack (12 AWG cables required). Select one connector option above, or leave both unchecked for bare output leads.
Recommended Applications
- RC EDF jets
- High-performance drones
- High-power RC aircraft
- Custom high-current 6S applications
Production Time
This is a custom-built battery pack made in-house. Build time depends on order volume, selected cell availability, and connector requirements.
Safety Warning for Lithium-Ion Battery Usage
Lithium-ion battery packs can pose fire, burn, or explosion risks if improperly handled. Always charge on fire-resistant surfaces and never leave charging unattended. Use only proper chargers and protected systems. Do not short, puncture, crush, overcharge, over-discharge, expose to water, or expose to excessive heat. Use at your own risk.
Orders ship from Florida when inventory is available. Lithium-ion cells require proper handling, protected packs, correct chargers, and safe storage. Do not solder directly to battery terminals.
Payment and Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Illustrative construction view with a 60XG cell wrap. The supplied cells follow your selected cell option. Wiring and final insulation are omitted.
Pack construction and care
Current CAD construction references, inspection and care guidance. Confirm the supplied pack, cell choice, polarity and protection requirements before use.
Open pack construction and care guide (PDF) R
I’m able to fly my Freewing F-22 90mm for over 10 minutes with this pack! With my previous LiPos, I was getting around 3½ minutes of flight time. The difference is incredible.
The pack has performed exceptionally well, and the service was great. I was impressed enough that I’ve already started purchasing more packs for the rest of my hangar. Highly recommended!
Hi Chase! We're thrilled to hear that our battery pack made such a difference in your flights. Thanks for your kind words and for recommending us—happy flying with your entire hangar!
D

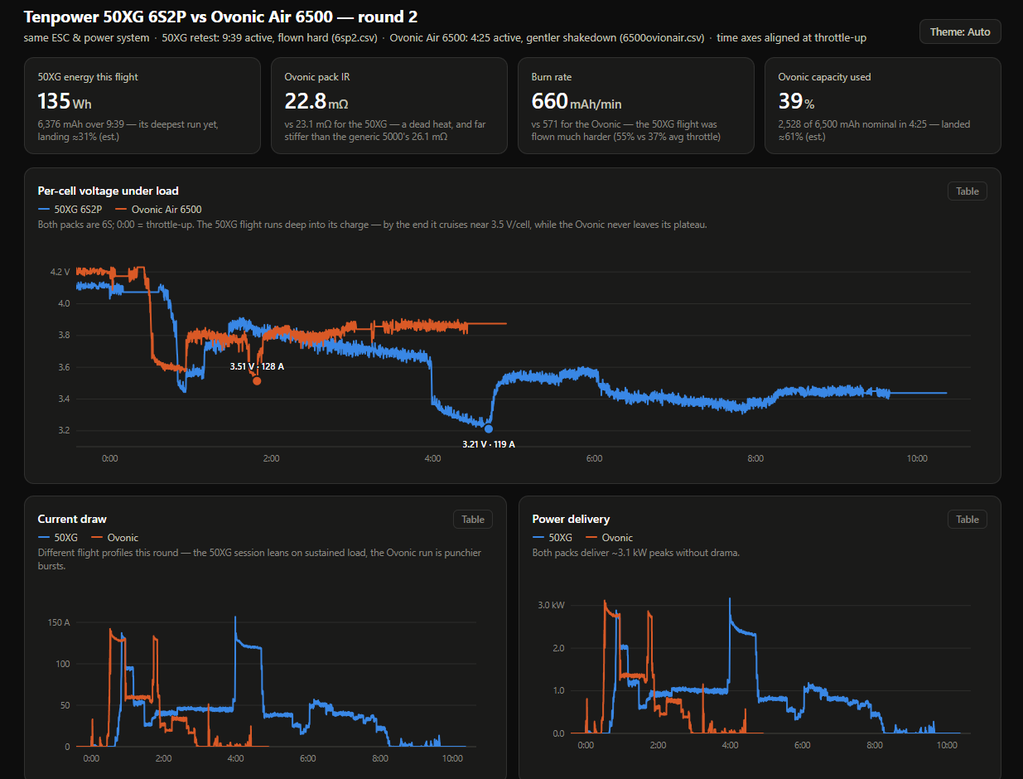

Awesome Flight Time With less heat build up than Lipos. Avanti EDF Test Results
